QFP TQFP Surface Mount Component to Breadboard Adapters

These adapters consist of a printed circuit board with SMT pads connected to a pins spaced on 0.1 inch centers for mounting on standard prototype breadboards. All pins and pads are wired one to one.

32 Pads 40 Pads 44 Pads 48 Pads 52 Pads 64 Pads 80 Pads 100 Pads
112 Pads 120 Pads 128 Pads 144 Pads 160 Pads 176 Pads 208 Pads 216 Pads


Part Number   Multiple IC Pads    Price Shopping Cart
BBA-QFP-32-64 Multiple QFN chip pads to breadboard adapter. Supports 32, 44, 64 QFP pads at 0.8mm pitch, from 8.0mm to 19.0mm Tip to tip.
  • 2.54 mm, (0.10 inch) Breadboard hole pattern
  • 0.8mm Pitch for 32, or 44 QFP SMT pads
  • 8.0mm to 19.0mm Tip to tip
  • Size 1.6 x 1.6 inches
$28.00

Part Number Click Enlarge Description    Price Shopping Cart
YS32QFS20-UBI-SMT 32 pad SMT, 0.5mm Pitch, TQFP breadboarding adapter with wireing holes 50 mils apart on the periphery. Can be used with individual wires, common ribbon cable, or header pins.
  • TQFP Package type
  • 32 Pins
  • 0.5mm Pitch device
  • Periphery wiring holes are 50 mils apart
$13.00
YS32QFS31-UBI-SMT 32 pad SMT, 0.8mm Pitch, TQFP breadboarding adapter with wireing holes 50 mils apart on the periphery. Can be used with individual wires, common ribbon cable, or header pins.
  • TQFP Package type
  • 32 Pins
  • 0.8mm Pitch device
  • Periphery wiring holes are 50 mils apart
$13.00
32QFS20-D6-SMT-S 32 pad TQFP only to DIP breadboard adapter converts SMT package with pitch of 0.5mm to two 600-mil DIP pin rows.
  • TQFP Package type Only
  • 32 Pins
  • 0.5mm Pitch device
  • DIP rows are 600 mills apart
$16.00
32QFS31-D6-SMT-S 32 pad TQFP only to DIP breadboard adapter converts SMT package with pitch of 0.8mm to two 600-mil DIP pin rows.
  • TQFP Package type only
  • 32 Pins
  • 0.8mm Pitch device
  • DIP rows are 600 mills apart
$12.00

Part Number Click Enlarge Description    Price Shopping Cart
40QFS20-D6-SMT-S 40 pad QFP TQFP to DIP breadboard adapter converts SMT package with pitch of 0.5mm to two 600-mil DIP pin rows.
  • TQFP Package type Only
  • 40 Pins
  • 0.5mm Pitch device
  • DIP rows are 600 mills apart
$16.00

Part Number Click Enlarge Description    Price Shopping Cart
YS44QFS31-UBI-SMT 44 pad SMT, 0.8mm Pitch, TQFP breadboarding adapter with wireing holes 50 mils apart on the periphery. Can be used with individual wires, common ribbon cable, or header pins.
  • TQFP Package type
  • 44 Pins
  • 0.8mm Pitch device
  • Periphery wiring holes are 50 mils apart
$16.00
YS44QFS39-UBI-SMT 44 pad SMT, 1.0mm Pitch, TQFP breadboarding adapter with wireing holes 50 mils apart on the periphery. Can be used with individual wires, common ribbon cable, or header pins.
  • TQFP Package type
  • 44 Pins
  • 1.0mm Pitch device
  • Periphery wiring holes are 50 mils apart
$16.00
44QFS31-D6-SMT-S 44 pad QFP TQFP to DIP breadboard adapter converts SMT package with pitch of 0.8mm to two 600-mil DIP pin rows.
  • QFP Package type
  • Tip to Tip 10.25mm to 13.3mm compatible
  • 44 Pins
  • 0.8mm Pitch device
  • DIP rows are 600 mills apart
$17.00

Part Number Click Enlarge Description    Price Shopping Cart
YS48QFN26-52UBI-SMT 48 pad SMT, 0.65mm Pitch, QFN breadboarding adapter with wireing holes 50 mils apart on the periphery. Can be used with individual wires, common ribbon cable, or header pins.
  • TQFP Package type
  • 48 Pads
  • 0.65mm Pitch device
  • Periphery wiring holes are 50 mils apart
$18.00
YS48QFS20-UBI-SMT 48 pad SMT, 0.5mm Pitch, TQFP breadboarding adapter with wireing holes 50 mils apart on the periphery. Can be used with individual wires, common ribbon cable, or header pins.
  • TQFP Package type
  • 48 Pins
  • 0.5mm Pitch device
  • Periphery wiring holes are 50 mils apart
$18.00

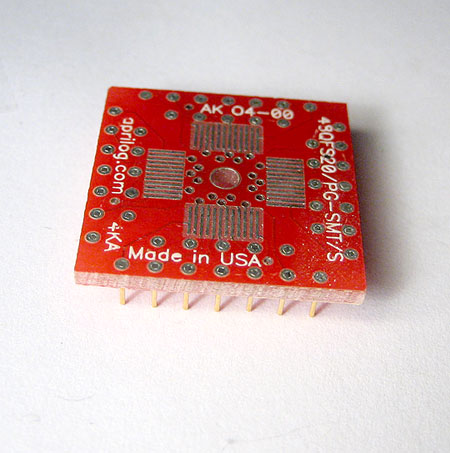

48QFS20-PG-SMT-S 48 pad SMT, 0.5mm Pitch, TQFP breadboarding adapter with wireing holes 100 mils apart for standard breadboard pattern.
  • TQFP Package type
  • 48 Pins located on 100 mil centers
  • 0.5mm Pitch device
  • Pads are 3.0mm long
  • Distance beteen the inside edges of the pad is 7.1mm
  • Periphery wiring holes are 50 mils apart
$18.00
48QFS20-D6-SMT-S 48 pad QFP TQFP Note This adapter is obsolete and has been replaced. The new adapter accepts TQFP and QFN packages. Find the new adaper, part number 48QFN20-D6-SMT-S, on QFN MLF Breadboard adapter page.
  • TQFP QFP QFN Package type
  • 48 Pins
  • 0.5mm Pitch device
  • DIP rows are 600 mills apart


Part Number Click Enlarge Description    Price Shopping Cart
YS52QFS26-UBI-SMT 52 pad SMT, 0.65mm Pitch, TQFP breadboarding adapter with wireing holes 50 mils apart on the periphery. Can be used with individual wires, common ribbon cable, or header pins.
  • TQFP Package type
  • 52 Pins
  • 0.65mm Pitch device
  • Periphery wiring holes are 50 mils apart
$20.00
52QFS26-D9-SMT-S 52 pad QFP only to DIP breadboard adapter converts SMT package with pitch of 0.65mm to two 900-mil DIP pin rows.
  • QFP Package type Only
  • 52 Pins
  • 0.65mm Pitch device
  • DIP rows are 900 mills apart
$19.50

Part Number Click Enlarge Description
YS64QFS20-UBI-SMT 64 pad SMT, 0.5mm Pitch, TQFP breadboarding adapter with wireing holes 50 mils apart on the periphery. Can be used with individual wires, common ribbon cable, or header pins.
  • TQFP Package type
  • 64 Pins
  • 0.5mm Pitch device
  • Periphery wiring holes are 50 mils apart
$24.00
YS64QFS31-UBI-SMT 64 pad SMT, 0.8mm Pitch, TQFP breadboarding adapter with wireing holes 50 mils apart on the periphery. Can be used with individual wires, common ribbon cable, or header pins.
  • TQFP Package type
  • 64 Pins
  • 0.8mm Pitch device
  • Periphery wiring holes are 50 mils apart
$24.00
YS64QFR39-UBI-SMT   64 pad SMT, 1.0mm Pitch, TQFP breadboarding adapter with wireing holes 50 mils apart on the periphery. Can be used with individual wires, common ribbon cable, or header pins.
  • TQFP Package type
  • 64 Pins
  • 1.0mm Pitch device
  • Periphery wiring holes are 50 mils apart
$24.00
64QFS20-D9-SMT-S 64 pad TQFP only to DIP breadboard adapter converts SMT package with pitch of 0.5mm to two 900-mil DIP pin rows.
  • TQFP Package type Only
  • 64 Pins
  • 0.5mm Pitch device
  • DIP rows are 900 mills apart
$24.00
64QFS16-PG-SMT-S 64 pad QFP SMT breadboard adapter converts SMT package with pitch of 0.5mm to 0.1 inch pin grid array.
  • Square QFP Package type Only
  • 64 Pins
  • 0.4mm (0.016 inch)Pitch device
  • 7.12mm (0.28 inch) max body width
  • 9.2mm (0.36 inch) tip to tip
$24.00
64QFS20-PG-SMT-S 64 pad QFP SMT breadboard adapter converts SMT package with pitch of 0.5mm to 0.1 inch pin grid array.
  • Square QFP Package type Only
  • 64 Pins
  • 0.5mm Pitch device
$24.00
64QFS31-D9-SMT-S 64 pad QFP only to DIP breadboard adapter converts SMT package with pitch of 0.8mm to two 900-mil DIP pin rows.
  • QFP Package type Only
  • 64 Pins
  • 0.8mm Pitch device
  • DIP rows are 900 mills apart
$24.00
64QFS31-PG-SMT-S 64 pad QFP SMT breadboard adapter converts SMT package with pitch of 0.8mm to 0.1 inch pin grid array.
  • Square QFP Package type Only
  • 64 Pins
  • 0.8mm Pitch device
$24.00

Part Number Click Enlarge Description    Price Shopping Cart
80QFS16-PG-SMT-S 180 pad SMT, 0.4mm Pitch, TQFP breadboarding adapter.
  • TQFP Package type
  • 80 Pads
  • 11.94mm to 12.57mm (0.420 to 0.495 inch) tip to tip devices
  • 0.4mm (0.016 inch) Pitch device
$26.00
YS80QFS20-UBI-SMT 80 pad SMT, 0.5mm Pitch, TQFP breadboarding adapter with wireing holes 50 mils apart on the periphery. Can be used with individual wires, common ribbon cable, or header pins.
  • TQFP Package type
  • 80 Pins
  • 0.5mm Pitch device
  • Periphery wiring holes are 50 mils apart
$26.00
YS80QFS26-UBI-SMT 80 pad SMT, 0.65mm Pitch, TQFP breadboarding adapter with wireing holes 50 mils apart on the periphery. Can be used with individual wires, common ribbon cable, or header pins.
  • TQFP Package type
  • 80 Pins
  • 0.65mm Pitch device
  • Periphery wiring holes are 50 mils apart
$26.00
YS80QFR31-UBI-SMT 80 pad SMT, 0.8mm Pitch, TQFP breadboarding adapter with wireing holes 50 mils apart on the periphery. Can be used with individual wires, common ribbon cable, or header pins.
  • TQFP Rectangular Package type
  • 80 Pins
  • 0.8mm Pitch device
  • Periphery wiring holes are 50 mils apart
$26.00
80QFR31-PG-SMT-S 80 pad QFP SMT breadboard adapter converts SMT package with pitch of 0.8mm to 0.1 inch pin grid array.
  • Rectangular QFP Package type Only
  • 80 Pins
  • 0.8mm Pitch device
$24.00
80QFS20-PG-SMT-S 80 pad TQFP SMT breadboard adapter converts SMT package with pitch of 0.5mm to 0.1 inch pin grid array.
  • Square TQFP Package type Only
  • 80 Pins
  • 0.5mm Pitch device
$24.00
80QFS26-PG-SMT-S 80 pad QFP SMT breadboard adapter converts SMT package with pitch of 0.65mm to 0.1 inch pin grid array.
  • Square QFP Package type Only
  • 80 Pins
  • 0.65mm Pitch device
$24.00

Part Number Click Enlarge Description    Price Shopping Cart
100QFS16-PG14-SMT-S 100 pad SMT, 0.4mm Pitch, TQFP breadboarding adapter.
  • TQFP Package type
  • 100 Pads
  • 12.95mm to 14.35mm (0.510 to 0.565 inch) tip to tip devices
  • 0.4mm (0.016 inch) Pitch device
$29.00
YS100QFS20-UBI-SMT 100 pad SMT, 0.5mm Pitch, TQFP breadboarding adapter with wireing holes 50 mils apart on the periphery. Can be used with individual wires, common ribbon cable, or header pins.
  • TQFP Package type
  • 100 Pins
  • 0.5mm Pitch device
  • Periphery wiring holes are 50 mils apart
$29.00
YS100QFS25-UBI-SMT 100 pad SMT, 25 mil Pitch, TQFP breadboarding adapter with wireing holes 50 mils apart on the periphery. Can be used with individual wires, common ribbon cable, or header pins.
  • TQFP Package type
  • 100 Pins
  • 25 mil Pitch device
  • Periphery wiring holes are 50 mils apart
$29.00
YS100QFR26-UBI-SMT 100 pad SMT, 0.65mm Pitch, TQFP breadboarding adapter with wireing holes 50 mils apart on the periphery. Can be used with individual wires, common ribbon cable, or header pins.
  • TQFP Rectangular Package type
  • 100 Pins
  • 0.65mm Pitch device
  • Periphery wiring holes are 50 mils apart
$29.00
100QFR26-PG-SMT-S 100 pad QFP SMT breadboard adapter converts SMT package with pitch of 0.65mm to 0.1 inch pin grid array.
  • Rectangular QFP Package type
  • 100 Pins
  • Fits 23.8mm x 17.8mm Tip to Tip IC leads
  • IC body size 20.0mm x 140.0mm
  • 0.65mm Pitch device
  • Bottom pins on 0.10 inch centers for standard proto board.
  • Fits Toshiba Z84C015, 73M2910, Intel 80C196, 80C296, Rabbit, Z380 Microprocessors
$27.00
100QFS16-PG-SMT-S 100 pad QFP SMT breadboard adapter converts SMT package with pitch of 0.4mm to 0.1 inch pin grid array.
  • Square QFP Package type
  • 100 Pins
  • 0.4mm Pitch device
  • Package Tip to Tip 14.0mm
  • 0.1 inch breadboard pin grid
$27.00
100QFS20-PG-SMT-S 100 pad QFP SMT breadboard adapter converts SMT package with pitch of 0.5mm to 0.1 inch pin grid array.
  • Square QFP Package type
  • Package Tip to Tip 16.0mm
  • 100 Pins
  • 0.5mm Pitch device
  • Compatible with many microprocessors and microcontrollers
$27.00

Part Number Click Enlarge Description    Price Shopping Cart
YS112QFS26-UBI-SMT 112 pad SMT, 0.65mm Pitch, TQFP breadboarding adapter with wireing holes 50 mils apart on the periphery. Can be used with individual wires, common ribbon cable, or header pins.
  • TQFP Rectangular Package type
  • 112 Pins
  • 0.65mm Pitch device
  • Periphery wiring holes are 50 mils apart
$29.00
112QFS26-PG-SMT-S 112 pad QFP SMT breadboard adapter converts SMT package with pitch of 0.65mm to 0.1 inch pin grid array.
  • Square QFP Package type
  • 112 Pins
  • 0.65mm Pitch device
$29.50

Part Number Click Enlarge Description    Price Shopping Cart
YS120QFS20-UBI-SMT 120 pad SMT, 0.5mm Pitch, TQFP breadboarding adapter with wireing holes 50 mils apart on the periphery. Can be used with individual wires, common ribbon cable, or header pins.
  • TQFP Package type
  • 120 Pins
  • 0.5mm Pitch device
  • Periphery wiring holes are 50 mils apart
$35.00
YS120QFS31-UBI-SMT 120 pad SMT, 0.8mm Pitch, TQFP breadboarding adapter with wireing holes 50 mils apart on the periphery. Can be used with individual wires, common ribbon cable, or header pins.
  • TQFP Package type
  • 120 Pins
  • 0.8mm Pitch device
  • Periphery wiring holes are 50 mils apart
$35.00
YS120QFR20-UBI-SMT 120 pad SMT, 0.5mm Pitch, Rectangular TQFP breadboarding adapter with wireing holes 50 mils apart on the periphery. Can be used with individual wires, common ribbon cable, or header pins.
  • Rectangular TQFP Package type
  • 120 Pins
  • 0.5mm Pitch device
  • Periphery wiring holes are 50 mils apart
$35.00
120QFS16-PG-SMT-S 0.4mm120 Pad QFP SMT devices are supported using the 128 pad breadboard adapter. It converts SMT package with pitch of 0.4mm to 0.1 inch pin grid array.
  • Square QFP Package type
  • 128 Pins that supports 120 pin parts
  • 0.4mm Pitch device
$31.50
120QFS20-PG-SMT-S 120 pad QFP SMT breadboard adapter converts SMT package with pitch of 0.5mm to 0.1 inch pin grid array.
  • Square QFP Package type
  • 120 Pins
  • 0.5mm Pitch device
$31.50

Part Number Click Enlarge Description    Price Shopping Cart
128QFS16-PG-SMT-S 128 pad QFP SMT breadboard adapter converts SMT package with pitch of 0.4mm to 0.1 inch pin grid array.
  • Square QFP Package type
  • 128 Pins
  • 0.4mm Pitch device
$31.50
128QFS16-QF-SD 128 pad QSquare QFP connection adapterthat connects 128 pins to 16.5mm square, 0.4mm pitch PCB pads.
  • Square QFP Package type
  • 128 Pins
  • 16.5mm square
  • 0.4mm Pitch device
  • Includes surface mount base mounting service.
$523.00

Part Number Click Enlarge Description    Price Shopping Cart
144QFS16-PG-SMT-S 144 pad SMT, 0.4mm Pitch, TQFP breadboarding adapter.
  • TQFP Package type
  • 144 Pads
  • 16.38mm to 18.00mm (0.645 to 0.710 inch) tip to tip devices
  • 0.4mm (0.016 inch) Pitch device
$48.00
144QFS20-PG-SMT-S 144 pad QFP SMT breadboard adapter converts SMT package with pitch of 0.5mm to 0.1 inch pin grid array.
  • Square QFP Package type
  • 144 Pins
  • 0.5mm Pitch device
$48.OO
144QFS20-PG-SMT-NQ 144 pad QFP SMT breadboard adapter converts Tokyo Electech NQPACK 144 surface mount socket base to to 0.1 inch proto-board pin grid.
  • Square QFP Package type
  • Pads fit part no. NQPACK144SD Tokyo Electec surface mount base that has a chip socket on top.
  • 144 Pins
  • 22.05mm (0.868 inch) tip to tip
  • 0.5mm Pitch device or SMT socket
$48.OO
144QFS26-PG-SMT-S 144 pad QFP SMT breadboard adapter converts SMT package with pitch of 0.65mm to 0.1 inch pin grid array.
  • Square QFP Package type
  • 128 Pins
  • 0.65mm Pitch device
$48.00

Part Number Click Enlarge Description    Price Shopping Cart
160QFS26-PG-SMT-S 160 pad QFP SMT breadboard adapter converts SMT package with pitch of 0.65mm to 0.1 inch pin grid array.
  • Square QFP Package type
  • 160 Pins
  • 0.65mm Pitch device
$42.00

Part Number Click Enlarge Description    Price Shopping Cart
168QFS26-PG-SMT-S 168 pad QFP SMT breadboard adapter converts SMT package with pitch of 0.65mm to 0.1 inch pin grid array.
  • Square QFP Package type
  • 168 Pins
  • 0.65mm Pitch device
$43.50

Part Number Click Enlarge Description    Price Shopping Cart
176QFS16-PG-SMT-S 176 pad QFP SMT breadboard adapter converts SMT package with pitch of 0.4mm to 0.1 inch pin grid array. 176 pad QFP SMT breadboard adapter converts SMT package with pitch of 0.4mm to 0.1 inch pin grid array.
  • Square QFP Package type
  • 176 Pins
  • 0.4mm Pitch device
$46.50
176QFS20-PG-SMT-S 176 pad QFP SMT breadboard adapter converts SMT package with pitch of 0.5mm to 0.1 inch pin grid array.
  • Square QFP Package type
  • 176 Pins
  • 0.5mm Pitch device
$46.50

Part Number Click Enlarge Description    Price Shopping Cart
208QFS20-PG-SMT-S 208 pad QFP SMT breadboard adapter converts SMT package with pitch of 0.5mm to 0.1 inch pin grid array.
  • Square QFP Package type
  • 208 Pins
  • 0.5mm Pitch device
$54.75

Part Number Click Enlarge Description    Price Shopping Cart
216QFS16-PG-SMT-S 216 pad QFP SMT breadboard adapter converts SMT package with pitch of 0.4mm to 0.1 inch pin grid array.
  • Square QFP Package type
  • 216 Pins
  • 0.4mm Pitch device
$57.00


Specs Discounts Delivery


Google

Aprilog is a Division of Enable Engineering Co., Inc.
