Aprilog makes & stocks IC adapters for QFP, TQFP, QFN, MLF, SOIC, SSOP, TSSOP, TSOP, VSOP, SOP, PLCC, PGA & SOT packages and stocks test sockets by Enplas, Plastronics, Sensata, Yamaichi & Tokyo Electech. Programming adapters, IC footprint chip changing adapters, and ZIF socket to PCB pads adapters. Adapters for Microchip PIC, Intel, NXP, ST, Freescale, and many more. We also build custom adapters to meet your special needs.

DIP Sockets to Surface Mount Component Site Adapters

This is a two part adapter kit providing a way to temporarily connect a DIP component socket to PCB surface mount pads on a circuit card under test. The bottom part, (SMT base), is surface mounted to the PCB and replaces the component normally soldered to the card solder pads. The top part plugs on to the SMT base and has a DIP socket on top.

Adapters are listed in ascending adapter top DIP pin receptacle count order.

8 14 16 18 20 24 32 40 44 48


Part Number   8 DIP socket to surface mount circuit board pads    Price Shopping Cart
8D3-SO15-SD 8 DIP socket to surface mount circuit board pads 8 DIP socket to surface mount circuit board pads
  • 8 Pin to SOIC Package
  • DIP Pin rows are 300 mils apart
  • SOIC package width 153 mils
  • 1.27mm (50 mil) pitch
  • Spare SMT base is part number 8SO15-SD
  • Adapter top fits bases for SOIC packages with body width of 170, 208 and 300 mils
  • Adapter vertical clearance 460 mils
$18.00
8D3-SO17-SD 8 DIP socket to surface mount circuit board pads 8 DIP socket to surface mount circuit board pads
  • 8 Pin to SOIC Package
  • DIP Pin rows are 300 mils apart
  • SOIC package width 170 mils
  • 1.27mm (50 mil) pitch
  • Spare SMT base is part number 8SO17-SD
  • Adapter top fits bases for SOIC packages with body width of 153, 208 and 300 mils
  • Adapter vertical clearance 460 mils
$18.00
8D3-SO21-SD 8 DIP socket to surface mount circuit board pads 8 DIP socket to surface mount circuit board pads
  • 8 Pin to SOIC Package
  • DIP Pin rows are 300 mils apart
  • SOIC package width 210 mils
  • 1.27mm (50 mil) pitch
  • Spare SMT base is part number 8SO21-SD
  • Adapter top fits bases for SOIC packages with body width of 153, 170 and 300 mils
  • Adapter vertical clearance 460 mils
$18.00
8D3-SO30-SD 8 DIP socket to surface mount circuit board pads 8 DIP socket to surface mount circuit board pads
  • 8 Pin to SOIC Package
  • DIP Pin rows are 300 mils apart
  • SOIC package width 300 mils
  • 1.27mm (50 mil) pitch
  • Spare SMT base is part number 8SO30-SD
  • Adapter top fits bases for SOIC packages with body width of 153, 170 and 208 mils
  • Adapter vertical clearance 460 mils
$18.00
8D6-SO15-SD 8 DIP socket to surface mount circuit board pads 8 DIP socket to surface mount circuit board pads
  • 8 Pin to SOIC Package
  • DIP Pin rows are 600 mils apart
  • SOIC package width 153 mils
  • 1.27mm (50 mil) pitch
  • Spare SMT base is part number 8SO15-SD
  • Adapter top fits bases for SOIC packages with body width of 170, 208 and 300 mils
  • Adapter vertical clearance 460 mils
$18.00
8D6-SO17-SD 8 DIP socket to surface mount circuit board pads 8 DIP socket to surface mount circuit board pads
  • 8 Pin to SOIC Package
  • DIP Pin rows are 600 mils apart
  • SOIC package width 170 mils
  • 1.27mm (50 mil) pitch
  • Spare SMT base is part number 8SO15-SD
  • Adapter top fits bases for SOIC packages with body width of 153, 208 and 300 mils
  • Adapter vertical clearance 460 mils
$18.00
8D6-SO21-SD 8 DIP socket to surface mount circuit board pads 8 DIP socket to surface mount circuit board pads
  • 8 Pin to SOIC Package
  • DIP Pin rows are 600 mils apart
  • SOIC package width 210 mils
  • 1.27mm (50 mil) pitch
  • Spare SMT base is part number 8SO21-SD
  • Adapter top fits bases for SOIC packages with body width of 153, 170 and 300 mils
  • Adapter vertical clearance 460 mils
$18.00
8D6-SO30-SD 8 DIP socket to surface mount circuit board pads 8 DIP socket to surface mount circuit board pads.
  • 8 Pin to SOIC Package
  • DIP Pin rows are 300 mils apart
  • SOIC package width 600 mils
  • 1.27mm (50 mil) pitch
  • Spare SMT base is part number 8SO30-SD
  • Adapter top fits bases for SOIC packages with body width of 153, 170 and 208 mils
  • Adapter vertical clearance 460 mils
$18.00

Part Number Click Enlarge 14 Pin DIP socket to surface mount circuit board pads    Price Shopping Cart
14D3-SO15-SD 14 pin DIP socket to SOIC surface mount pads. 14 Pin DIP socket to SOIC surface mount pads. This emulator adapter is made in two parts.
The small base "bed of nails" board replaces 14 lead SOIC package with 153 mil wide body on the test board SOIC pads.
The top assembly attaches to the emulator.
  • For 14 pin SOIC surface mount pads
  • 153 mil wide SOIC package
  • 50 mil pitch
  • Spare SMT base is part number 14SO15-SD
  • Pins & pads are wired one to one
  • DIP receptacle rows are 300 mils appart
  • Adapter vertical clearance 400 mils
  • Works with PIC12F506,PIC16F506,PIC16F526,PIC16F610,PIC16HV610,
    PIC16F616,PIC16HV616,PIC16F630,PIC16F636,PIC16F676,PIC16F684,PIC16F688
$46.00
14D3-SO21-SD 14 pin DIP socket to SOIC surface mount pads. 14 Pin DIP socket to SOIC surface mount pads.
This emulator adapter is made in two parts.
The small base "bed of nails" board replaces 14 lead SOIC package with 208 mil wide body on the test board SOIC pads.
The top assembly attaches to the emulator.
  • For 14 pin SOIC surface mount pads
  • 208 mil wide SOIC package
  • 50 mil pitch
  • Spare SMT base is part number 14SO21-SD
  • Pins & pads are wired one to one
  • DIP receptacle rows are 300 mils appart
  • Adapter vertical clearance 400 mils
$46.00
14D3-SO30-SD 14 pin DIP socket to SOIC surface mount pads. 14 Pin DIP socket to SOIC surface mount pads. This emulator adapter is made in two parts.
The small base "bed of nails" board replaces 14 lead SOIC package with 300 mil wide body on the test board SOIC pads.
The top assembly attaches to the emulator.
  • For 14 pin SOIC surface mount pads
  • 300 mil wide SOIC package
  • 50 mil pitch
  • Spare SMT base is part number 14SO30-SD
  • Pins & pads are wired one to one
  • DIP receptacle rows are 300 mils appart
  • Adapter vertical clearance 400 mils
$46.00

Part Number Click Enlarge 16 Pin DIP socket to surface mount circuit board pads    Price Shopping Cart
16D3-S015-SD 16 pin DIP socket to SOIC surface mount pads. 16 Pin DIP socket to SOIC surface mount pads. This emulator adapter is made in two parts.
The small base "bed of nails" board replaces 16 lead SOIC package with 153 mil wide body on the test board SOIC pads.
The top assembly attaches to the emulator.
  • For 16 pin SOIC surface mount pads
  • 153 mil wide SOIC package
  • 50 mil pitch
  • Spare SMT base is part number 16SO15-SD
  • Pins & pads are wired one to one
  • DIP receptacle rows are 300 mils appart
  • Adapter vertical clearance 400 mils
$48.00
16D3-SO21-SD   16 pin DIP socket to SOIC surface mount pads. 16 Pin DIP socket to SOIC surface mount pads. This emulator adapter is made in two parts.
The small base "bed of nails" board replaces 16 lead SOIC package with 208 mil wide body on the test board SOIC pads.
The top assembly attaches to the emulator.
  • For 16 pin SOIC surface mount pads
  • 208 mil wide SOIC package
  • 50 mil pitch
  • Spare SMT base is part number 16SO21-SD
  • Pins & pads are wired one to one
  • DIP receptacle rows are 300 mils appart
  • Adapter vertical clearance 400 mils
$48.00
16D3-SO30-SD   16 pin DIP socket to SOIC surface mount pads. 16 Pin DIP socket to SOIC surface mount pads. This emulator adapter is made in two parts.
The small base "bed of nails" board replaces 16 lead SOIC package with 300 mil wide body on the test board SOIC pads.
The top assembly attaches to the emulator.
  • For 16 pin SOIC surface mount pads
  • 300 mil wide SOIC package
  • 50 mil pitch
  • Spare SMT base is part number 16SO30-SD
  • Pins & pads are wired one to one
  • DIP receptacle rows are 300 mils appart
  • Adapter vertical clearance 400 mils
$48.00

Part Number Click Enlarge 18 Pin DIP socket to surface mount circuit board pads    Price Shopping Cart
18D3-SO30-SD   18 pin DIP socket to SOIC surface mount pads. 18 Pin DIP socket to SOIC surface mount pads. This emulator adapter is made in two parts.
The small base "bed of nails" board replaces 18 lead SOIC package with 300 mil wide body on the test board SOIC pads.
The top assembly attaches to the emulator.
  • For 18 pin SOIC surface mount pads
  • 300 mil wide SOIC package
  • 50 mil pitch
  • Spare SMT base is part number 18SO30-SD
  • Pins & pads are wired one to one
  • DIP receptacle rows are 300 mils appart
  • Adapter vertical clearance 400 mils
$50.00

Part Number Click Enlarge 20 Pin DIP socket to surface mount circuit board pads    Price Shopping Cart
20D3-SO21-SD   20 pin DIP socket to SOIC surface mount pads. 20 Pin DIP socket to SOIC surface mount pads. This emulator adapter is made in two parts.
The small base "bed of nails" board replaces 20 lead SOIC package with 208 mil wide body on the test board SOIC pads.
The top assembly attaches to the emulator.
  • For 20 pin SOIC surface mount pads
  • 208 mil wide SOIC package
  • 50 mil pitch
  • Spare SMT base is part number 20SO21-SD
  • Pins & pads are wired one to one
  • DIP receptacle rows are 300 mils appart
  • Adapter vertical clearance 400 mils
$54.00
20D3-SO30-SD   20 pin DIP socket to SOIC surface mount pads. 20 Pin DIP socket to SOIC surface mount pads. This emulator adapter is made in two parts.
The small base "bed of nails" board replaces 20 lead SOIC package with 300 mil wide body on the test board SOIC pads.
The top assembly attaches to the emulator.
  • For 20 pin SOIC surface mount pads
  • 300 mil wide SOIC package
  • 50 mil pitch
  • Spare SMT base is part number 20SO30-SD
  • Pins & pads are wired one to one
  • DIP receptacle rows are 300 mils appart
  • Adapter vertical clearance 400 mils
  • Works well for AT89C1051,AT89C2051,AT89C4051,AT90S1200
  • Approved for ICE Technology (NOHAU) In-circuit emulators EMUL-51
$54.00

Part Number Click Enlarge 24 Pin DIP socket to surface mount circuit board pads    Price Shopping Cart
24D3-SO30-SD 24 pin DIP socket to SOIC surface mount pads. 24 Pin DIP socket to SOIC surface mount pads. This emulator adapter is made in two parts.
The small base "bed of nails" board replaces 24 lead SOIC package with 300 mil wide body on the test board SOIC pads.
The top assembly attaches to the emulator.
  • For 24 pin SOIC surface mount pads
  • 300 mil wide SOIC package
  • 50 mil pitch
  • Spare SMT base is part number 24SO30-SD
  • Pins & pads are wired one to one
  • DIP receptacle rows are 300 mils appart
  • Adapter vertical clearance 400 mils
$58.00
24D6-SO30-SD 24 pin DIP socket to SOIC surface mount pads. 24 Pin DIP socket to SOIC surface mount pads. This emulator adapter is made in two parts.
The small base "bed of nails" board replaces 24 lead SOIC package with 300 mil wide body on the test board SOIC pads.
The top assembly attaches to the emulator.
  • For 24 pin SOIC surface mount pads
  • 300 mil wide SOIC package
  • 50 mil pitch
  • Spare SMT base is part number 24SO30-SD
  • Pins & pads are wired one to one
  • DIP receptacle rows are 600 mils appart
  • Adapter vertical clearance 400 mils
$58.00

Part Number Click Enlarge 28 Pin DIP socket to surface mount circuit board pads    Price Shopping Cart
28D3-SO30-SD 28 pin DIP socket to SOIC surface mount pads. 28 Pin DIP socket to SOIC surface mount pads. This emulator adapter is made in two parts.
The small base "bed of nails" board replaces 28 lead SOIC package with 300 mil wide body on the test board SOIC pads.
The top assembly attaches to the emulator.
  • For 28 pin SOIC surface mount pads
  • 300 mil wide SOIC package
  • 50 mil pitch
  • Spare SMT base is part number 28D3-SO30-SD
  • Pins & pads are wired one to one
  • DIP receptacle rows are 300 mils appart
  • Adapter vertical clearance 400 mils
  • Works with Microchip PIC, Freescale 68HC05, National Semiconductor COP and many other devices.
$60.00
28D6-SO30-SD 28 pin DIP socket to SOIC surface mount pads. 28 Pin DIP socket to SOIC surface mount pads. This emulator adapter is made in two parts.
The small base "bed of nails" board replaces 28 lead SOIC package with 300 mil wide body on the test board SOIC pads.
The top assembly attaches to the emulator.
  • For 28 pin SOIC surface mount pads
  • 300 mil wide SOIC package
  • 50 mil pitch
  • Spare SMT base is part number 28D3-SO30-SD
  • Pins & pads are wired one to one
  • DIP receptacle rows are 600 mils appart
  • Adapter vertical clearance 400 mils
$60.00
28D3-SO35-SD 28 pin DIP socket to SOIC surface mount pads. 28 Pin DIP socket to SOIC surface mount pads. This emulator adapter is made in two parts.
The small base "bed of nails" board replaces 28 lead SOIC package with 350 mil wide body on the test board SOIC pads.
The top assembly attaches to the emulator
  • For 28 pin SOIC surface mount pads
  • 350 mil wide SOIC package
  • 50 mil pitch
  • Spare SMT base is part number 28SO35-SD
  • Pins & pads are wired one to one
  • DIP receptacle rows are 300 mils appart
  • Adapter vertical clearance 400 mils
$60.00

Part Number   32 Pin DIP socket to surface mount circuit board pads    Price Shopping Cart
32D6-32PL-SD From a 32 DIP socket to 32 pin PLCC surface mount circuit board pads. 32 pin DIP socket to 32 pin PLCC surface mount circuit board pads.
  • DIP socket to PLCC pads
  • 32 Pins
  • 1.27mm (50 mil) Pitch SMT pads
  • 15 x 12.5mm (490 x 590 mil) tip to tip Rectangular PLCC package PCB site
  • Spare PLCC base is part number 32LC-SD
  • Vertical clearance 400 mils
$120.00
32D6-QFS31-SD   From a 32 DIP socket to QFP, O.8mm pitch surface mount circuit board pads. From a 32 DIP socket to QFP, O.8mm pitch surface mount circuit board pads.
  • DIP socket to SOIC pads
  • 32 Pins
  • 0.8mm Pitch
  • Tip to Tip 9.0mm SMT
  • Spare SMT base is part number 32QFS31-SD
  • Vertical clearance 400 mils
$120.00
32D6-SO30-SD From a 32 DIP socket to SOIC surface mount circuit board pads. From a 32 DIP socket to SOIC surface mount circuit board pads.
  • DIP socket to SOIC pads
  • 32 Pins
  • 1.27mm (50 mil) Pitch SMT pads
  • 9.14mm (360 mils) tip to tip SMT package
  • Spare SMT base is part number 32SO30-SD
  • Vertical clearance 400 mils
$120.00
32D6-SO42-SD From a 32 DIP socket to surface mount circuit board pads. From a 32 DIP socket to surface mount circuit board pads.
  • DIP socket to SMT pads
  • 32 Pins
  • 1.27mm (50 mil) Pitch SMT pads
  • 8.64mm(340 mils) tip to tip SMT package
  • Spare SMT base is part number SO42-SD
  • Vertical clearance 400 mils
$120.00

Part Number   40 Pin DIP socket to surface mount circuit board pads    Price Shopping Cart
40D6-TS14-SD   40 Pin DIP to TSOP type 1 pads. This adapter is wired one to one. 40 Pin DIP to TSOP type 1 pads. This adapter is wired one to one.
  • 40 Pins TSOP Type 1 Package
  • 14.0mm Tip to tip
  • 0.55mm (22 mils) pitch
  • Wired 1 to 1
  • Spare SMT base is part number 40TS14-SD
  • Adapter vertical clearance 460 mils
$180.00
40D6-TS20-SD   40 Pin DIP to TSOP type 1 pads. This adapter is wired one to one. 40 Pin DIP to TSOP type 1 pads. This adapter is wired one to one.
  • 40 Pins TSOP Type 1 Package
  • 14.0mm Tip to tip
  • 0.5mm (20 mils) pitch
  • Wired 1 to 1
  • Spare SMT base is part number 40TS20-SD
  • Adapter vertical clearance 460 mils
$180.00

Part Number   44 Pin DIP socket to surface mount circuit board pads    Price Shopping Cart
44D6-44TS2-SD   DIP pin socket to surface mount circuit board pads. DIP pin socket to surface mount circuit board pads.
  • 44 DIP Pins TSOP Type 2 Package
  • 0.8mm (31.3 mil) pitch
  • Wired 1 to 1
  • Tip-to-tip 10.2mm (440 mils)
  • Spare SMT base is part number 44TS2-SD
  • Vertical clearance 400 mils
$160.00

Part Number   48 Pin DIP socket to surface mount circuit board pads    Price Shopping Cart
48D6-48TSO8-SD   DIP pin socket to surface mount circuit board pads. DIP pin socket to surface mount circuit board pads.
  • DIP socket to SMT pads
  • 48 Pins
      Surface mount base
    • TSOP Package type 2
    • 48 Pad & Pins
    • 0.5 mm pitch
    • Wired 1 to 1
    • Body width 7.6mm
    • Tip-to-tip 8.0mm
    • Spare SMT base is part number 48TSO8-SD
    • Vertical clearance 400 mils
$160.00
48D6-TST20-SD   DIP pin socket to surface mount circuit board pads. DIP pin socket to surface mount circuit board pads.
  • DIP socket to SMT pads
  • 48 Pins
      Surface mount base
    • 20.0mm Tip to tip
    • 0.5mm pitch
    • Wired 1 to 1
    • Socket is Sensata (Wells-CTI) number 648-0482211-A01
    • Spare SMT base is part number 48TS20-SD
    • Vertical clearance 400 mils
$160.00

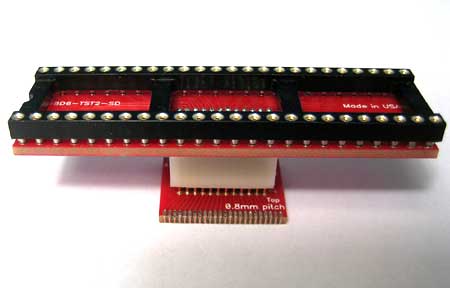

48D6-TST2-50-SD   DIP pin socket to surface mount circuit board pads. DIP pin socket to surface mount circuit board pads.
  • DIP socket to SMT pads
  • 48 Pins
      Surface mount base
    • TSOP Package type 2
    • 48 Pad & Pins
    • Wired 1 to 1
    • Tip-to-tip 14mm (550 mil)
    • Body width 11mm (430 mil)
    • 0.8 mm pitch (31.5 mil)
    • Spare SMT base is part number 48T2-50-SD
    • Vertical clearance 400 mils
$160.00


          Specs Discounts Delivery

Google
Aprilog is a Division of Enable Engineering Co., Inc.
