ALT=  Component Carrier Adapters

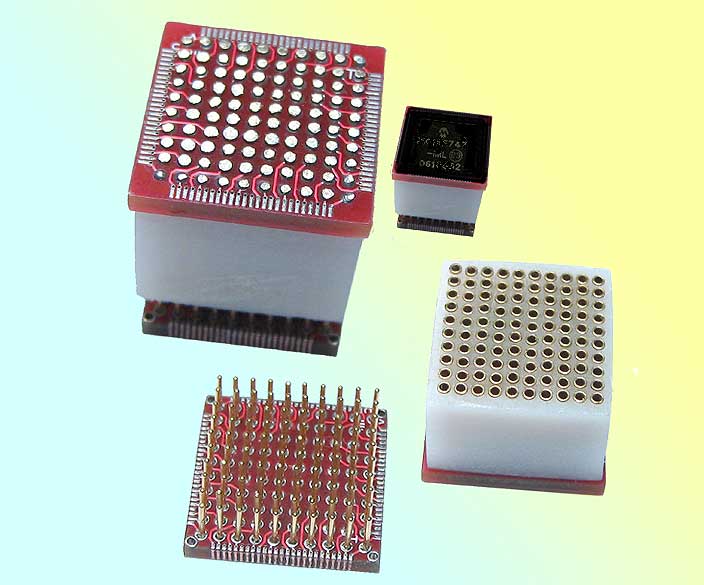

The SMT base bottom part of the adapter is soldered to the IC pads on your printed circuit card component site. The SMT base has pins that connects PCB pads to the chip carrier top. Components soldered to the top are then connected to the PCB pads.
Self centering pin receptacles mean that the adapter top easliy slips on to the SMT base pins.

Adapters are listed in ascending pin count order.
8 Pins 10 Pins 14 Pins 20 Pins
28 Pins 32 Pins 44 Pins 48 Pins
52 Pins 64 Pins 80 Pins 100 Pins
112 Pins 120 Pins 128 Pins 132 Pins
144 Pins 160 Pins 164 Pins 168 Pins
176 Pins 208 Pins 216 Pins


Part Number Click Enlarge 8 Pin $ Add
8SO30-SMT-SD   8 pin SOIC SMT component carrier to SMT base. 8 pin SOIC SMT component carrier to SMT base.
  • For 8 pin SOIC package
  • 5.3mm (209 mil) wide component body
  • 8.0mm (315 mils) Tip to tip
  • 1.27mm (50 mil) pitch
  • Spare SMT base is part number 8SO30-SD
  • Vertical Clearance 460 mils
$48.00

Part Number Click Enlarge 10 Pin $ Add
10SSSO-SMT-SD   10 pad SSSO SMT component carrier 10 pad SSSO SMT component carrier.
  • For 10 pad SSOP package
  • Package width 3.0 (118 mils)
  • Pitch 0.5mm (0.020 inch)
$95.00
10SSSO-SMT-TOP   10 pad SSSO SMT component carrier Top. 10 pad SSSO SMT component carrier Top.
  • 10 pad SOIC SMT component carrier top
  • Package width 3.0 (118 mils)
  • Pitch 0.5mm (0.020 inch)
$25.00

Part Number Click Enlarge 14 Pin $ Add
14SO30-SMT-SD   14 pin SOIC SMT component carrier to SMT base. 14 pin SOIC SMT component carrier to SMT base.
  • For 14 pin SOIC package
  • 5.3mm (209 mil) minimum wide component body
  • 11.0mm (315 mils) maximum Tip to tip
  • 1.27mm (50 mil) pitch
  • Spare SMT base is part number 14SO30-SD
  • Vertical Clearance 460 mils
$95.00

Part Number Click Enlarge 20 Pin $ Add
20SSO21-SMT-SD 28 Pad SSOP component carrier. 20 Pad SSOP component carrier
  • 20 Pins
  • IC Body width 208 mils
  • 0.635 mm (25 mil) pitch
  • SSOP Package type adapter top
  • Spare SMT base is part number 20SSOS21-SD
  • Vertical Clearance 460 mils
$110.00

Part Number Click Enlarge 28 Pin $ Add
28SSO21-SMT-SD 28 Pad SSOP component carrier. 28 Pad SSOP component carrier
  • 28 Pins
  • IC Body width 208 mils
  • 0.65 mm pitch
  • SSOP Package type adapter top
  • Spare SMT base is part number 28SSOS21-SD
  • Vertical Clearance 460 mils
$112.00

Part Number Click Enlarge 32 Pin $ Add
32QFS20-TS-SMT-SD 32 Pin TSOP Type 1 SMT component carrier. 32 Pin TSOP Type 1 SMT component carrier
  • 32 Pins TSOP Type 1 Package
  • 20.0 mm Tip to tip
  • 0.5mm pitch
  • Spare SMT base is part number 32TS20-SD
  • Vertical Clearance 460 mils
$140.00
32QFS31-QF-SMT-SD 32 pin QFP square SMT component carrier
  • 32 Pins
  • 0.8mm pitch
  • QFP pads adapter top
  • Spare SMT base is part number 32QFS31-SD
  • Vertical Clearance 460 mils
$140.00
32SO30-S0-SMT-SD 32 pin SOIC SMT component carrier. 32 pin SOIC SMT component carrier
  • 32 Pins SOIC Package
  • 7.55mm (297 mils) Molded Body width
  • 1.27mm (50 mil) Pitch
  • 10.57 mm (416 mils} Tip to tip
  • Spare SMT base is part number 32SO30-SD
  • Vertical Clearance 460 mils
$140.00

Part Number Click Enlarge 44 Pin $ Add
44QFS31-QF-SMT-SD 44 pin TQFP square SMT component carrier. 44 pin TQFP square SMT component carrier
  • 44 Pins
  • 0.8mm pitch
  • Package tip-to-tip 12.0mm to 13.9mm
  • TQFP pads adapter top
  • Spare SMT base is part number 44QFS31-SD for tip-to-tip 12.0 to 12.6mm
  • Vertical Clearance 460 mils
$165.00
44QFS31-QF31B-SMT-SD 44 pin TQFP square SMT component carrier. 44 pin TQFP square SMT component carrier
  • 44 Pins
  • 0.8mm pitch
  • Package tip-to-tip 12.0mm to 13.9mm
  • TQFP pads adapter top
  • Spare SMT base is part number 44QFS31B for tip-to-tip 13.2 to 13.9mm
  • Vertical Clearance 460 mils
$165.00
44QFS31-QF39-SMT-SD   44 pin TQFP square SMT component carrier
  • 44 Pins
  • 1.0 mm pitch
  • Package tip-to-tip 12.0mm to 13.9mm
  • TQFP pads adapter top
  • Spare SMT base is part number 44QFS39-SD for 1.0mm pitch
  • Vertical Clearance 460 mils
$165.00
44QFS39-QF31-SMT-SD   44 pin TQFP square SMT component carrier
  • 44 Pins
  • Carrier top pitch 1.0mm (39 mils)
  • QFP pads adapter top
  • SMT base pitch 0.8mm (31 mils)
  • Spare SMT base is part number 44QFS31B for tip-to-tip 12.2 to 12.6mm
  • Vertical Clearance 460 mils
$165.00
44QFS39-QF31B-SMT-SD   44 pin TQFP square SMT component carrier
  • 44 Pins
  • Package pitch 1.0mm
  • Carrier top pitch 1.0mm (39 mils)
  • QFP pads adapter top
  • Spare SMT base is part number 44QFS31B-SD for 13.2mm to 13.9mm tip to tip.
  • Vertical Clearance 460 mils
$165.00

Part Number Click Enlarge 48 Pin $ Add
48QFS20-QF-SMT-SD2 48 pin QFP square SMT component carrier. 48 pin QFP square SMT component carrier
  • 48 Pins
  • 0.5mm (20 mil) pitch
  • Package tip-to-tip 9.0mm x 9.0mm (0.355 inch)
  • QFP pads adapter top
  • Spare SMT base is part number 48QFS20-SD
  • Vertical Clearance 460 mils
$240.00
48QFS20-QF-SMT-TOP 48 pin QFP square SMT component carrier top. 48 pin QFP square SMT component carrier top.
  • 48 Pins
  • 0.5mm (20 mil) pitch
  • Package tip-to-tip 9.0mm x 9.0mm (0.355 inch)
  • QFP pads adapter top
$35.00
48QFN20-QFN-SMT-SD 48 pin QFN square SMT component carrier. 48 pin QFN square SMT component carrier
  • 48 Pins
  • 0.5mm (20 mil) pitch
  • Package tip-to-tip 6.86mm x 6.86mm (0.270 inch)
  • QFN pads adapter top
  • Spare SMT base is part number 48QFN20-SD
  • Vertical Clearance 460 mils
$240.00
48QFN20-QFN-SMT-TOP 48 pin QFN square SMT component carrier top. 48 pin QFN square SMT component carrier top.
  • 48 Pins
  • 0.5mm (20 mil) pitch
  • Package tip-to-tip 6.86mm x 6.86mm (0.270 inch)
  • QFN pads adapter top
$35.00

Part Number Click Enlarge 52 Pin $ Add
52QFS26-QF-SMT-SD   52 pin QFP square SMT component carrier
  • 52 Pins
  • 0.65mm pitch
  • QFP pads adapter top
  • Spare SMT base is part number 52QFS26-SD
  • Vertical Clearance 460 mils
$185.00

Part Number Click Enlarge 64 Pin $ Add

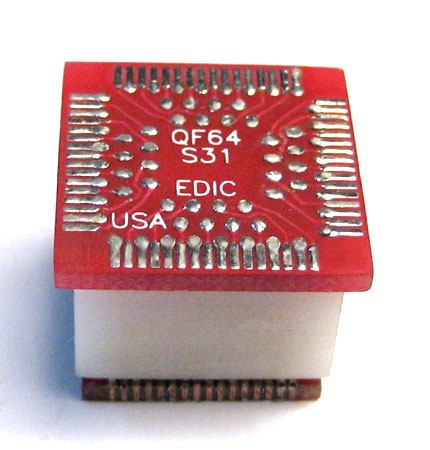

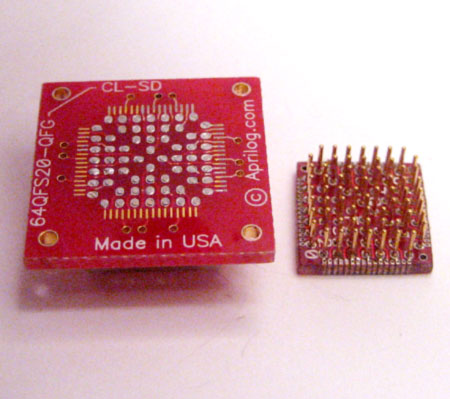

64QFS20-QF-SMT-SD 64 pin QFP square SMT component carrier. 64 pin QFP square SMT component carrier
  • 64 Pins
  • 0.5mm pitch
  • Tip to Tip 12.0mm
  • Body width 10.0mm
  • Spare SMT base is part number 64QFS20-SD
  • Vertical Clearance 460 mils
$190.00
64QFS31-QF-SMT-SD 64 pin QFP square SMT component carrier. 64 pin QFP square SMT component carrier
  • 64 Pins
  • 0.8mm pitch
  • QFP pads adapter top
  • Spare SMT base is part number 64QFS31-SD
  • Vertical Clearance 460 mils
$190.00
64QFS31-QFR39-SMT-SD   64 pin QFP rectangular SMT component carrier top and to 0.8mm pitch square SMT base.
  • 64 Pins
  • QFP rectangular device
  • 1.0mm pitch QFP pads adapter base
  • Spare SMT base is part number 64QFR39-SD
  • Vertical Clearance 460 mils
$190.00
64QFR39-QF-SMT-SD   64 pin QFP rectangular SMT component carrier
  • 64 Pins
  • 1.0mm pitch
  • QFP pads adapter top
  • Spare SMT base is part number 64QFR39-SD
  • Vertical Clearance 460 mils
$190.00
64QFR39-QFS31-SMT-SD   64 pin QFP rectangular SMT component carrier top and to 0.8mm pitch square SMT base.
  • 64 Pins
  • Rectangular 1.0mm pitch QFP pads adapter top
  • Square 0.8mm pitch base
  • Spare SMT base is part number 64QFS31-SD
  • Vertical Clearance 460 mils
$190.00

Part Number Click Enlarge 80 Pin $ Add

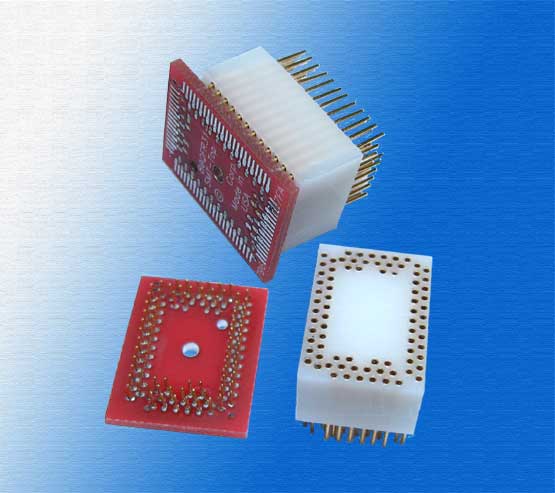

80QFR31-QF-SMT-SD   80 pin QFP rectangular SMT component carrier
  • 80 Pins
  • 0.8mm pitch
  • Adapter top QFP pads
  • Spare SMT base is part number 80QFR26-SD
  • Vertical Clearance 460 mils
$212.00

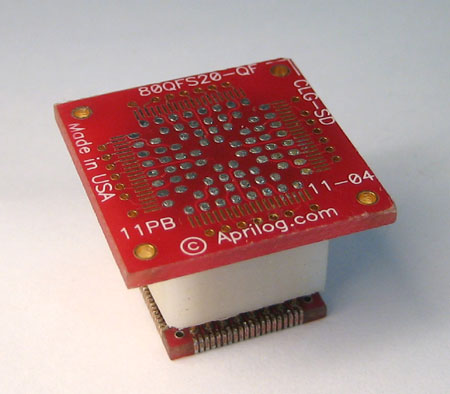

80QFS20-QF-SMT-SD 80 pin TQFP square SMT component carrier. 80 pin TQFP square SMT component carrier
  • 80 Pins
  • 0.5mm pitch
  • QFP pads adapter top
  • Spare SMT base is part number 80QFS20-SD
  • Vertical Clearance 460 mils
$284.00
80QFS26-QF-SMT-SD 80 pin TQFP square SMT component carrier. 80 pin TQFP square SMT component carrier
  • 80 Pins
  • 0.65mm pitch
  • QFP pads adapter top
  • Spare SMT base is part number 80QFS26-SD
  • Vertical Clearance 460 mils
$212.00

Part Number Click Enlarge 100 Pin $ Add
100QFS16-QF-SMT-SD 100 pin TQFP square SMT component carrier. 100 pin TQFP square SMT component carrier
  • 100 Pins
  • 0.4mm pitch
  • QFP pads adapter top
  • Spare SMT base is part number 100QFS16-SD
  • Vertical Clearance 460 mils
$355.00
100QFS20-QF-SMT-SD   100 TQFP square SMT component carrier
  • 100 Pins
  • 0.5mm pitch
  • TQFP pads adapter top
  • Spare SMT base is part number 100QFS20-SD
  • Vertical Clearance 460 mils
$303.00
100QFR26-QF-SMT-SD   100 pin QFP rectangular SMT component carrier
  • 100 Pins
  • 0.65mm pitch
  • Adapter top QFP pads
  • Spare SMT base is part number 100QFR26-SD
  • Vertical Clearance 460 mils
$230.00

Part Number Click Enlarge 112 Pin $ Add
112QFS26-QF-SMT-SD 112 QFP square SMT component carrier. 112 QFP square SMT component carrier
  • 112 Pins
  • 0.65mm pitch
  • Adapter top QFP pads
  • Spare SMT base is part number 112QFS26-SD
  • Vertical Clearance 460 mils
$235.00

Part Number Click Enlarge 120 Pin $ Add
120QFS31-QF-SMT-SD 120 QFP square SMT component carrier. 120 QFP square SMT component carrier
  • 120 Pins
  • 0.8mm pitch
  • Adapter top QFP pads
  • Spare SMT base is part number 120QFS31-S
  • Vertical Clearance 460 mils
$242.00

Part Number Click Enlarge 128 Pin $ Add
128QFR20-QF-SMT-SD   128 TQFP rectangular SMT component carrier
  • 128 Pins
  • 0.5mm pitch
  • Adapter top TQFP pads
  • Spare SMT base is part number 128QFR20-SD
  • Vertical Clearance 460 mils
$320.00
128QFS16-QF-SMT-SD   128 TQFP square SMT component carrier
  • 128 Pins
  • 0.4mm pitch
  • Adapter top QFP pads
  • Spare SMT base is part number 128QFS16-SD
  • Vertical Clearance 460 mils
$320.00
128QFS20-QF-SMT-SD   128 TQFP square SMT component carrier
  • 128 Pins
  • 0.5mm pitch
  • Adapter top QFP pads
  • Spare SMT base is part number 128QFS20-SD
  • Vertical Clearance 460 mils
$320.00
128QFS31-QF-SMT-SD   128 TQFP square SMT component carrier
  • 128 Pins
  • 0.8mm pitch
  • Adapter top QFP pads
  • Spare SMT base is part number 128QFS31-SD
  • Vertical Clearance 460 mils
$320.00

Part Number Click Enlarge 132 Pin $ Add
132QFS25-QF-SMT-SD   132 TQFP square SMT component carrier
  • 132 Pins
  • 25 mil pitch
  • Adapter top TQFP pads
  • Spare SMT base is part number 132QFS25-SD
  • Vertical Clearance 460 mils
$330.00

Part Number Click Enlarge 144 Pin $ Add
144QFS20-QF-SMT-SD   144 TQFP square SMT component carrier
  • 144 Pins
  • 0.5mm pitch
  • Adapter top TQFP pads
  • Spare SMT base is part number 144QFS20-SD
  • Vertical Clearance 460 mils
$347.00
144QFS26-QF-SMT-SD   144 QFP square SMT component carrier. 144 TQFP square SMT component carrier
  • 144 Pins
  • 0.65mm pitch
  • Adapter top TQFP pads
  • Spare SMT base is part number 144QFS26-SD
  • Vertical Clearance 460 mils
$347.00

Part Number Click Enlarge 160 Pin $ Add
160QFS20-QF-SMT-SD   160 QFP square SMT component carrier
  • 160 Pins
  • 0.5mm pitch
  • Adapter top TQFP pads
  • Spare SMT base is part number 160QFS20-SD
  • Vertical Clearance 460 mils
$270.00
160QFS26-QF-SMT-SD 160 QFP square SMT component carrier. 160 QFP square SMT component carrier
  • 160 Pins
  • 0.65mm pitch
  • Adapter top TQFP pads
  • Spare SMT base is part number 160QFS26-SD
  • Vertical Clearance 460 mils
$270.00

Part Number Click Enlarge 164 Pin $ Add
164QFS25-QF-SMT-SD   164 QFP square SMT component carrier
  • 168 Pins
  • 0.635mm pitch
  • Adapter top QFP pads
  • Spare SMT base is part number 164QFS25-SD
  • Vertical Clearance 460 mils
$305.00

Part Number Click Enlarge 168 Pin $ Add
168QFS26-QF-SMT-SD   168 QFP square SMT component carrier
  • 168 Pins
  • 0.65mm pitch
  • Adapter top QFP pads
  • Spare SMT base is part number 168QFS26-SD
  • Vertical Clearance 460 mils
$305.00

Part Number Click Enlarge 176 Pin $ Add
176QFS16-QF-SMT-SD   176 QFP square SMT component carrier. 176 QFP square SMT component carrier
  • 176 Pins
  • 0.4mm pitch
  • Adapter top TQFP pads
  • Spare SMT base is part number 176QFS16-SD
  • Vertical Clearance 460 mils
$320.00
176QFS20-QF-SMT-SD   176 QFP square SMT component carrier. 176 QFP square SMT component carrier
  • 176 Pins
  • 0.5mm pitch
  • Adapter top TQFP pads
  • Spare SMT base is part number 176QFS20-SD
  • Vertical Clearance 460 mils
$320.00
176QFS26-QF-SMT-SD   176 QFP square SMT component carrier. 176 QFP square SMT component carrier
  • 176 Pins
  • 0.65mm pitch
  • Adapter top TQFP pads
  • Spare SMT base is part number 176QFS26-SD
  • Vertical Clearance 460 mils
$320.00

Part Number Click Enlarge 208 Pin $ Add
208QFS20-QF-SMT-SD 208 QFP square SMT component carrier. 208 QFP square SMT component carrier
  • 208 Pins
  • 0.5mm pitch
  • Adapter top TQFP pads
  • Spare SMT base is part number 208QFS20-SD
  • Vertical Clearance 460 mils
$466.00

Part Number Click Enlarge 216 Pin $ Add
216QFS16-QF-SMT-SD 216 QFP square SMT component carrier. 216 QFP square SMT component carrier
  • 216 Pins
  • 0.4mm pitch
  • Adapter top TQFP pads
  • Spare SMT base is part number 216QFS16-SD
  • Vertical Clearance 460 mils
$474.00


          Specs Discounts Delivery

Google
Aprilog is a Division of Enable Engineering Co., Inc.
