ALT= SOIC & SOJ ZIF Socket to Surface Mount PCB Pads Adapters
This is a two part adapter kit providing a way to temporarily plug SMT surface mount components to a circuit card under test. The bottom part (SMT base), is surface mounted to the PCB and replaces the component normally soldered to the PCB card solder pads. The top part plugs into the SMT base and has ZIF socket to hold the SMT component.


Adapters are listed in ascending pin count order.
8 Pins 10 Pins 14 Pins
16 Pins 20 Pins 24 Pins
28 Pins 32 Pins 40 Pins
44 Pins


Part Number Click Enlarge 8 Pin SOIC & SOJ Adapterss    Price Shopping Cart
8SO15-SO-ZO-SD ZIF open top socket to SMT pads for 8 lead SOIC package. ZIF open top socket to SMT pads for 8 lead SOIC package.
  • 8 Pins SOIC Package
  • Package-width 3.9mm (153 mils)
  • 1.27mm (50 mil) pitch
  • Spare SMT base is part number 8SO15-SD
  • Plug-in replaceable socket. Uses socket number 652B0082211-002
  • Also fits similar SMT bases for 153, 170, 208 and 300 mil wide bodies.
  • Adapter vertical clearance 460 mils
$120.00
8SO17-SO-ZO-SD ZIF open top socket to SMT pads for 8 lead SOIC package. ZIF open top socket to SMT pads for 8 lead SOIC package.
  • 8 Pins SOIC Package
  • Package-width 4.4mm (173 mils)
  • 1.27mm (50 mil) pitch
  • Spare SMT base is part number 8SO17-SD
  • Plug-in replaceable socket. Uses socket number 652B0082211
  • Also fits similar SMT bases for 153, 170, 208 and 300 mil wide bodies.
  • Adapter vertical clearance 460 mils
$120.00
8SO21-SO-ZO-SD ZIF open top socket to SMT pads for 8 lead SOIC package. ZIF open top socket to SMT pads for 8 lead SOIC package.
  • 8 Pins SOIC Package
  • Package-width 5.3mm (208 mils)
  • 1.27mm (50 mil) pitch
  • Spare SMT base is part number 8SO21-SD
  • Plug-in replaceable socket. Uses socket number 652C0082211W
  • Also fits similar SMT bases for 153, 170, 208 and 300 mil wide chip bodies.
  • Adapter vertical clearance 460 mils
$120.00

Part Number Click Enlarge 10 Pin SOIC & SOJ Adapterss    Price Shopping Cart
10D3-SSOS17-SD 10 Pin DIP socket to SSOS pads. 10 Pin DIP socket to SSOS pads.
  • 10 DIP Reptacles to SSOS Package
  • DIP Pin rows are 300 mils apart
  • SSOS package width 170 mils
  • 1.27mm (50 mil) pitch
  • Spare SMT base is part number 10SSO17-SD
  • Adapter vertical clearance 460 mils
$120.00
10SO17-SO-ZO-SD ZIF SSOP open top socket to SMT pads for 10 lead SOIC package. ZIF SSOP open top socket to SMT pads for 10 lead SOIC package.
  • Adapter Boyd socket no. 656-0102211 socket supports 10 pin SSOP Package Type 4.88 (0.192") Tip to Tip 2.97mm (0.117") Body length 3.0mm (0.118") Chip body width 0.5mm (0.020") Pitch
  • SMT base is 153 mils wide, with 1.27mm (50 mil) pitch
  • Spare SMT base is part number 10SO17-SD
  • Also fits similar SMT bases for 153, 208 and 300 mil wide chip bodies.
  • Adapter vertical clearance 460 mils
$120.00

Part Number Click Enlarge 14 Pin SOIC & SOJ Adapterss    Price Shopping Cart
14SO15-SO-ZO-SD ZIF open top socket to SMT pads for 14 lead SOIC package. ZIF open top socket to SMT pads for 14 lead SOIC package.
  • 14 Pins SOIC Package
  • Package-width 153 mils
  • Plug-in replaceable socket. Uses Boyd socket number 652B0142211-002
  • Spare SMT base is part number 14SO15-SD
  • Also fits similar SMT bases for 173, 208 and 300 mil wide chip bodies.
  • Adapter vertical clearance 460 mils
$125.00
14SO17-SO-ZO-SD ZIF open top socket to SMT pads for 14 lead SOIC package. ZIF open top socket to SMT pads for 14 lead SOIC package.
  • 14 Pins SOIC Package
  • Package width 173 mils
  • Plug-in replaceable socket. Uses socket number 652B014221
  • Spare SMT base is part number 14SO17-SD
  • Also fits similar SMT bases for 153, 170, 208 and 300 mil wide chip bodies.
  • Adapter vertical clearance 460 mils
$125.00
14SO21-SO-ZO-SD ZIF open top socket to SMT pads for 14 lead SOIC package. ZIF open top socket to SMT pads for 14 lead SOIC package.
  • 14 Pins SOIC Package
  • Package-width 208 mils
  • Plug-in replaceable socket. Uses socket number 652B014221-001
  • Spare SMT base is part number 14SO21-SD
  • Also fits similar SMT bases for 153, 170, 208 and 300 mil wide chip bodies.
  • Adapter vertical clearance 460 mils
$125.00

Part Number Click Enlarge 16 Pin SOIC & SOJ Adapterss    Price Shopping Cart
16SO15-SO-ZO-SD ZIF open top socket to SMT pads for 16 lead SOIC package. ZIF open top socket to SMT pads for 16 lead SOIC package.
  • 16 Pins SOIC Package
  • 3.9mm (154 mils) Package width
  • 6.0mm (236 mils) Tip to tip
  • 10.48 (413 mils) Body length
  • 1.27mm (50 mil) pitch
  • Plug-in replaceable socket. Uses Boyd socket number 652B0162211-002
  • Spare SMT base is part number 16SO15-SD
  • Also fits similar SMT bases for 173, 208 and 300 mil wide chip bodies.
  • Adapter vertical clearance 460 mils
$130.00
16SO15E-SO-ZO-SD ZIF open top socket to SMT pads for 16 lead SOIC package. ZIF open top socket to SMT pads for 16 lead SOIC package.
  • 16 Pins SOIC Package
  • 3.9mm (154 mils) Chip Package width
  • 6.0mm (236 mils) Leads Tip to tip
  • 9.49mm (374 mils) Chip body length
  • 1.27mm (50 mil) pitch
  • Plug-in replaceable socket. Uses Enplas socket number OTS-16-1.27-03
  • Spare SMT base is part number 16SO15-SD
  • Also fits similar SMT bases for 173, 208 and 300 mil wide chip bodies.
  • Adapter vertical clearance 460 mils
$130.00
16SO17-SO-ZO-SD ZIF open top socket to SMT pads for 16 lead SOIC package. ZIF open top socket to SMT pads for 16 lead SOIC package.
  • 16 Pins SOIC Package
  • 4.4mm (173 mils) Package width
  • 6.4mm (252 mils) Tip to tip
  • 10.48 (413 mils) Body length
  • 1.27mm (50 mil) pitch
  • Plug-in replaceable socket. Uses socket number 652B0162211
  • Spare SMT base is part number 16SO17-SD
  • Also fits similar SMT bases for 153, 170, 208 and 300 mil wide chip bodies.
  • Adapter vertical clearance 460 mils
$130.00
16SO21-SO-ZO-SD ZIF open top socket to SMT pads for 16 lead SOIC package. ZIF open top socket to SMT pads for 16 lead SOIC package.
  • 16 Pins SOIC Package
  • 5.0mm (197 mils) Package width
  • 6.8mm (268 mils) Tip to tip
  • 10.48 (413 mils) Body length
  • 1.27mm (50 mil) pitch
  • Package-width 208 mils
  • Plug-in replaceable socket. Uses socket number Yamaichi IC189-0162-019
  • Spare SMT base is part number 16SO21-SD
  • Also fits similar SMT bases for 153, 173 and 300 mil wide chip bodies.
  • Adapter vertical clearance 460 mils
$130.00
16SO30-SO-ZO-SD ZIF open top socket to SMT pads for 16 lead SOIC package. ZIF open top socket to SMT pads for 16 lead SOIC package.
  • 16 Pins SOIC Package
  • 7.6mm (299 mils) Package width
  • 10.2mm (402 mils) Tip to tip
  • 10.5 (413 mils) Body length
  • 1.27mm (50 mil) pitch
  • Compatible IC Package Drawing
  • Plug-in replaceable socket. Uses socket number 6520162211-001
  • Spare SMT base is part number 16SO30-SD
  • Also fits similar SMT bases for 153, 173 and 208 mil wide chip bodies.
  • Adapter vertical clearance 460 mils
$130.00
16SO30-SO-EZO-SD ZIF open top socket to SMT pads for 16 lead SOIC package. ZIF open top socket to SMT pads for 16 lead SOIC package.
  • 16 Pins SOIC Package
  • 7.4-7.6mm (291-300 mils) Package width
  • 10.55mm (415 mils) Tip to tip
  • 10.15-10.45mm (400-411 mils) Body length
  • 1.27mm (50 mil) pitch
  • Plug-in replaceable socket. Uses socket number 652D0162211-E202
  • Spare SMT base is part number 16SO30-SD
  • Adapter vertical clearance 460 mils
$130.00

Part Number   20 Pin SOIC & SOJ Adapterss    Price Shopping Cart
20SO21-SO-ZL-SD   ZIF Closed top socket to SMT pads for 20 lead SOIC package. ZIF clamshell closed top socket to SMT pads for 20 lead SOIC package.
  • 20 Pins SOIC Package
  • 1.27mm (50 mil) Pitch device
  • 7.63mm (307 mil) Leads Tip to tip
  • 5.35mm (211 mil) Package body width
  • Spare SMT base is part number 20SO21-SD
  • Adapter vertical clearance 460 mils
$140.00
20SO30-SO-ZL-SD ZIF Closed top socket to SMT pads for 20 lead SOIC package. ZIF Open top socket to SMT pads for 20 lead SOIC package.
  • For 20 pin SOIC package
  • 1.27mm (50 mil) Pitch device
  • 8.4mm (330 mil) Body width
  • 12.2mm (472 mil) Tip to tip
  • Spare SMT base is part number 20SO30-SD
  • Adapter vertical clearance 460 mils
$140.00
20SO30-SO-ZO-SD ZIF Open top socket to SMT pads for 20 lead SOIC package. ZIF Open top socket to SMT pads for 20 lead SOIC package.
  • For 20 pin SOIC package
  • 7.55mm (300 mil) Body width
  • 10.4mm (409 mil) Tip to tip
  • 13.11mm (516 mil) Body length
  • Plug-in replaceable socket. Uses socket number 652D0202211
  • Spare SMT base is part number 20SO30-SD
  • Adapter vertical clearance 460 mils
$140.00
20SO30A-SO-ZO-SD ZIF Open top socket to SMT pads for 20 lead SOIC package. ZIF Open top socket to SMT pads for 20 lead SOIC package.
  • For 20 pin SOIC package
  • 7.50mm (295 mil) Body width
  • 10.4mm (407 mil) Tip to tip
  • 12.08mm (504 mil) Body length
  • Plug-in replaceable socket. Uses socket number 652D0202211-002
  • Spare SMT base is part number 20SO30-SD
  • Adapter vertical clearance 460 mils
$140.00

Part Number   24 Pin SOIC & SOJ Adapterss    Price Shopping Cart
24SO30A-SO-ZO-SD ZIF Open top socket to SMT pads for 24 lead SOIC package. ZIF Open top socket to SMT pads for 24 lead SOIC package.
  • 24 Pins SOIC Package
  • Body width 7.55mm +/- 0.15 (300 mil)
  • Tip to tip 10.4mm +/- 0.15 (419 mil)
  • Pitch 1.27mm (50 mil)
  • Plug-in replaceable socket. Uses socket number 652D0242211
  • Spare SMT base is part number 24SO30-SD
  • Adapter vertical clearance 460 mils
$150.00

Part Number   28 Pin SOIC & SOJ Adapterss    Price Shopping Cart
28SO30-SO-ZO-SD ZIF Open top socket to SMT pads for 28 lead SOJ package. ZIF Open top socket to SMT pads for 28 lead SOJ package.
  • 28 Pins SOJ Package
  • 7.55mm (297 mils) Package width
  • 1.27mm (50 mil) Pitch
  • 7.7mm (303 mils) Package body width
  • 8.6mm (339 mils) Tip to tip
  • Plug-in replaceable socket. Uses socket number SOJ-28-1.27-06
  • Spare SMT base is part number 28SO30-SD
  • Adapter vertical clearance 400 mils
$160.00
28SO30A-SO-ZO-SD ZIF Open top socket to SMT pads for 28 lead SOIC package. ZIF Open top socket to SMT pads for 28 lead SOIC package. $160.00

Part Number   32 Pin SOIC & SOJ Adapterss    Price Shopping Cart
32SO30A-SO-ZO-SD ZIF Open top socket to SMT pads for 32 lead SOIC package. ZIF Open top socket to SMT pads for 32 lead SOIC package.
  • 32 Pins SOIC Package
  • 1.27mm (50 mil) Pitch
  • 7.55mm (297 mils) Body width
  • 10.57 mm (416 mils} Tip to tip
  • Plug-in replaceable socket. Uses socket number 652D0322211
  • Spare SMT base is part number 32SO30-SD
  • Adapter vertical clearance 460 mils
$160.00
32SO42-SO-ZL-SD ZIF Open top socket to SMT pads for 32 lead SOIC package. ZIF Closed top socket to SMT pads for 32 lead SOIC package.
  • 32 Pins SOIC Package
  • Package width 420 mils
  • 1.27mm (50 mil) Pitch
  • 10.7 (421 mils) Body width
  • 14.2 mm (559 mils} Tip to tip
  • Uses socket number FP-32-1.27-06
  • Spare SMT base is part number 32SO42-SD
  • Adapter vertical clearance 460 mils
$160.00
32SO42A-SO-ZO-SD ZIF Open top socket to SMT pads for 32 lead SOIC package. ZIF Open top socket to SMT pads for 32 lead SOIC package.
  • 32 Pins SOIC Package
  • Package width 420 mils
  • 1.27mm (50 mil) Pitch
  • 11.0mm (433 mils) Body width
  • 14.04 mm (553 mils} Tip to tip
  • Plug-in replaceable socket. Uses socket number 652F0322211
  • Spare SMT base is part number 32SO42-SD
  • Adapter vertical clearance 460 mils
$160.00
32SOJ40-SO-ZO-SD ZIF Open top socket to SMT pads for 32 lead SOIC J-lead package.  ZIF Open top socket to SMT pads for 32 lead SOIC J-lead package.
  • 32 Pins SOIC J-lead Package
  • J lead Tip-to-Tip 10.9mm (420 mils)
  • Plug-in replaceable socket. Uses Yamaichi socket number IC107-3204-G
  • Spare SMT base is part number 32SO30-SD
  • Adapter vertical clearance 460 mils
$160.00

Part Number   40 Pin SOIC & SOJ Adapterss    Price Shopping Cart

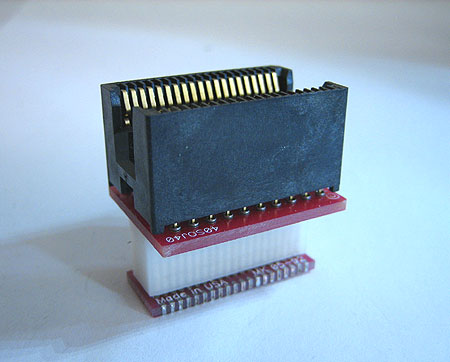

40SO40-SO-ZO-SD ZIF Open top socket to SMT pads for 40 lead SOIC package. ZIF Open top socket to SMT pads for 40 lead SOJ package.
  • 40 Pins SOJ Package
  • SOJ Live bug ZIF socket
  • 1.27mm (50 mil) Pitch
  • Package-width 10.9mm (429 mil)
  • 14.02mm (552 mils) Tip to tip
  • Plug-in replaceable socket. Uses socket number IC107-4004-G
  • Spare SMT base is part number 40SO30-SD
  • Adapter vertical clearance 460 mils
$170.00
40SO42-SO-ZO-SD   ZIF Open top socket to SMT pads for 40 lead SOIC package.
  • 40 Pins SOIC Package
  • Package-width 420 mils
  • 552 mils Tip to tip
  • Plug-in replaceable socket. Uses socket number 652F0402211
  • Spare SMT base is part number 40SO42-SD
  • Adapter vertical clearance 460 mils
$170.00
40SO45-SO-ZO-SD   ZIF Open top socket to SMT pads for 40 lead SOIC package.
  • 40 Pins SOIC Package
  • Package-width 450 mils
  • Spare SMT base is part number 44SO45-SD
  • Adapter vertical clearance 460 mils
$170.00

Part Number   44 Pin SOIC & SOJ Adapterss    Price Shopping Cart
44SO40-SO-ZO-SD ZIF Open top socket to SMT pads for 44 pin SOJ package. ZIF open top socket to SMT pads for 44 lead SOIC package.
  • 44 Pin Live bug SOJ Package
  • 10.9mm (429mills) Tip to tip
  • Plug-in replaceable socket. Uses socket number IC107-4404-106-G
  • Spare SMT base is part number 44SO40-SD
  • Adapter vertical clearance 460 mils
$200.00
44SO50-SO-ZL-SD ZIF clamshell closed top socket to SMT pads for 44 lead SOIC package. ZIF clamshell closed top socket to SMT pads for 44 lead SOIC package.
EMAIL your chip package drawing and/or device part number to assure the mounted socket matches.
  • 44 Pin SOIC Package
  • Package-width 500 mils
  • 630 mills Tip to tip
  • Plug-in replaceable socket. Uses socket number 652G0442211
  • Spare SMT base is part number 44SO50-SD
  • Adapter vertical clearance 460 mils
$200.00
44SO51-SO-ZL-SD ZIF clamshell closed top socket to SMT pads for 44 lead SOIC package. ZIF clamshell closed top socket to SMT pads for 44 lead SOIC package.
  • 44 Pins SOIC Package
  • Package-width 508 mils
  • Spare SMT base is part number 44SO51-SD
  • Adapter vertical clearance 460 mils
$200.00
44SO52-SO-ZL-SD ZIF clamshell closed top socket to SMT pads for 44 lead SOIC package. ZIF clamshell closed top socket to SMT pads for 44 lead SOIC package.
  • 44 Pins SOIC Package
  • Package-width 520 mils
  • Spare SMT base is part number 44SO52-SD
  • Adapter vertical clearance 460 mils
$200.00
44SO52-SO-ZO-SD ZIF open top socket to SMT pads for 44 lead SOIC package. ZIF Open top socket to SMT pads for 44 lead SOIC package.
  • 44 Pins SOIC Package
  • Package-width 12.6mm (494 mils)
  • Tip-to-Tip 16.04mm
  • Pitch 1.27mm (50 mil)
  • Spare SMT base is part number 44SO52-SD
  • Adapter vertical clearance 460 mils
$200.00
44SO53-SO-ZL-SD ZIF clamshell closed top socket to SMT pads for 44 lead SOIC package. ZIF clamshell closed top socket to SMT pads for 44 lead SOIC package.
  • 44 Pins SOIC Package
  • Package-width 580 mils
  • Spare SMT base is part number 44SO53-SD
  • Adapter vertical clearance 460 mils
$200.00


          Specs Discounts Delivery

Google
Aprilog is a Division of Enable Engineering Co., Inc.
