TQFP ZIF Socket to TQFP Surface Mount Component Site Adapters

This is a two part adapter kit providing a way to temporarily plug SMT surface mount components to a circuit card under test. The bottom part (SMT base), is surface mounted to the PCB and replaces the component normally soldered to the PCB card solder pads. The top part plugs into the SMT base and has ZIF socket to hold the SMT component.

Adapters are listed in ascending pin count order.
One surface mount base is included with each adapter.

32 Pins	44 Pins	48 Pins	52 Pins	64 Pins	80 Pins	100 Pins
112 Pins	120 Pins	128 Pins	144 Pins	160 Pins	176 Pins	208 Pins

Part Number		Description	Price	Shopping Cart

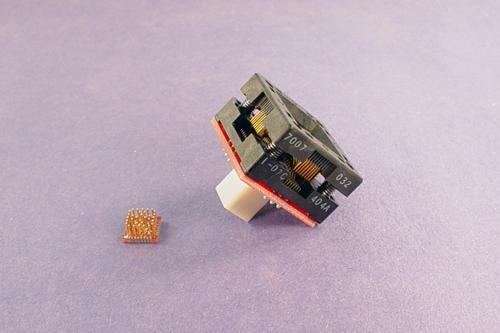

32QFS31-QF-ZO-SD		ZIF open top socket to SMT pads for 32 lead QFP package 32 Pins 0.8mm pitch Tip to Tip 9.0mm Replacement ZIF socket is 3007-032-6-07 Available additional surface mount base part number is part number 32QFS31-SD Available additional surface mount base part number with alignment pins part number is 32QFS31-SDA Adapter vertical clearance 460 mils	$240.00

Part Number		Description	Price	Shopping Cart

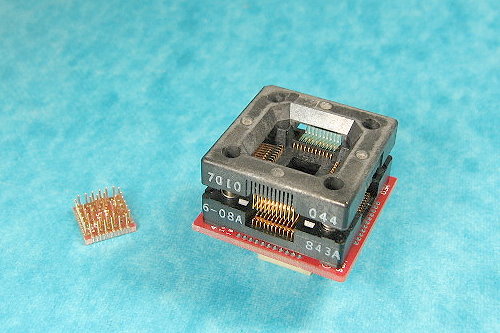

44QFS31A-QF-ZO-SD		ZIF open top socket to SMT pads for 44 lead QFP package 44 Pins 0.8mm pitch Tip to Tip 12.0mm Replacement ZIF socket is 3010-044-6-08 Available additional surface mount base part number is part number44QFS31-SD Available additional surface mount base part number with alignment pins part number 44QFS31-SDA Adapter vertical clearance 460 mils	$270.00

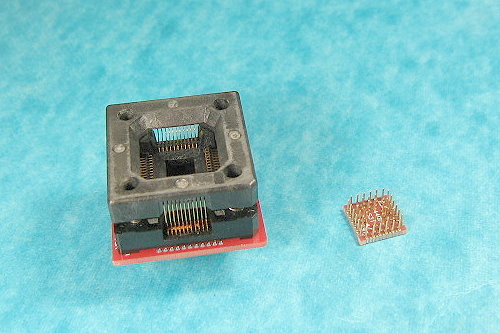

44QFS31B-QF-ZO-SD		ZIF open top socket to SMT pads for 44 lead QFP package 44 Pins 0.8mm pitch Tip to Tip 13.2mm Replacement ZIF socket is 3310-044-6-08 Available additional surface mount base part number is part number 44QFS31B-SD Available additional surface mount base part number with alignment pins part number 44QFS31B-SDA Adapter vertical clearance 460 mils	$270.00
44QFS31A-QF-ZL-SD		ZIF clamshell lidded socket to SMT pads for 44 lead QFP package 44 Pins 0.8mm pitch Tip to Tip 12.0mm Replacement ZIF socket is IC51-0444-1568 Available additional surface mount base part number is part number 44QFS31-SD Available additional surface mount base part number with alignment pins part number 44QFS31-SDA Adapter vertical clearance 460 mils	$270.00

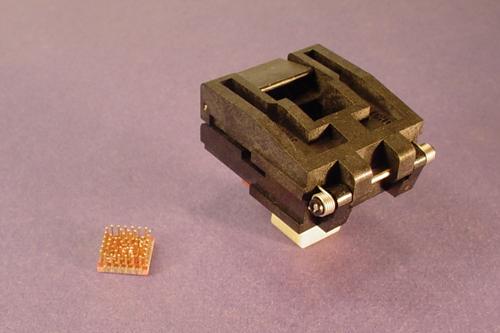

44QFS31C-QF-ZL-SD		ZIF clamshell lidded socket to SMT pads for 44 lead QFP package 44 Pins 0.8mm pitch Tip to Tip 12.6mm Replacement ZIF socket is IC51-0444-825 Available additional surface mount base part number is part number 44QFS31-SD Available additional surface mount base part number with alignment pins part number 44QFS31-SDA Adapter vertical clearance 460 mils	$270.00

Part Number		Description	Price	Shopping Cart
48QFS20-QF-ZO-SD2		ZIF open top socket to SMT pads for 48 lead QFP package 48 Pins 0.5mm (19.685 mil) pitch Tip to Tip 9.0mm Replacement ZIF socket is 3007-048-6-07 Available additional surface mount base part number is part number 48QFS20-SD2 Adapter vertical clearance 460 mils	$345.00

Part Number		Description	Price	Shopping Cart

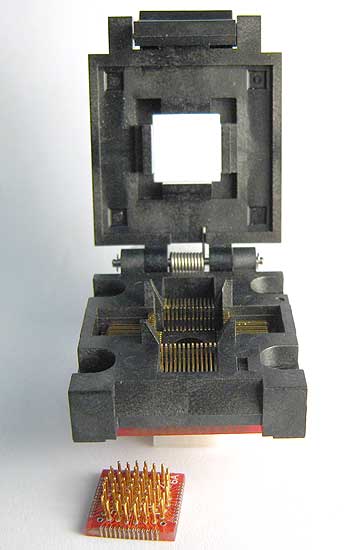

52QFS26C-QF-ZL-SD		ZIF open top socket to SMT pads for 52 lead QFP package 52 Pins 0.65mm (26 mil) Pitch device 12.0mm (472 x 472 mils) Tip to tip 10.0mm (393 x 393 mils) square body Replacement ZIF socket is FPQ-52-0.65-04 Available additional surface mount base part number is part number52QFS26-SD Adapter vertical clearance 460 mils	$280.00

Part Number		Description	Price	Shopping Cart
64QFR39-QF-ZL-SD-1		ZIF Closed top, lidded socket to pads for 64 lead QFP rectangular SMT package with 17.6 X 23.6mm tip to tip. 64 Pins 1.0 mm (39 mil) pitch Tip to Tip 18.7 X 24.7mm Body width 14.0 X 20.0mm Available additional surface mount base part number is part number 64QFR39-SD Replacement ZIF socket is Yamaichi IC51-0644-820-1 Adapter vertical clearance 460 mils	$365.00
64QFR39-QF-ZL-SD-2		ZIF Closed top, lidded socket to pads for 64 lead QFP rectangular SMT package with 17.6 X 23.6mm tip to tip. 64 Pins 1.0 mm (39 mil) pitch Tip to Tip 17.6 X 23.6mm Body width 14.0 X 20.0mm Available additional surface mount base part number is part number 64QFR39B-SD Replacement ZIF socket is Yamaichi IC51-0644-820-2 Adapter vertical clearance 460 mils	$365.00
64QFR39-QF-ZL-SD-4		ZIF Closed top, lidded socket to pads for 64 lead QFP rectangular SMT package with 17.6 X 23.6mm tip to tip. 64 Pins 1.0 mm (39 mil) pitch Tip to Tip 17.2 X 23.2mm Body width 14.0 X 20.0mm Available additional surface mount base part number is part number 64QFR39A-SD Replacement ZIF socket is Yamaichi IC51-0644-820-4 Adapter vertical clearance 460 mils	$365.00

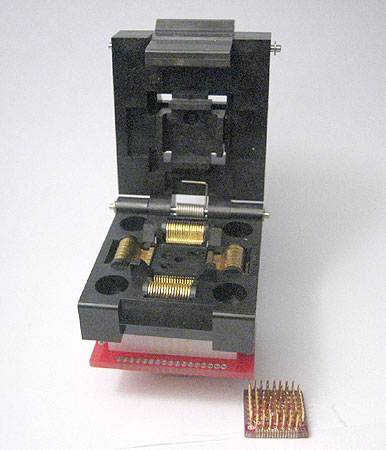

64QFS20-QF-ZL-SD		ZIF Clamshell closed top socket to SMT pads for 64 lead QFP package. 64 Pins 0.5mm (19.685 mil) pitch Tip to Tip 12.0mm Body width 10.0mm Replacement ZIF socket is Yamaichi IC51-0644-807 Available additional surface mount base part number is part number 64QFS20-SD 644-807 Available additional surface mount base part number with alignment pins part number 64QFS20-SDA Adapter vertical clearance 460 mils For components such as PIC18F8620, PIC18F8621, PIC18F8622, PIC18F8627, PIC18F8680, PIC18F86J10, PIC18F86J11, PIC18F86J15, PIC18F86J16, PIC18F86J50, PIC18F86J55, PIC18F86J60, PIC18F86J65 PIC18F8720, PIC18F8722, PIC18F87J10, PIC18F87J11, PIC18F87J50, PIC18F87J60 PIC24FJ118GA108, PIC24FJ128GA008, PIC24FJ128GB108, PIC24FJ192GA108, PIC24FJ192GB108, PIC24FJ256GA108, PIC24FJ256GB108, PIC24FJ64GA008, PIC24FJ64GB108, PIC24FJ96GA008 dsPIC30F5013, dsPIC30F5016, dsPIC30F6010A, dsPIC30F6013A, dsPIC30F6014A, dsPIC33FJ128GP708, dsPIC33FJ128MC708, dsPIC33FJ64GP708, dsPIC33FJ64MC508	$365.00
64QFS20-QF-ZO-SD		ZIF open top socket to SMT pads for 64 lead QFP package. 64 Pins 0.5mm (19.685 mil) pitch Tip to Tip 12.0mm Body width 10.0mm Replacement ZIF socket is 3010-064-6-08 Available additional surface mount base part number is part number 64QFS20-SD Available additional surface mount base part number with alignment pins part number 64QFS20-SDA Adapter vertical clearance 460 mils For components such as PIC18F8620, PIC18F8621, PIC18F8622, PIC18F8627, PIC18F8680, PIC18F86J10, PIC18F86J11, PIC18F86J15, PIC18F86J16, PIC18F86J50, PIC18F86J55, PIC18F86J60, PIC18F86J65 PIC18F8720, PIC18F8722, PIC18F87J10, PIC18F87J11, PIC18F87J50, PIC18F87J60 PIC24FJ118GA108, PIC24FJ128GA008, PIC24FJ128GB108, PIC24FJ192GA108, PIC24FJ192GB108, PIC24FJ256GA108, PIC24FJ256GB108, PIC24FJ64GA008, PIC24FJ64GB108, PIC24FJ96GA008 dsPIC30F5013, dsPIC30F5016, dsPIC30F6010A, dsPIC30F6013A, dsPIC30F6014A, dsPIC33FJ128GP708, dsPIC33FJ128MC708, dsPIC33FJ64GP708, dsPIC33FJ64MC508	$361.00
64QFS31B-QF-ZL-SD		ZIF clamshell lidded socket to SMT pads for 64 lead QFP package 64 Pins 0.8mm pitch Tip to Tip 17.9mm Replacement ZIF socket is IC51-0644-824-2 Available additional surface mount base part number is part number 64QFS31B-SD Available additional surface mount base part number with alignment pins part number 64QFS31B-SDA Adapter vertical clearance 460 mils	$330.00
64QFS31B-QF-ZO-SD		ZIF open top socket to SMT pads for 64 lead QFP package 64 Pins 0.8mm pitch Tip to Tip 17.6mm Replacement ZIF socket is 3414-064-6-08 Available additional surface mount base part number is part number 64QFS31B-SD Available additional surface mount base part number with alignment pins part number 64QFS31B-SDA Adapter vertical clearance 460 mils	$330.00

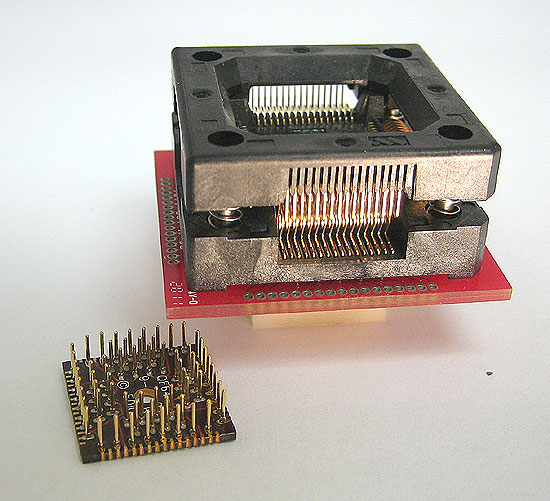

64QFS31D-QF-ZO-SD		ZIF open top socket to SMT pads for 64 lead QFP package 64 Pins 0.8mm pitch Tip to Tip 16.0mm Replacement ZIF socket is 3014-064-6-08 Available additional surface mount base part number is part number 64QFS31D-SD Available additional surface mount base part number with alignment pins part number 64QFS31D-SDA Adapter vertical clearance 460 mils	$330.00

Part Number		Description	Price	Shopping Cart

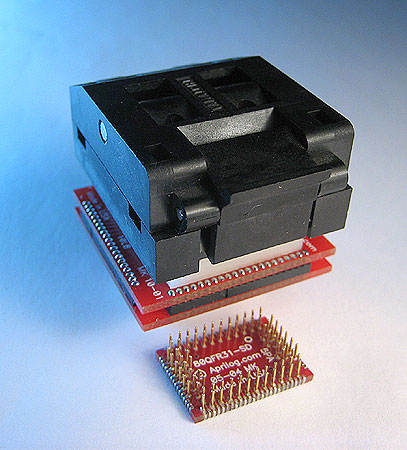

80QFR31C-QF-ZL-SD		ZIF clamshell socket to SMT pads for 64 lead QFP package 80 Pins 0.8mm pitch Tip to Tip 17.6 x 23.6mm Available additional surface mount base part number is part number 80QFR31-SD Available additional surface mount base part number with alignment pins. Order no. 80QFR31-SDA Replacement ZIF socket is IC51-0804-819-1 Adapter vertical clearance 462 mils	$360.00
80QFS20-QF-ZL-SD		ZIF clamshell lidded closed top lidded square socket to SMT pads for 80 lead QFP package 80 Pins 0.5mm (19.685 mil) pitch Tip to Tip 14.0mm Available additional surface mount base part number is part number 80QFS20-SD Available additional surface mount base part number with alignment pins part number 80QFS20-SDA Replacement ZIF socket is IC51-0804-808 Adapter vertical clearance 460 mils	$392.00
80QFS20-QF-ZO-SD		ZIF open top square socket to SMT pads for 80 lead QFP package 80 Pins 0.5mm (19.685 mil) pitch Tip to Tip 14.0mm Available additional surface mount base part number is part number 80QFS20-SD Available additional surface mount base part number with alignment pins part number 80QFS20-SDA Replacement ZIF socket is 3012-080-06-08 Adapter vertical clearance 460 mils	$392.00

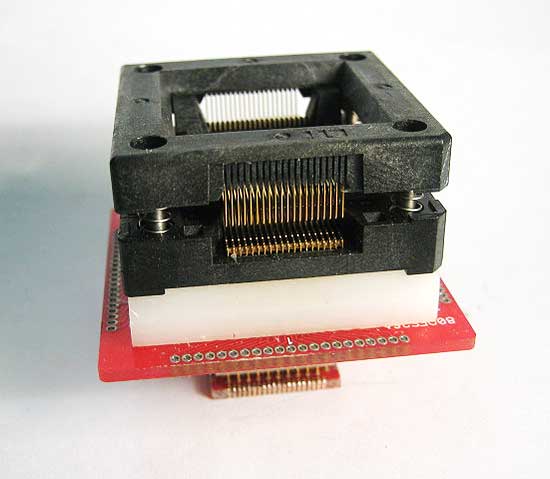

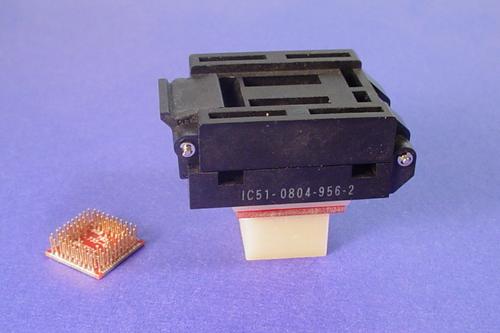

80QFS26A-QF-ZO-SD		ZIF Open top socket to SMT pads for 80 lead QFP package 80 Pins 0.65mm pitch Tip to Tip 17.2mm Body width 14.0mm Available additional surface mount base part number is part number 80QFS26A-SD Replacement ZIF socket is 3314-080-6-08 Available additional surface mount base part number with alignment pins part number 80QFS26A-SDA Adapter vertical clearance 460 mils	$385.00
80QFS26C-QF-Z0-SD		ZIF open top socket to SMT pads for 80 lead QFP package 80 Pins 0.65mm pitch Tip to Tip 16.0mm Available additional surface mount base part number is part number 80QFS26D-SD Available additional surface mount base part number with alignment pins part number 80QFS26D-SDA Replacement socket 3014-080-06-08 Adapter vertical clearance 460 mils	$385.00

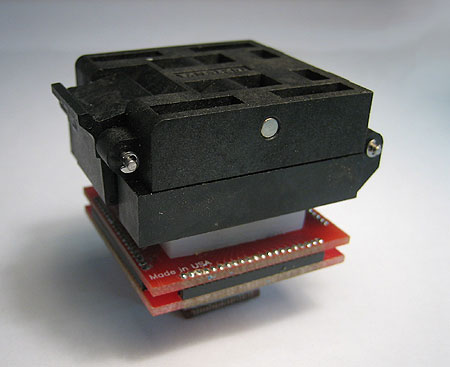

80QFS26D-QF-ZL-SD		ZIF clamshell lidded socket to SMT pads for 80 lead QFP package 80 Pins 0.65mm pitch Tip to Tip 16.0mm Available additional surface mount base part number is part number 80QFS26D-SD Available additional surface mount base part number with alignment pins part number 80QFS26D-SDA Replacement ZIF socket is IC51-0804-795 Adapter vertical clearance 460 mils	$395.00

Part Number		Description	Price	Shopping Cart
100QFR26A-QF-ZO-SD		ZIF Open top socket to SMT pads for 100 lead QFP rectangular package 100 Pins 0.65mm pitch Tip to Tip 17.20 x 23.2mm Available additional surface mount base part number is part number 100QFR26A-SD Available additional surface mount base part number with alignment pins is no. 100QFR26A-SDA Replacement socket 3342-100-06-07 Adapter vertical clearance 460 mils	$485.00
100QFR26C-QF-ZL-SD		ZIF clamshell lidded socket to SMT pads for 100 lead QFP package 100 Pins 0.65mm pitch Tip to Tip 17.6 x 23.6mm Available additional surface mount base part number is part number 100QFR26-SD Available additional surface mount base part number with alignment pins part number 100QFR26-SDA Replacement ZIF socket is IC51-1004-814-2 Adapter vertical clearance 460 mils	$385.00

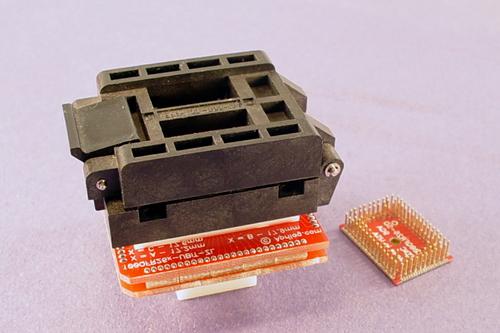

100QFR26D-QF-ZL-SD		ZIF clamshell lidded socket to SMT pads for 100 lead QFP package 100 Pins 0.65mm pitch Tip to Tip 19.0 x 25.00mm Available additional surface mount base part number is part number 100QFR26B-SD Adapter vertical clearance 460 mils	$385.00

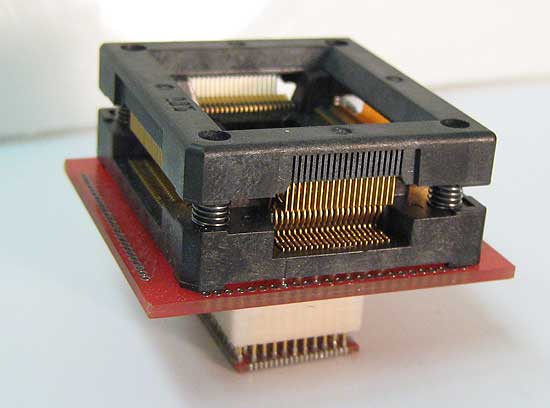

100QFR26D-QF-ZO-SD		Rectangular ZIF open top socket to SMT pads for 100 lead QFP package 100 Pins 0.65mm pitch Rectangular Tip to Tip 16.0 x 22.0mm  Available additional surface mount base part number is part number 100QFR26D-SD Available additional surface mount base part number with alignment pins part number 100QFR26D-SDA Replacement ZIF socket is 3342-100-06-08 Adapter vertical clearance 460 mils	$385.00
100QFS16-QF-ZL-SD		ZIF Closed top socket to SMT pads for 100 lead QFP package 100 Pins 0.4mm pitch Tip to Tip 14.0mm Available additional surface mount base part number is part number 100QFS16-SD Available additional surface mount base part number with alignment pins part number 100QFS16-SDA Replacement ZIF socket is IC51-1004-1919-10 Adapter vertical clearance 460 mils	$500.00
100QFS20-QF-ZL-SD		ZIF closed top, clamshell type, socket to SMT pads for 100 lead TQFP package 100 Pins 0.5mm (19.685 mil) pitch Tip to Tip 16.0mm Available additional surface mount base part number is part number 100QFS20-SD Available additional surface mount base part number with alignment pins part number 100QFS20-SDA Replacement ZIF socket is Yamaichi IC51-1004-809 Adapter vertical clearance 460 mils Common Applications PIC18C958, PIC18F96J60, PIC18F96J65, PIC18F97J60, PIC24FJ64GA010, PIC24FJ96GA010, PIC24FJ128GA010, PIC24FJ64GB110, PIC24FJ128GB110, PIC24FJ192GB110, PIC24FJ256GB110, PIC24FJ118GA110, PIC24FJ192GA110, PIC24FJ256GA110, PIC24HJ64GP210, PIC24HJ64GP510, PIC24HJ128GP210, PIC24HJ128GP510, PIC24HJ128GP310, PIC24HJ256GP210, PIC24HJ256GP610, PIC32MX320F128L, PIC32MX340F128L, PIC32MX360F256L, PIC32MX360F512L, PIC32MX440F128L, PIC32MX460F256L, PIC32MX460F512L, dsPIC33FJ64GP310, dsPIC33FJ64GP710, dsPIC33FJ128GP310, dsPIC33FJ128GP710, dsPIC33FJ256GP510, dsPIC33FJ256GP710, dsPIC33FJ64MC510, dsPIC33FJ64MC710, dsPIC33FJ128MC510, dsPIC33FJ128MC710	$445.00

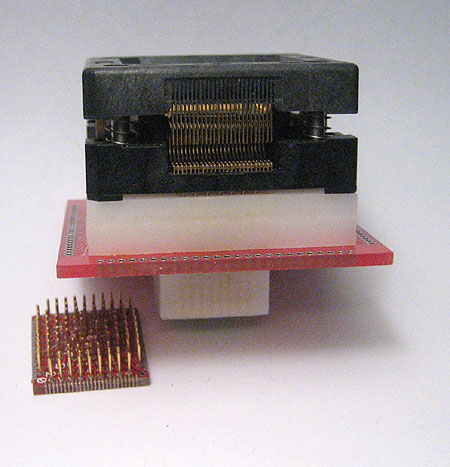

100QFS20-QF-ZO-SD		ZIF open top socket to SMT pads for 100 lead TQFP package 100 Pins 0.5mm (19.685 mil) pitch Tip to Tip 16.0mm Available additional surface mount base part number is part number 100QFS20-SD Available additional surface mount base part number with alignment pins part number 100QFS20-SDA Replacement ZIF socket is 3014-100-06-08 Adapter vertical clearance 460 mils Common Applications PIC18C958, PIC18F96J60, PIC18F96J65, PIC18F97J60, PIC24FJ64GA010, PIC24FJ96GA010, PIC24FJ128GA010, PIC24FJ64GB110, PIC24FJ128GB110, PIC24FJ192GB110, PIC24FJ256GB110, PIC24FJ118GA110, PIC24FJ192GA110, PIC24FJ256GA110, PIC24HJ64GP210, PIC24HJ64GP510, PIC24HJ128GP210, PIC24HJ128GP510, PIC24HJ128GP310, PIC24HJ256GP210, PIC24HJ256GP610, PIC32MX320F128L, PIC32MX340F128L, PIC32MX360F256L, PIC32MX360F512L, PIC32MX440F128L, PIC32MX460F256L, PIC32MX460F512L, dsPIC33FJ64GP310, dsPIC33FJ64GP710, dsPIC33FJ128GP310, dsPIC33FJ128GP710, dsPIC33FJ256GP510, dsPIC33FJ256GP710, dsPIC33FJ64MC510, dsPIC33FJ64MC710, dsPIC33FJ128MC510, dsPIC33FJ128MC710	$423.00

Part Number		Description	Price	Shopping Cart

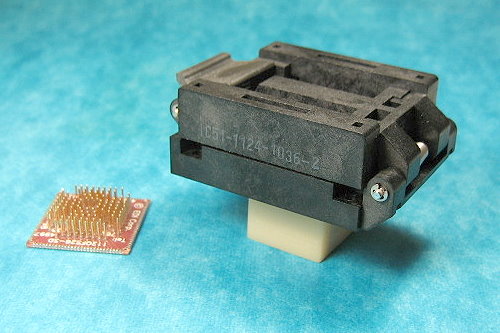

112QFS26A-QF-ZL-SD		ZIF clamshell lidded socket to pads for 112 lead QFP package with tip to tip of 23.3mm. 112 Pins 0.65mm pitch Tip to Tip 22.2mm Available additional surface mount base part number is part number 112QFS26-SD Replacement ZIF socket is IC51-1124-1036-2 Adapter vertical clearance 460 mils	$398.00

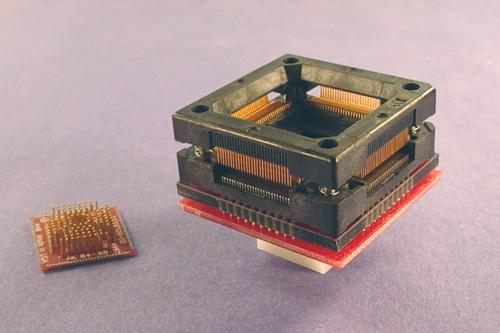

112QFS26C-QF-ZO-SD		ZIF open top socket to pads for 112 lead QFP package with tip-to-tip of 0.65mm. 112 Pins 0.65mm pitch Tip to Tip 22.0mm Available additional surface mount base part number is part number 112QFS26-SD Replacement ZIF socket is 3020-112-6-08 Adapter vertical clearance 460 mils	$398.00

Part Number		Description	Price	Shopping Cart
120QFS16-QF-ZO-SD		ZIF Open lidded socket to pads for 120 lead QFP package with tip to tip of 16.0mm. 120 Pins 0.4mm pitch Tip to Tip 16.0mm Package width 14.0mm Available additional surface mount base part number is part number 120QFS16-SD Replacement ZIF socket is 3014-120-X-08 Adapter vertical clearance 460 mils	$590.00

Part Number		Description	Price	Shopping Cart
128QFR20-QF-ZL-SD		ZIF Closed top, lidded socket to pads for 128 lead QFP rectangular package with 16.0 x 22.0mm tip to tip. 128 Pins 0.5mm (20 mil) pitch Tip to Tip 16.0 X 22.0mm Package width 14.0 x 20mm Available additional surface mount base part number is part number128QFR20-SD Replacement ZIF socket is Yamaichi IC51-1284-1433 Adapter vertical clearance 460 mils	$613.00
128QFS16-QF-ZO-SD		ZIF Open lidded socket to pads for 128 lead QFP package with tip to tip of 14.0mm. 128 Pins 0.4mm pitch Tip to Tip 16.0mm Package width 14.0mm Available additional surface mount base part number is part number128QFS16-SD Replacement ZIF socket is 3014-128-X-08 Adapter vertical clearance 460 mils	$613.00
128QFS16-QF-ZO-SD-P		ZIF Open lidded socket to pads for 128 lead QFP package with tip to tip of 14.0mm. 128 Pins Center post contact 0.4mm pitch Tip to Tip 16.0mm Package width 14.0mm Available additional surface mount base part number is part number128QFS16-SD Replacement ZIF socket is 3014-128-X-08-OE Adapter vertical clearance 460 mils	$796.00
128QFS31A-QF-ZL-SD		ZIF Clamshell closed lid socket to pads for 128 lead QFP package with tip to tip of 30.0mm. 128 Pins 0.8mm pitch Tip to Tip 30.0mm Body width 28.0mm Available additional surface mount base part number is part number128QFS31-SD Replacement ZIF socket is IC51-1284-976-1 Adapter vertical clearance 460 mils	$429.00
128QFS31B-QF-ZL-SD		ZIF Clamshell closed lid socket to pads for 128 lead QFP package with tip to tip of 31.2mm. 128 Pins 0.8mm pitch Tip to Tip 31.2mm Body width 28.0mm Available additional surface mount base part number is part number 128QFS31-SD Replacement ZIF socket is IC51-1284-976-2 Adapter vertical clearance 460 mils	$429.00

Part Number		Description	Price	Shopping Cart
144QFS20-QF-ZL-SD		ZIF Closed top lidded socket to pads for 144 lead QFP package with tip to tip of 22.0mm. 144 Pins 0.5mm (20 mil)pitch Tip to Tip 22.0mm Available additional surface mount base part number is part number144QFS20-SD Replacement ZIF socket is IC51-1444-1354 Adapter vertical clearance 460 mils	$450.00

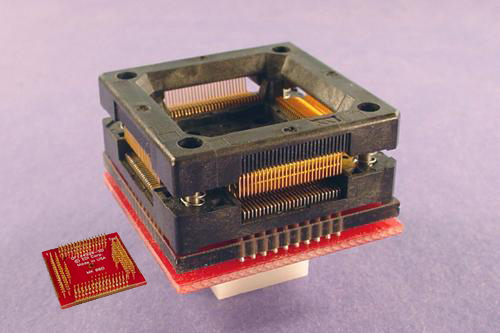

144QFS20-QF-ZO-SD		ZIF Open lidded socket to pads for 144 lead QFP package with tip to tip of 22.0mm. 144 Pins 0.5mm (20 milk) pitch Tip to Tip 22.0mm Available additional surface mount base part number is part number144QFS20-SD Available additional surface mount base part number with alignment pins is part number 144QFS20-SDA Replacement ZIF socket is 3020-144-6-08 Adapter vertical clearance 460 mils	$450.00

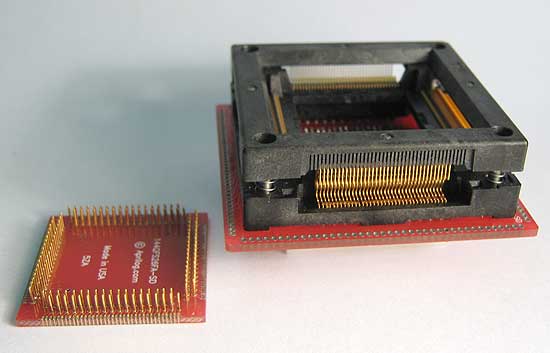

144QFS26A-QF-ZO-SD		ZIF Open lidded socket to pads for 144 lead QFP package with tip to tip of 31.225mm. 144 Pins 0.65mm pitch Tip to Tip 31.225mm IC body width 28.0mm Available additional surface mount base part number is part number144QFS26-SD Available additional surface mount base part number with alignment pins part number 144QFS26-SDA Replacement ZIF socket is 3328-144-6-08 Adapter vertical clearance 460 mils	$450.00

Part Number		Description	Price	Shopping Cart
160QFS20-QF-ZO-SD		ZIF open top socket to pads for 160 lead QFP package with tip-to-tip of 26.0mm. 160 Pins 0.5mm (19.685 mil) pitch Tip to Tip 26.0mm Available additional surface mount base part number is part number 160QFS20-SD Available additional surface mount base part number with alignment pins part number 160QFS20-SDA Replacement ZIF socket is 7024-160-6-08 Adapter vertical clearance 460 mils	$460.00

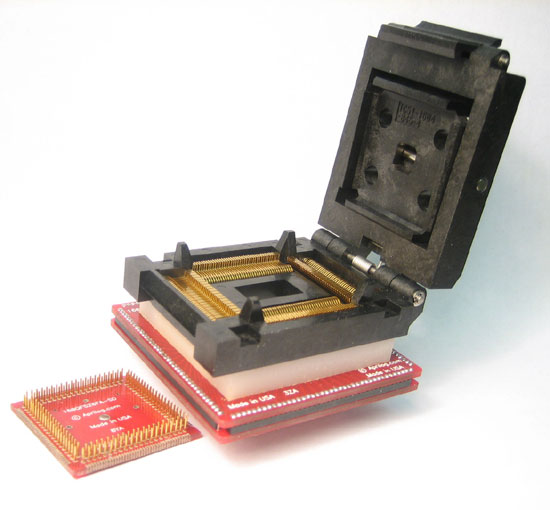

160QFS26A-QF-ZL-SD		ZIF clamshell lidded socket to pads for 160 lead QFP package with tip-to-tip of 31.2mm. 160 Pins 0.65mm pitch Tip to Tip 31.2mm Available additional surface mount base part number is part number 160QFS26-SD Available additional surface mount base part number with alignment pins part number 160QFS26-SDA Replacement ZIF socket is IC51-1604-845-4 Adapter vertical clearance 460 mils	$460.00
160QFS26A-QF-ZO-SD		ZIF open tope socket to pads for 160 lead QFP package with tip-to-tip of 31.2mm. 160 Pins 0.65mm pitch Tip to Tip 31.2mm Available additional surface mount base part number is part number 160QFS26-SD Replacement ZIF socket is 7328-160-6-08 Adapter vertical clearance 460 mils	$460.00

Part Number		Description	Price	Shopping Cart

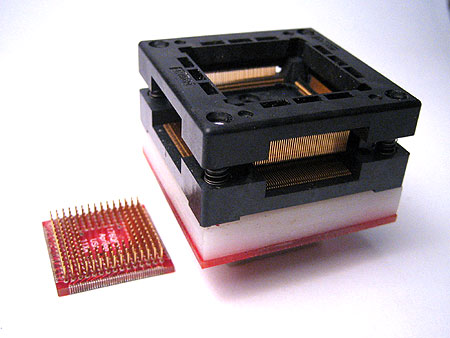

176QFS16-QF-ZO-SD		ZIF open top socket to pads for 176 lead square QFP package with tip-to-tip of 22.0mm. 176 Pins 0.4mm pitch Tip to Tip 22.0 x 22.0mm Molded Package size 20.0 x 20.0mm Replacement ZIF socket is 680H1765111 Available additional surface mount base part number is part number 176QFS16-SD Available additional surface mount base part number with alignment pins part number 176QFS76-SDA Adapter vertical clearance 460 mils	$738.00

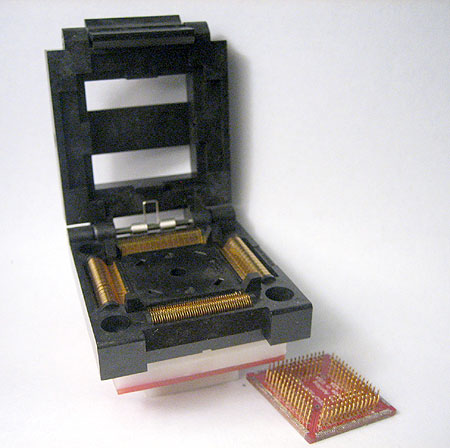

176QFS20-QF-ZL-SD		ZIF Clamshell closed top socket to pads for 176 lead QFP package with tip-to-tip of 26.0mm. 176 Pins 0.5mm (19.685 mil) pitch Tip to Tip 26.0 x 26.Omm Molded body width 24.0 x 24.0mm Replacement ZIF socket is IC51-1764-1505-2 Available additional surface mount base part number is part number 176QFS20-SD Available additional surface mount base part number with alignment pins part number 176QFS76-SDA Adapter vertical clearance 460 mils	$510.00
176QFS20-QF-ZO-SD		ZIF open top socket to pads for 176 lead QFP package with tip-to-tip of 26.0mm. 176 Pins 0.5mm (19.685 mil) pitch Tip to Tip 26.0mm Molded body width 24.0 x 24.0mm Replacement ZIF socket is 3024-176-6-08 Available additional surface mount base part number is part number 176QFS20-SD Available additional surface mount base part number with alignment pins part number 176QFS76-SDA Adapter vertical clearance 460 mils	$510.00

Part Number		Description	Price	Shopping Cart

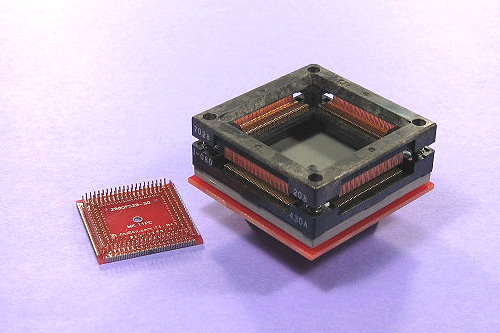

208QFS20-QF-ZO-SD		ZIF open top socket to pads for 208 lead QFP package with tip-to-tip of 30.6mm. 208 Pins 0.5mm (19.685 mil) pitch Tip to Tip 30.0mm Replacement ZIF socket is 3028-208-6-08 Available additional surface mount base part number is part number 208QFS20-SD Available additional surface mount base part number with alignment pins part number 208QFS20-SDA Adapter vertical clearance 460 mils	$630.00
