SOIC Site Monitor Adapters

This adapter plugs into the unit under test SOIC circuit board pads to provide easy access connection points for test instrumentation, signal injection, and temporary external circuit connection. The SOIC socket on the top of the adapter is a high quality test socket to ensure a long useable life and solid signal connection after many chip insertions.

Adapters on these pages are listed in ascending order by the number of pins

Part Number		Description	Price	Shopping Cart
M16SS015-SO-ZO-SD		16 SOIC Pin Monitor Adapter 16 Pins SOIC Package 3.9mm (154 mils) Package width 6.0mm (236 mils) Tip to tip 10.48 (413 mils) Body length 1.27mm (50 mil) pitch Plug-in replaceable socket. Uses Sensata socket number 652B0162211-002 Spare SMT base is part number 16SO15-SD Also fits similar SMT bases for 173, 208 and 300 mil wide chip bodies. Adapter vertical clearance 460 mils	$225.00
M16SS017-SO-ZO-SD		16 SOIC Pin Monitor Adapter 16 Pins SOIC Package 4.4mm (173 mils) Package width 6.4mm (252 mils) Tip to tip 10.48 (413 mils) Body length 1.27mm (50 mil) pitch Plug-in replaceable socket. Uses socket number 652B0162211 Spare SMT base is part number 16SO17-SD Also fits similar SMT bases for 153, 170, 208 and 300 mil wide chip bodies. Adapter vertical clearance 460 mils	$225.00

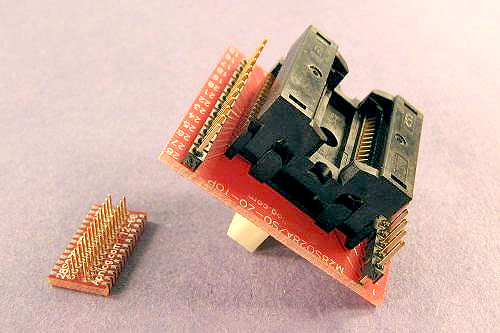

M28SO30A-SO-ZO-SD		28 SOIC Package Monitor Adapter Compatible SOP IC Package Drawing 28 Pins 10.47mm Tip to tip 7.55mm Body width 18.19 Body length 1.27mm (50 mil) pitch Plug-in replaceable socket. Uses socket number 652D0282211 Spare SMT base is part number 28SO30-SD Adapter vertical clearance 460 mils	$225.00
M28SO30A-SO-ZO-SD-001		28 SOP Package Monitor Adapter Compatible SOP IC Package Drawing 28 Pins 10.47mm Tip to tip 7.55mm Body width 18.19 Body length 1.27mm (50 mil) pitch Plug-in replaceable socket. Uses socket number 652D0282211 Spare SMT base is part number 28SO30-SD Adapter vertical clearance 460 mils	$225.00
M28SO30A-SO-ZO-SD-202		28 SOP Package Monitor Adapter 28 Pin SOIC Package Type 7.50mm (295 mil) body width 10.3mm (405 mil) Leads Tip to tip 1.27mm (50 mil) pitch Compatible SOIC Package Drawing	$225.00
