PLCC Socket In-Circuit Emulator Adapters

This is a two part adapter kit providing a way to temporarily connect an in-circuit emulator with a PLCC plug connection to the circuit card under test. The adapter bottom part may be a PLCC plug or female recpetacles that mate with surface mount base.

The SMT base is soldered to the PCB and replaces the component normally mounted on the card solder pads. The top part plugs on to the SMT base and has a PLCC socket on top.

Adapters are listed in ascending order by emulator PLCC plug pin count.

28 40 44
52 68 84


Part Number   28    Price Shopping Cart
28PL-24SO30-SD-AT89C5101   28 Pin PLCC socket with 24 pin SOIC base. For Atmel AT89C5101 emulators 28 Pin PLCC socket with 24 pin SOIC base. For Atmel AT89C5101 emulators with 28-pin PLCC plug connection, and adapts to targets with AT89C5101 in 24-pin SOIC pad chip sites.
  • For Atmel AT89C5101
  • 28 PLCC to QFP 24 SOIC pads
  • 50 mil Pitch SMT pads
  • 10.3 mm tip to tip SMT package
  • Spare SMT base is part number 24SO30-SD
  • Vertical clearance 460 mils
  • For Atmel AT89C5101 emulators with 28 pin PLCC plug connection, and adapts to targets with AT89C5101 in 24 pad SOIC chip sites.
$130.00
28PL-24SO30-SD-AT89C51CC02   28 Pin PLCC socket with 24 pin SOIC base. For Atmel AT89C51CC02 emulators. 28 Pin PLCC socket with 24 pin SOIC base. For Atmel AT89C51CC02 emulators with 28-pin PLCC plug connection, and adapts to targets with AT89C51CC02in 24-pin SOIC pad chip sites.
  • For Atmel AT89C51CC02
  • 28 PLCC to QFP 24 SOIC pads
  • 50 mil Pitch SMT pads
  • 10.3 mm tip to tip SMT package
  • Spare SMT base is part number 24SO30-SD
  • Vertical clearance 460 mils
  • For Atmel AT89C51CC021 emulators with 28 pin PLCC plug connection, and adapts to targets with AT89C51CC02 in 24 pad SOIC chip sites.
$130.00
28PL-28SO30-SD-AT89C5115   28 Pin PLCC socket with 28 pin SOIC base. For Atmel AT89C5115 emulators. 28 Pin PLCC socket with 28 pin SOIC base. For Atmel AT89C5115 emulators with 28-pin PLCC plug connection, and adapts to targets with AT89C51CC02in 24 pad SOIC chip sites.
  • For Atmel AT89C5115
  • 28 PLCC to QFP 28 SOIC pads
  • 50 mil Pitch SMT pads
  • 10.3 mm tip to tip SMT package
  • Spare SMT base is part number 28SO30-SD
  • Vertical clearance 460 mils
  • For Atmel AT89C5115 emulators with 28-pin PLCC plug connection, and adapts to targets with AT89C5115 in 28 pad SOIC chip sites.
$130.00


Part Number   40    Price Shopping Cart
40D-44PL-8051   40 Pin DIP to 80C51 44 pin PLCC socket emulator adapter. 40 Pin DIP to 80C51 44 pin PLCC socket emulator adapter. Pins are wired signal line to signal line. E.g RST to RST, and so on. PLCC pins 1, 12, 23, 34 are not connected.
  • For 8051 series
  • 40 Pin DIP to 80C51 44 pin PLCC socket.
  • Bottom plug fits standard through hole PLCC production socket.
  • Top is standard 40 pin DIP socket
  • PLCC pins 1, 12, 23, 34 are not connected
$180.00


Part Number   44    Price Shopping Cart

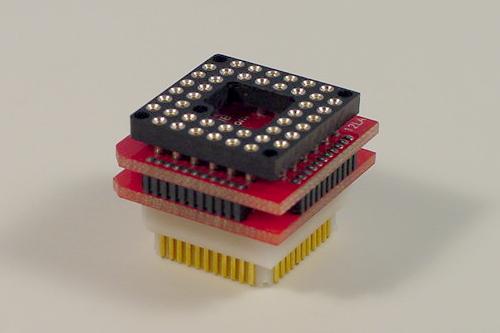

44PG-PL 44 pin PGA to PLCC adapter. The top of the adapter has PGA socket. The bottom of the adapter has PLCC plug. 44 pin PGA to PLCC adapter. The top of the adapter has PGA socket. The bottom of the adapter has PLCC plug. PGA pin assignment is compatible with that of PLCC through-hole socket $120.00
EL-PL44-PL44   Elevator adapter provides a 2 inch clearance from board under test. 44 Pin PLCC socket to 44 pin PLCC plug. Elevator adapter provides a 2 inch clearance from board under test. 44 Pin PLCC socket to 44 pin PLCC plug.
  • 2 Inch Elevator adapter
  • 44 PLCC socket to 44 PLCC male plug
$180.00
2E44PG-PL   Elevator adapter provides a 2 inch clearance from board under test. 44 Pin PGA receptacle to 44 pin PLCC plug. Elevator adapter provides a 2 inch clearance from board under test. 44 Pin PGA receptacle to 44 pin PLCC plug.
  • 2 Inch Elevator adapter
  • 44 PGA socket to 44 PLCC male plug.
  • 44 Adapter top PGA receptacles are compatible with a standard PLCC through hole socket.
$180.00
44PL-32QFS31-SD-AT89C51CC01-02   44 Pin PLCC socket and 32 pin QFP base. 44 Pin PLCC socket and 32 pin QFP base. May be used with in-circuit emulators for the Atmel T89C51CC02 microcontrollers on targets 32 lead QFP package pads.
  • 44 PLCC to QFP 32 TQFP pads
  • 0.8 mm Pitch SMT pads
  • 9.0 mm tip to tip SMT package
  • Spare SMT base is part number 32QFS31-SD
  • Vertical clearance 460 mils
$180.00
44PL-QFS31-SD   44 Pin PLCC to QFP TQFP pads. Generic adapter from PLCC to TQFP pads. 44 Pin PLCC to QFP TQFP pads. Generic adapter from PLCC to TQFP pads. For all 80C51 inclusive of 80C251 & 80C51XA microcontrollers in 44 lead TQFP package. Pins are wired one-to-one.
  • 44 PLCC to QFP 44 TQFP pads
  • 0.8 mm Pitch SMT pads
  • 12.0 to 12.6mm tip to tip SMT package
  • Spare SMT base is part number 44QFS31-SD
  • Vertical clearance 460 mils
$185.00
44PL-QFS31B-SD   44 Pin PLCC to QFP TQFP pads. Generic adapter from PLCC to TQFP pads. 44 Pin PLCC to QFP TQFP pads. Generic adapter from PLCC to TQFP pads. For all Motorola 68HC05, 68HC08, 68HC11 and other microcontrollers in 44 lead QFP package. Wired one-to-one.
  • 44 PLCC to QFP 44 TQFP pads
  • 0.8 mm Pitch SMT pads
  • 13.3mm tip to tip SMT package
  • Spare SMT base is part number 44QFS31B-SD
  • Vertical clearance 460 mils
$185.00
44PLCC-PLCC-ZO-SD   44 Pin PLCC to PLCC circuit board pads. Generic adapter from PLCC socket to PLCC pads. Wired one-to-one. 44 Pin PLCC to PLCC circuit board pads. Generic adapter from PLCC socket to PLCC pads. Wired one-to-one.
  • 44 PLCC to PLCC pads
  • 50 mil Pitch SMT pads
  • 690 mil tip to tip SMT package
  • Spare SMT base is part number 44LC-SD
  • Vertical clearance 460 mils
$185.00
44PL-24SO30-SD-AT89C51CC01-02   44 Pin PLCC to 24 SOIC pads. Adapts an in-circuit emulator PLCC plug interface to 24 pad SOIC Atmel AT89C51CC02 package pads. 44 Pin PLCC to 24 SOIC pads. Adapts an in-circuit emulator PLCC plug interface to 24 pad SOIC Atmel AT89C51CC02 package pads.
  • 44 PLCC to QFP 24 SOIC pads
  • 50 mil Pitch SMT pads
  • 300 mil SMT package width
  • Spare SMT base is part number 24SO30-SD
  • Vertical clearance 460 mils
$150.00
44PL-28SO30-SD-AT89C51CC01-02   44 Pin PLCC to 28 SOIC pads. Adapts an in-circuit emulator PLCC plug interface to 28 pad SOIC Atmel AT89C51CC01 package pads. 44 Pin PLCC to 28 SOIC pads. Adapts an in-circuit emulator PLCC plug interface to 28 pad SOIC Atmel AT89C51CC01 package pads.
  • 44 PLCC to QFP 28 SOIC pads
  • 50 mil Pitch SMT pads
  • 300 mil SMT package width
  • Spare SMT base is part number 28SO30-SD
  • Vertical clearance 460 mils
$150.00
44PL-PL-ZO   44 Pin PLCC open top socket to matching PLCC male plug. 44 Pin PLCC open top socket to matching PLCC male plug. Wired pin to pin, 1 to 1 and so on.
  • 44 PLCC to 44 PLCC male plug
  • Pitch 1.27mm (0.050 inch)
  • Open top socket plugs int the replacement ZIF socket is a Yamaichi IC120-0444-306 socket
  • For a standard 44 pin PLCC package
$185.00
44PL-PL-PG-ZL   44 Pin PLCC Closed top socket to matching PLCC male plug. Wired pin to pin, 1 to 1. 44 Pin PLCC Closed top socket to matching PLCC male plug. Wired pin to pin, 1 to 1 and so on.
  • 44 PLCC to 44 PLCC male plug
  • Pitch 1.27mm (0.050 inch)
  • Open top socket plugs in and the replacement ZIF socket is a Yamaichi IC51-0444-400 socket
  • 17.40 to 17.65mm square standard 44 pin PLCC package
$180.00
44PL-40D-8051   80C51 Emulation Adapter. 44 Pin PLCC socket to matching PLCC male plug. 80C51 Emulation Adapter. 44 Pin PLCC socket to matching PLCC male plug. Wired for 80C51 PLCC to DIP signal line to signal line. e.g. RST to RST and so on. PLCC pins 1, 12, 23, and 24 are not connected.
  • 44 PLCC to 40 pin DIP pins for 80C51 IC.
  • 17.40 to 17.65mm square standard 44 pin PLCC package
  • 40 DIP pins in two rows, 600 mils apart
  • Pins
$55.00
44PL-40D-8051   44 Pin 80C51 Emulation Adapter. 44 Pin PLCC socket pin pattern receptacle to 40 pin DIP adapter. 44 Pin 80C51 Emulation Adapter. 44 Pin PLCC socket pin pattern receptacle to 40 pin DIP adapter.
  • 80C51 44 PLCC socket pin pattern receptacle to 40 pin DIP.
  • Pin receptacle matches the standard 44 pin PLCC socket footprint.
  • 40 DIP pins in two rows, 600 mils apart
$55.00
44PL-40D-8535   44 Pin ATmega 8535 Emulation Adapter. 44 Pin PLCC socket receptacle to 40 pin DIP adapter. 44 Pin ATmega 8535 Emulation Adapter. 44 Pin PLCC socket receptacle to 40 pin DIP adapter.
  • ATmega 8535 44 PLCC socket receptacle to 40 pin DIP.
  • Pin receptacle matches the standard 44 pin PLCC socket footprint.
  • 40 DIP pins in two rows, 600 mils apart
$55.00

Part Number   52    Price Shopping Cart
52PL-28SO30-SD-AT89C5131   52 Pin PLCC to SOIC pads. For Atmel AT89C51C5131 emulators with 52 pin PLCC socket to 28 pin SOIC base for emulation of AT89C51C5131 Atmel microcontrollers on targets with pads 28-SOIC package.
  • 52 PLCC to 28 SOIC pads
  • 50 mil Pitch SMT pads, 300 mils wide
  • Spare SMT base is part number 28SO30-SD
  • Vertical clearance 460 mils
$160.00
52PL-44QFS31-SD-80C530-80C520   52 Pin PLCC to QFP TQFP pads. For Nohau or ICE Technology 80C530 emulators with 52 pin PLCC plug. 52 Pin PLCC to QFP TQFP pads. For Nohau / ICE Technology 80C530 emulators with 52 pin PLCC plug. May be used for 44 lead 80C520 QFP pads. 44QFS31-SD.
  • 52 PLCC to QFP 44 TQFP pads
  • 0.8 mm Pitch SMT pads
  • Spare SMT base is part number 44QFS31-SD
  • Vertical clearance 460 mils
$235.00
52PL-64QF20-SD-AT89C5131   52 Pin PLCC to QFP TQFP pads. For Nohau or ICE Technology AT89C5131 emulators with 52 pin PLCC plug. 52 Pin PLCC to 64 lead TQFP pads. For Nohau / ICE Technology Atmel AT89C5131 microcontroller emulators or actual component 52 pin PLCC.
  • 52 PLCC to QFP 64 TQFP pads
  • 0.5 mm Pitch SMT pads
  • 12.0mm tip to tip SMT package
  • Spare SMT base is part number 64QFS20-SD
  • Vertical clearance 460 mils
$320.00
52PL-64QFS31-SD-68HC11   52 Pin PLCC to QFP TQFP pads. For Nohau or ICE Technology Motorola 68HC11E microcontroller emulators or actual component 52 pin PLCC. 52 Pin PLCC to 64 lead TQFP pads. For Nohau / ICE Technology Motorola 68HC11E microcontroller emulators or actual component 52 pin PLCC.
  • 52 PLCC to QFP 64 TQFP pads
  • 0.65 mm Pitch SMT pads
  • 12.0mm tip to tip, 64 pad SMT package
  • Spare SMT base is part number 64QFS31-SD
  • Vertical clearance 460 mils
$265.00

Part Number   68    Price Shopping Cart
68PG-68PL   68 Pin PGA socket, to 68 pin PLCC 68 Pin PGA to 68 PLCC socket plug
  • 68 Pin PGA to standard 68 pin PLCC socket
  • PGA pin pattern is compatible PLCC socket.
$170.00
68PG-PL-Special   68 Pin PLCC Signal injection/monitor adapter 68 Pin PLCC Signal injection/monitor adapter
  • 68 PLCC plug to 25 mil square wire wrap pins
  • For standard PLCC socket.
  • 1.27mm Pitch
$170.00
68PL-44QFS31-SD-80C51RD2   68 Pin PLCC to 44 lead TQFP pads. For Nohau / ICE Technology T89C51RD2 emulators or emulators with 68 PLCC plug for use on targets with pads for 44 pin QFP version of T89C51RD2. 68 Pin PLCC to 44 lead TQFP pads. For Nohau / ICE Technology T89C51RD2 emulators or emulators with 68 PLCC plug for use on targets with pads for 44 pin QFP version of T89C51RD2.
  • 68 PLCC to QFP 44 TQFP pads
  • 0.8 mm Pitch SMT pads
  • 12.0mm tip to tip SMT package
  • Spare SMT base is part number 64QFS20-SD
  • Vertical clearance 460 mils
$240.00
68PL-64QFS20-SD-80C390   68 Pin PLCC to 44 lead TQFP pads. For Nohau / ICE Technology Dallas Semiconductor 80C390 emulators or actual component to 64 lead TQFP target pads. 68 Pin PLCC to 64 lead TQFP pads. For 68 lead PLCC Nohau / ICE Technology Dallas Semiconductor 80C390 emulators or actual component to 64 lead TQFP target pads.
  • For Nohau Dallas Semiconductor 80C390 emulator
  • 68 PLCC to QFP 64 TQFP pads
  • 0.5 mm Pitch SMT pads
  • 12.0mm tip to tip SMT package
  • Spare SMT base is part number 64QFS20-SD
  • Vertical clearance 460 mils
$350.00
68PL-64QFS20-SD-80C51RD2   68 Pin PLCC to 64 lead TQFP pads. For 68 lead PLCC Nohau / ICE Technology T89C51RD2 emulators emulators with 68PLCC plug or actual compontents to circuit cards with pads for 64pin TQFP version of T89C51RD2 68 Pin PLCC to 64 lead TQFP pads. For 68 lead PLCC Nohau / ICE Technology T89C51RD2 emulators emulators with 68PLCC plug or actual compontents to circuit cards with pads for 64pin TQFP version of T89C51RD2.
  • 68 PLCC to QFP 64 TQFP pads
  • 0.5 mm Pitch SMT pads
  • 12.0mm tip to tip SMT package
  • Spare SMT base is part number 64QFS20-SD
  • Vertical clearance 460 mils
$350.00
68PL-64QFS20-SD-80C51ED2   68 Pin PLCC to 64 lead TQFP pads. For 68 lead PLCC Nohau or ICE Technology T89C51ED2 emulators emulators with 68PLCC plug or actual compontents to circuit cards with pads for 64pin TQFP version of T89C51RD2. 68 Pin PLCC to 64 lead TQFP pads. For 68 lead PLCC Nohau / ICE Technology T89C51ED2 emulators emulators with 68PLCC plug or actual compontents to circuit cards with pads for 64pin TQFP version of T89C51RD2.
  • 68 PLCC to QFP 64 TQFP pads
  • 0.5 mm Pitch SMT pads
  • 12.0mm tip to tip SMT package
  • Spare SMT base is part number 64QFS20-SD
  • Vertical clearance 460 mils
$350.00
68PL-64QFS20-SD-PIC16C923   68 Pin PLCC to 64 lead TQFP pads. For 68 lead PLCC Nohau or ICE Technology T89C51ED2 emulators emulators with 68PLCC plug or actual compontents to circuit cards with pads for 64pin TQFP version of T89C51RD2. 68 Pin PLCC to 64 lead TQFP pads. Microchip PIC 16C923 emulator adapter. Enables an emulator with a 68 pin PLCC plug to be used on a target with a 64 TQFP pads. This emulator adapter can also be used for Microchip PIC 16C924, PIC 16C925 & PIC 16C926
  • 68 PLCC to QFP 64 TQFP pads
  • PLCC no connects are pins 1, 36 & 52. PLCC pins 21 and 22 are joined.
  • 0.5 mm Pitch SMT pads
  • 12.0mm tip to tip SMT package
  • Spare SMT base is part number 64QFS20-SD
  • Vertical clearance 460 mils
$350.00
68PL-64QFS20-SD-PIC17C752   68 Pin PLCC to 64 lead TQFP pads. Microchip PIC 17C752 emulator adapter. 68 Pin PLCC to 64 lead TQFP pads. Microchip PIC 17C752 emulator adapter. Enables an emulator with a 68 pin PLCC plug to be used on a target with a 64 TQFP pads. This emulator adapter can also be used for Microchip PIC 17C756, PIC 16C601 & PIC 18C658
  • 68 PLCC to QFP 64 TQFP pads
  • PLCC no connects are pins 1, 18, 35 & 52.
  • 0.5 mm Pitch SMT pads
  • 12.0mm tip to tip SMT package
  • Spare SMT base is part number 64QFS20-SD
  • Vertical clearance 460 mils
$350.00
68PL-64QFS31-SD-68HC11F1   68 Pin PLCC to 64 lead TQFP pads. For 68 lead PLCC <Nohau / ICE Technology Motorola 68HC11F1 emulator adapter enables any emulator or the actual component with a 68 pin PLCC plug to be used on a target with a 64 QFP pads. 68 Pin PLCC to 64 lead TQFP pads. For 68 lead PLCC Nohau / ICE Technology Motorola 68HC11F1 emulator adapter enables any emulator or the actual component with a 68 pin PLCC plug to be used on a target with a 64 QFP pads.
  • 68 PLCC to QFP 64 TQFP pads
  • 0.8 mm Pitch SMT pads
  • Spare SMT Tip-to-tip 16.0mm base is part number 64QFS31-SD
  • Spare SMT Tip-to-tip 17.9mm base is part number 64QFS31B-SD
  • Vertical clearance 460 mils
$350.00
68PL-64QFS31-SD-68HC11KA   68 Pin PLCC to 64 lead TQFP pads. For 68 lead PLCC Nohau / ICE TechnologyMotorola 68HC11KA emulator adapter 68 Pin PLCC to 64 lead TQFP pads. For 68 lead PLCC Nohau / ICE Technology Motorola 68HC11KA emulator adapter enables any emulator or the actual component with a 68 pin PLCC plug to be used on a target with a 64 QFP pads.
  • 68 PLCC to QFP 64 TQFP pads
  • 0.8 mm Pitch SMT pads
  • Spare SMT Tip-to-tip 16.0mm base is part number 64QFS31-SD
  • Spare SMT Tip-to-tip 17.9mm base is part number 64QFS31B-SD
  • Vertical clearance 460 mils
$350.00
68PL-64QFS31-SD-68HC11L6   68 Pin PLCC to 64 lead TQFP pads. For 68 lead PLCC Nohau / ICE Technology Motorola 68HC11L6 emulator adapter enables any emulator or the actual component with a 68 pin PLCC plug to be used on a target with a 64 QFP pads. 68 Pin PLCC to 64 lead TQFP pads. For 68 lead PLCC Nohau / ICE Technology Motorola 68HC11L6 emulator adapter enables any emulator or the actual component with a 68 pin PLCC plug to be used on a target with a 64 QFP pads.
  • 68 PLCC to QFP 64 TQFP pads
  • 0.8 mm Pitch SMT pads
  • Spare SMT Tip-to-tip 16.0mm base is part number 64QFS31-SD
  • Spare SMT Tip-to-tip 17.9mm base is part number 64QFS31B-SD
  • Vertical clearance 460 mils
$350.00
68PL-80QFR31-SD-80C550   68 Pin PLCC to 80 lead TQFP pads. For 68 lead PLCC Nohau / ICE Technology Dallas Semiconductor D80C550 emulators with 68 PLCC plug for connection to QFP pads on the target. 68 Pin PLCC to 80 lead TQFP pads. For 68 lead PLCC Nohau / ICE Technology Dallas Semiconductor D80C550 emulators with 68 PLCC plug for connection to QFP pads on the target.
  • 68 PLCC to QFP 80 TQFP pads
  • 0.8 mm Pitch SMT pads
  • Spare SMT Tip-to-tip (17.2-17.9) x (23.2-23.9)mm is part number 80QFR31-SD
  • Vertical clearance 460 mils
$350.00
68PL-80QFR31-SD-80C552   68 Pin PLCC to 80 lead TQFP pads. For 68 lead PLCC Nohau / ICE Technology Dallas 80C550 or Philips Semiconductor 80C552 and 80C562 emulators with 68 PLCC plug for connection to QFP pads on the target. 68 Pin PLCC to 80 lead TQFP pads. For 68 lead PLCC Nohau / ICE Technology Dallas 80C550 or Philips Semiconductor 80C552 and 80C562 emulators with 68 PLCC plug for connection to QFP pads on the target.
  • 68 PLCC to QFP 80 TQFP pads
  • 0.8 mm Pitch SMT pads
  • Spare SMT Tip-to-tip (17.2-17.9) x (23.2-23.9)mm is part number 80QFR31-SD
  • Vertical clearance 460 mils
$350.00
68PL-80QFR31-SD-80C592   68 Pin PLCC to 80 lead TQFP pads. For 68 lead PLCC Nohau / ICE Technology Philips Semiconductor 80C592 emulators with 68 PLCC plug for connection to QFP pads on the target. 68 Pin PLCC to 80 lead TQFP pads. For 68 lead PLCC Nohau / ICE Technology Philips Semiconductor 80C592 emulators with 68 PLCC plug for connection to QFP pads on the target.
  • 68 PLCC to QFP 80 TQFP pads
  • 0.8 mm Pitch SMT pads
  • Spare SMT Tip-to-tip (17.2-17.9) x (23.2-23.9)mm is part number 80QFR31-SD
  • Vertical clearance 460 mils
$350.00
68PL-80QFR31-SD-Z180   68 Pin PLCC to 80 lead TQFP pads. For Zilog Z180 emulators with 68 PLCC plug for connection to QFP pads on the target. 68 Pin PLCC to 80 lead TQFP pads. For Zilog Z180 emulators with 68 PLCC plug for connection to QFP pads on the target.
  • 68 PLCC to QFP 80 TQFP pads
  • 0.8 mm Pitch SMT pads
  • Spare SMT Tip-to-tip (17.2-17.9) x (23.2-23.9)mm is part number 80QFR31-SD
  • Vertical clearance 460 mils
$350.00
68PL-80QFS26-SD-80C515A   68 Pin PLCC to 80 lead TQFP pads. For Infineon 80C515A emulators with 68 PLCC plug for connection to 80 lead QFP pads on the target. 68 Pin PLCC to 80 lead TQFP pads. For Infineon 80C515A emulators with 68 PLCC plug for connection to 80 lead QFP pads on the target.
  • 68 PLCC to QFP 80 TQFP pads
  • 0.65 mm Pitch SMT pads
  • Spare SMT base is part number 80QFS26-SD
  • Vertical clearance 460 mils
$350.00
68PL-80QFS26-SD-68HC11F1   68 Pin PLCC to 80 lead TQFP pads. For Motorola 68HC11F1 emulators with 68 PLCC plug for connection to 80 lead QFP pads on the target. 68 Pin PLCC to 80 lead TQFP pads. For Motorola 68HC11F1 emulators with 68 PLCC plug for connection to 80 lead QFP pads on the target.
  • 68 PLCC to QFP 80 TQFP pads
  • 0.65 mm Pitch SMT pads
  • Spare SMT base is part number 80QFS26-SD
  • Vertical clearance 460 mils
$350.00
68PL-80QFS26-SD-68HC11KA   68 Pin PLCC to 80 lead TQFP pads. For Motorola 68HC11KA emulators with 68 PLCC plug for connection to 80 lead QFP pads on the target. 68 Pin PLCC to 80 lead TQFP pads. For Motorola 68HC11KA emulators with 68 PLCC plug for connection to 80 lead QFP pads on the target.
  • 68 PLCC to QFP 80 TQFP pads
  • 0.65 mm Pitch SMT pads
  • Spare SMT base is part number 80QFS26-SD
  • Vertical clearance 460 mils
$350.00
128NH-68PL-196KC   Standard plug to 68 Pin PLCC socket for ohau / ICE Technology Intel 80196-KC emulators. Standard plug to 68 Pin PLCC socket for Nohau / ICE Technology Intel 80196-KC emulators.
  • For Nohau Intel 80C196-KC in-circuit emulator
  • 68 PLCC blug
  • Vertical clearance 460 mils
$395.00

Part Number   84       Price Shopping Cart
84PL-64QFS31-SD-68HC11FC0   84 Pin PLCC to 64 lead TQFP pads. For Motorola 68HC11FC0 emulators with 84 PLCC plug for connection to 64 lead QFP pads on the target.
  • 84 PLCC to QFP 64 TQFP pads
  • 0.8 mm Pitch SMT pads
  • Spare SMT Tip-to-tip 16.0mm base is part number 64QFS31-SD
  • Spare SMT Tip-to-tip 17.9mm base is part number 64QFS31B-SD
  • Vertical clearance 460 mils
$350.00
84PL-80QFS20-SD-PIC17C762   84 Pin PLCC to 80 lead TQFP pads. For Microchip PIC17C762 emulators with 84 PLCC plug for connection to 80 lead QFP pads on the target. 84 Pin PLCC to 80 lead TQFP pads. For Microchip PIC17C762 emulators with 84 PLCC plug for connection to 80 lead QFP pads on the target.
  • 84 PLCC to QFP 80 TQFP pads
  • 0.5 mm Pitch SMT pads
  • Spare SMT 16.0mm Tip-to-tip is part number 80QFS20-SD
  • Vertical clearance 460 mils
$380.00
84PL-80QFS26-SD-68HC11K4   84 Pin PLCC to 80 lead TQFP pads. For Motorola 68HC11K4 emulators with 84 PLCC plug for connection to 80 lead QFP pads on the target. 84 Pin PLCC to 80 lead TQFP pads. For Motorola 68HC11K4 emulators with 84 PLCC plug for connection to 80 lead QFP pads on the target.
  • 84 PLCC to QFP 80 TQFP pads
  • 0.65 mm Pitch SMT pads
  • Spare SMT base part number 80QFS26-SD
  • Vertical clearance 460 mils
$380.00
84PL-80QFS26-SD-80C517A-80C515A   84 Pin PLCC to 80 lead TQFP pads. For Infineon 80C515A, 80C517A, 80C535A and 80C537A emulators with 84 PLCC plug for connection to 80 lead QFP pads on the target. 84 Pin PLCC to 80 lead TQFP pads. For Infineon 80C515A, 80C517A, 80C535A and 80C537A emulators with 84 PLCC plug for connection to 80 lead QFP pads on the target.
  • 84 PLCC to QFP 80 TQFP pads
  • 0.65 mm Pitch SMT pads
  • Spare SMT base part number 80QFS26-SD
  • Vertical clearance 460 mils
$380.00
84PL-112QFS26-SD-68HC11PH8   84 Pin PLCC to 112 lead TQFP pads. For Motorola 68HC11PH8 emulators with 84 PLCC plug for connection to 112 lead QFP pads on the target.
  • 84 PLCC to QFP 112 TQFP pads
  • 0.65 mm Pitch SMT pads
  • Spare SMT base part number 112QFS26-SD
  • Vertical clearance 460 mils
$380.00


www.aprilog.com
1442 Rollins Road, Burlingame CA 94010 USA



          Specs Discounts Delivery


Aprilog.com is a Division of Enable Engineering Co., Inc
