QFP & TQFP Site Monitor Adapters

This adapter provides easy access connection points for test instrumentation, signal injection, and temporary external circuit connection.
It consists of two parts, a bed of nails SMT base that has the same footprint as the IC surface mount pads and top module. The top module has a QFP or TQFP ZIF socket for the test component and mating receptacle for the SMT base

Adapters on these pages are listed in ascending order by the number of pins.   M=



32 Pins 44 Pins 48 Pins 64 Pins 80 Pins 100 Pins 160 Pins 208 Pins


Part Number   Description    Price Shopping Cart
M32QFS31-QF-ZO-SD   32 pin QFP Pin Monitor Adapter
  • QFP Package Type
  • 32 Pins
  • 0.8mm pitch
  • Tip to Tip 9.0mm
  • Compatible TQFP Package Type
  • Replacement ZIF socket is 3007-032-6-07
  • Available additional surface mount base part number is 32QFS31-SD
  • Available additional surface mount base part number with alignment pins part number is 32QFS31-SDA
  • Adapter vertical clearance 460 mils
$256.00

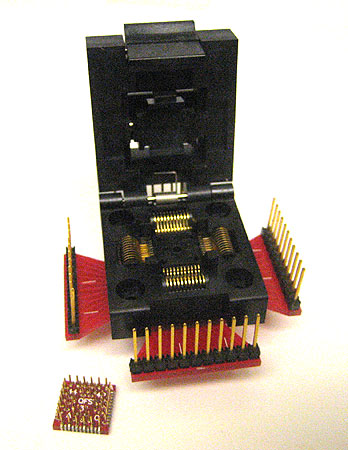

M44QFS31-QF-ZL-SD Open top 32 pin QFP Pin Monitor Adapter 44 pin QFP Pin Monitor Adapter
  • QFP Package Type
  • 44 Pins
  • 0.8mm pitch
  • Tip to Tip 12.0mm
  • Replacement ZIF socket is IC51-0444-1568
  • Available additional surface mount base part number is 44QFS31-SD
  • Available additional surface mount base part number with alignment pins part number 44QFS31-SDA
  • Adapter vertical clearance 460 mils
$325.00

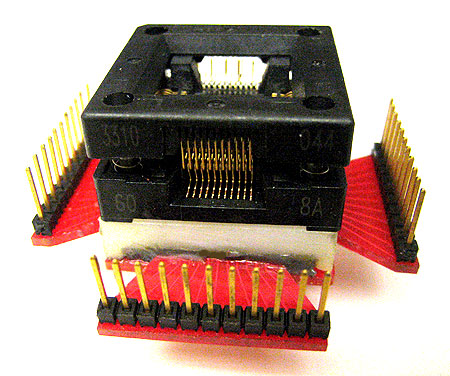

M44QFS31A-QF-ZO-SD Open top 32 pin QFP Pin Monitor Adapter 44 pin QFP Pin Monitor Adapter
  • QFP Package Type
  • 44 Pins
  • 0.8mm pitch
  • Tip to Tip 13.2mm
  • Compatible QFP IC Package Drawing
  • Replacement ZIF socket is 3310-044-6-08
  • Available additional surface mount base part number is 44QFS31-SD
  • Available additional surface mount base part number with alignment pins part number 44QFS31-SDA
  • Adapter vertical clearance 460 mils
$325.00

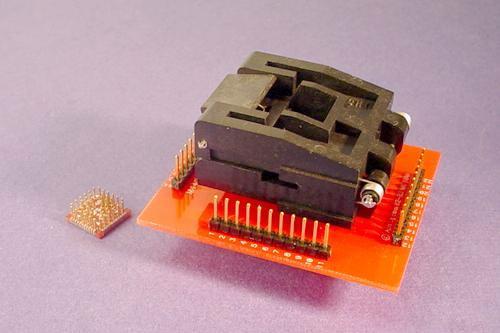

M44QFS31C-QF-ZL-SD Open top 32 pin QFP Pin Monitor Adapter 44 pin QFP Pin Monitor Adapter
  • QFP Package Type
  • 44 Pins
  • 0.8mm pitch
  • Tip to Tip 12.6mm
  • Replacement ZIF socket is IC51-0444-825
  • Available additional surface mount base part number is 44QFS31-SD
  • Available additional surface mount base part number with alignment pins part number 44QFS31-SDA
  • Adapter vertical clearance 460 mils
$325.00

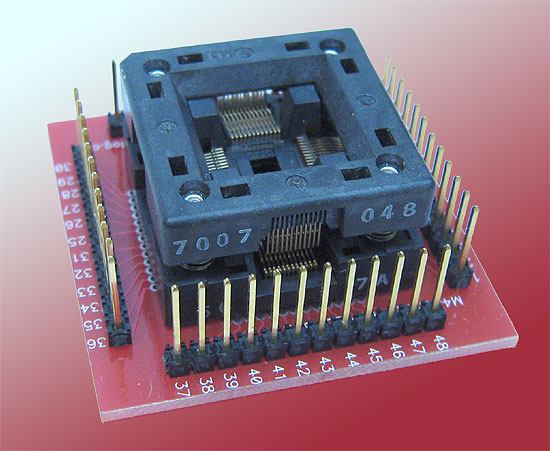

M48QFS20-QF-ZO-SD2 Open top 48 pin QFP Pin Monitor Adapter 48 pin QFP Pin Monitor Adapter $395.00


M64QFR39B-QF-ZL-SD Closed top 64 pin QFP Pin Monitor Adapter 64 pin QFP Pin Monitor Adapter
  • QFP Package Type
  • 64 Pins
  • 17.9 x 23.9mm Tip to Tip
  • 1. mm Pitch
  • Clamshell hinged lid ZIF Socket
$350.00
M64QFS20-QF-ZL-SD Closed top 64 pin QFP Pin Monitor Adapter 64 pin TQFP Pin Monitor Adapter
  • TQFP Package Type
  • 0.5mm (19.685 mil) pitch
  • Tip to Tip 12.0mm
  • Body width 10.0mm
  • Replacement ZIF socket is Yamaichi IC51-0644-807
  • Available additional surface mount base part number is 64QFS20-SD 644-807
  • Available additional surface mount base part number with alignment pins part number 64QFS20-SDA
  • Adapter vertical clearance 460 mils
  • For components such as PIC18F8620, PIC18F8621, PIC18F8622, PIC18F8627, PIC18F8680, PIC18F86J10, PIC18F86J11, PIC18F86J15, PIC18F86J16, PIC18F86J50, PIC18F86J55, PIC18F86J60, PIC18F86J65 PIC18F8720, PIC18F8722, PIC18F87J10, PIC18F87J11, PIC18F87J50, PIC18F87J60 PIC24FJ118GA108, PIC24FJ128GA008, PIC24FJ128GB108, PIC24FJ192GA108, PIC24FJ192GB108, PIC24FJ256GA108, PIC24FJ256GB108, PIC24FJ64GA008, PIC24FJ64GB108, PIC24FJ96GA008 dsPIC30F5013, dsPIC30F5016, dsPIC30F6010A, dsPIC30F6013A, dsPIC30F6014A, dsPIC33FJ128GP708, dsPIC33FJ128MC708, dsPIC33FJ64GP708, dsPIC33FJ64MC508
$395.00

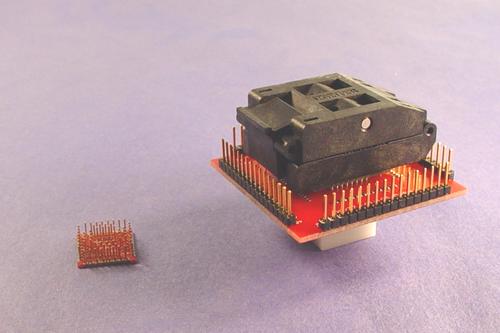

M64QFS31B-QF-ZL-SD Closed top 64 pin QFP Pin Monitor Adapter 64 pin QFP Pin Monitor Adapter
  • QFP Package Type
  • 64 Pins
  • 0.8mm pitch
  • Tip to Tip 17.9mm
  • Replacement ZIF socket is IC51-0644-824-2
  • Available additional surface mount base part number is 64QFS31B-SD
  • Available additional surface mount base part number with alignment pins part number 64QFS31B-SDA
  • Adapter vertical clearance 460 mils
$350.00


M80QFR31A-QF-ZL-SD Closed top 80 pin QFP Pin Monitor Adapter 80 pin QFP Pin Monitor Adapter
  • QFP Package Type
  • 80 Pins
  • 17.2 x 23.2mm Tip to Tip
  • .8 mm Pitch
  • Clamshell hinged lid ZIF Socket
$395.00
M80QFR31B-QF-ZL-SD Closed top 80 pin QFP Pin Monitor Adapter 80 pin QFP Pin Monitor Adapter
  • QFP Package Type
  • 80 Pins
  • 17.9 x 23.9mm Tip to Tip
  • 0.8 mm Pitch
  • Clamshell hinged lid ZIF Socket
$395.00
M80QFR31C-QF-ZL-SD Closed top 80 pin QFP Pin Monitor Adapter 80 pin QFP Pin Monitor Adapter
  • QFP Package Type
  • 80 Pins
  • 0.8mm pitch
  • Tip to Tip 17.6 x 23.6mm
  • Available additional surface mount base part number is 80QFR31-SD
  • Available additional surface mount base part number with alignment pins. Order no. 80QFR31-SDA
  • Replacement ZIF socket is IC51-0804-819-1
  • Adapter vertical clearance 462 mils
$395.00

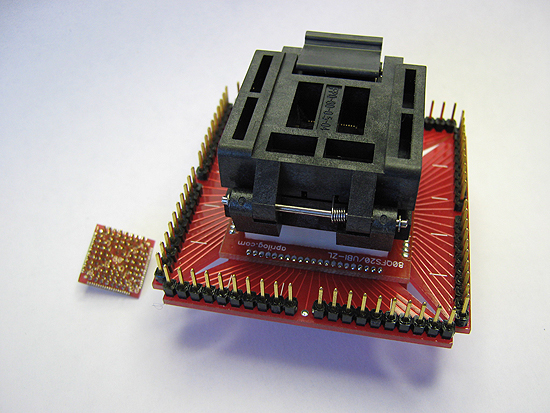

M80QFS20-QF-ZL-SD Closed top 80 pin QFP Pin Monitor Adapter 80 pin QFP Pin Monitor Adapter
  • TQFP Package Type
  • 80 Pins
  • 0.5mm (19.685 mil) pitch
  • IC Leads Tip to Tip 14.0mm
  • Available additional surface mount base part number is 80QFS20-SD
  • Available additional surface mount base part number with alignment pins part number 80QFS20-SDA
  • Replacement ZIF socket is IC51-0804-808
  • Adapter vertical clearance 460 mils
$435.00
M80QFS26A-QF-ZL-SD Closed top 80 pin QFP Pin Monitor Adapter 80 pin QFP Pin Monitor Adapter
  • QFP Package Type
  • 80 Pins
  • 17mmTip to Tip
  • .65 mm Pitch
  • Clamshell hinged lid ZIF Socket
$385.00
M80QFS26D-QF-ZL-SD Closed top 80 pin QFP Pin Monitor Adapter 80 pin QFP Pin Monitor Adapter
  • QFP Package Type
  • 80 Pins
  • 0.65mm pitch
  • IC leads Tip to Tip 17.3mm (677 mils)
  • Available additional surface mount base part number is 80QFS26D-SD
  • Available additional surface mount base part number with alignment pins part number 80QFS26D-SDA
  • Replacement ZIF socket is IC51-0804-956
  • Adapter vertical clearance 460 mils
$385.00


M100QFR26C-QF-ZL-SD Closed top 100 pin QFP Pin Monitor Adapter 100 pin QFP Pin Clamshell Socket Monitor Adapter
  • QFP Package Type
  • 100 Pins
  • 0.65mm (25.6 mil) pitch
  • Tip to Tip 17.6 x 23.6mm
  • Available additional surface mount base part number is 100QFR26-SD
  • Available additional surface mount base part number with alignment pins part number 100QFR26-SDA
  • Replacement ZIF socket is IC51-1004-814-2
  • Adapter vertical clearance 460 mils
$480.00

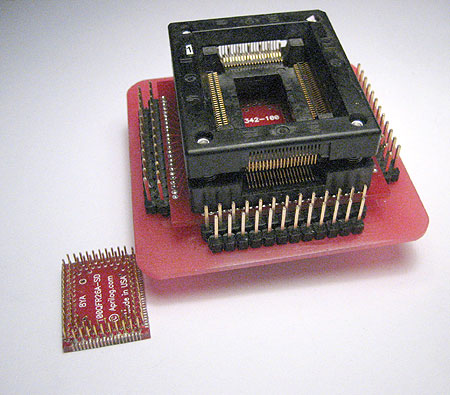

M100QFR26C-QF-ZO-SD Closed top 100 pin QFP Pin Monitor Adapter 100 pin QFP Open Top Socket Pin Monitor Adapter
  • QFP Package Type
  • 100 Pins
  • 14.0 x 20.0 IC Package body width
  • 17.2 x 23.2mm IC Leads Tip to tip
  • 0.65mm (25.6 mil)pitch
  • Available additional surface mount base part number is 100QFR26-SD
  • Replacement ZIF socket is 3342-100-6-07
  • Adapter vertical clearance 460 mils
$480.00

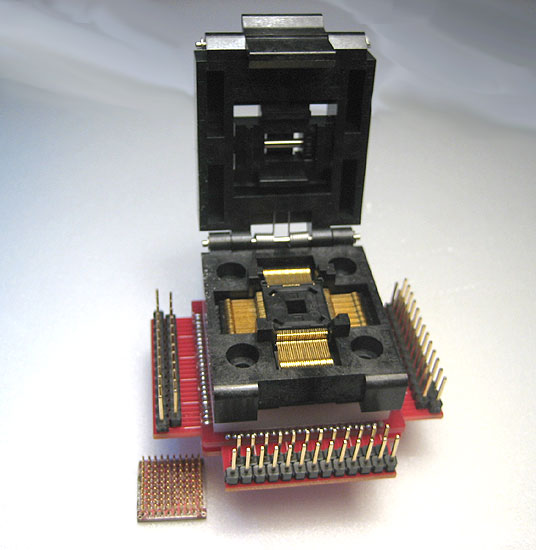

M100QFS16-QF-ZL-SD Open top 100 pin QFP Pin Monitor Adapter 100 pin QFP Pin Monitor Adapter
  • Closed top calamshell socket
  • QFP Square Package Type
  • 100 Pins
  • 12.0 x 12.0mm Square Package body width
  • 14.0 x 14.0mm Leads Tip to tip
  • 0.4mm Pitch device
  • Available additional surface mount base part number is 100QFS16-SD
  • Available additional surface mount base part number with alignment pins part number 100QFS16-SDA
  • Replacement ZIF socket is IC51-1004-1919-10
  • Adapter vertical clearance 460 mils
  • Common Applications
$520.00
M100QFS20-QF-ZO-SD Open top 100 pin QFP Pin Monitor Adapter 100 pin QFP Pin Monitor Adapter
  • TQFP Package Type
  • 100 Pins
  • 0.5mm (19.685 mil) pitch
  • Tip to Tip 16.0mm
  • Available additional surface mount base part number is 100QFS20-SD
  • Available additional surface mount base part number with alignment pins part number 100QFS20-SDA
  • Replacement ZIF socket is 3014-100-06-08
  • Adapter vertical clearance 460 mils
  • Common Applications PIC18C958, PIC18F96J60, PIC18F96J65, PIC18F97J60, PIC24FJ64GA010, PIC24FJ96GA010, PIC24FJ128GA010, PIC24FJ64GB110, PIC24FJ128GB110, PIC24FJ192GB110, PIC24FJ256GB110, PIC24FJ118GA110, PIC24FJ192GA110, PIC24FJ256GA110, PIC24HJ64GP210, PIC24HJ64GP510, PIC24HJ128GP210, PIC24HJ128GP510, PIC24HJ128GP310, PIC24HJ256GP210, PIC24HJ256GP610, PIC32MX320F128L, PIC32MX340F128L, PIC32MX360F256L, PIC32MX360F512L, PIC32MX440F128L, PIC32MX460F256L, PIC32MX460F512L, dsPIC33FJ64GP310, dsPIC33FJ64GP710, dsPIC33FJ128GP310, dsPIC33FJ128GP710, dsPIC33FJ256GP510, dsPIC33FJ256GP710, dsPIC33FJ64MC510, dsPIC33FJ64MC710, dsPIC33FJ128MC510, dsPIC33FJ128MC710
$488.00


M160QFS26A-QF-ZL-SD Closed top 160 pin QFP Pin Monitor Adapter 160 pin QFP Pin Monitor Adapter
  • QFP Package Type
  • 160 Pins
  • 0.65mm pitch
  • Tip to Tip 31.2 x 31.2mm
  • Available additional surface mount base part number is 160QFS26-SD
  • Available additional surface mount base part number with alignment pins part number 160QFS26-SDA
  • Replacement ZIF socket is IC51-1604-845-4
  • Adapter vertical clearance 460 mils
$472.00

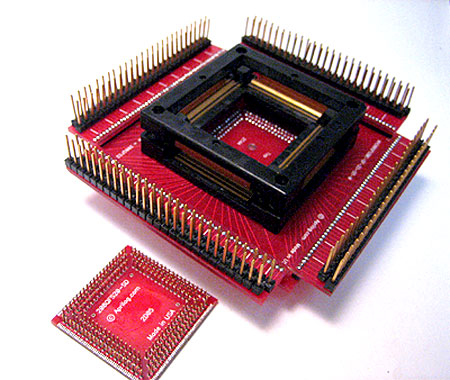

M208QFS20-QF-ZO-SD Open top 208 pin QFP surface mount Pin Monitor Adapter 208 Pin QFP surface mount Pin Monitor Adapter
  • QFP Package Type
  • 208 Pins
  • 0.5mm (19.685 mil) pitch pitch
  • Tip to Tip 1.19 inches square
  • Available additional surface mount base part number is 208QFS20-SD
  • Available additional surface mount base part number with alignment pins part number 208QFS20-SDA
  • Replacement ZIF socket isAdapter vertical clearance 460 mils
$940.00
