Pin Receptacle to Surface Mount Component Site Adapters



This is a two part adapter kit providing a way to temporarily connect a PGA pin receptacles to PCB surface mount pads on a circuit card under test. The bottom part, (SMT base), is surface mounted to the PCB and replaces the component normally soldered to the card solder pads. The top part plugs on to the SMT base and has PGA receptacles on top.
Adapters are listed in ascending adapter top PGA pin count order.

28 Pins to Surface Mount 44 Pins to Surface Mount 52 Pins to Surface Mount 68 Pins to Surface Mount 84 Pins to Surface Mount


Part Number   28 Pin Receptacle Top    Price Shopping Cart
28D6-SO30-SD 28 pin DIP to 28 SO pads This adapter is wired one to one 28 pin DIP to 28 SO pads This adapter is wired one to one.
  • 28 pin DIP to 28 SO pads
  • Wired 1 to 1
  • 1.27mm (50 mil) pitch
  • Component footprint body width 300 mils
  • Spare SMT base is part number 28SO30-SD
  • The DIP top plugs on toe the 28SO30-SD surface mount base.
  • Vertical clearance 400 mils
$110.00

Part Number   44 Pin Receptacle Top    Price Shopping Cart
44PG-QFS31-SD S44 Pin PGA to QFP TQFP pads. Commonly used by Nohau (ICE Technology) in-circuit emulators to connect to TQFP pads. For all 80C51 (inclusive of 80C251 & 80C51XA) microcontrollers in 44-lead TQFP package. This adapter is wired one to one 44 Pin PGA to QFP TQFP pads. Commonly used by Nohau (ICE Technology) in-circuit emulators to connect to TQFP pads. For all 80C51 (inclusive of 80C251 & 80C51XA) microcontrollers in 44-lead TQFP package. This adapter is wired one to one.
  • PGA to QFP TQFP pads
  • 44 Pins
  • 0.8 mm Pitch SMT pads
  • 12.0 - 12.6 mm tip to tip SMT package
  • Spare SMT base is part number 44QFS31-SD
  • Vertical clearance 400 mils
$180.00

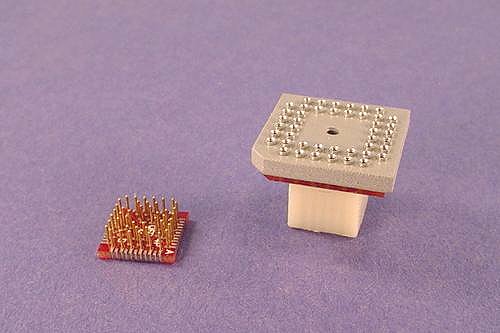

44QFS31B-SD   44 Pin PGA to QFP TQFP pads. Commonly used by Nohau (ICE Technology) in-circuit emulators to connect to TQFP pads. For all 80C51 (inclusive of 80C251 & 80C51XA) microcontrollers in 44-lead TQFP package. This adapter is wired one to one 44 Pin PGA to QFP TQFP pads. Commonly used by Nohau (ICE Technology)in-circuit emulators to connect to TQFP pads. For all 80C51 (inclusive of 80C251 & 80C51XA) microcontrollers in 44-lead TQFP package. This adapter is wired one to one.
  • PGA to QFP TQFP pads
  • 44 Pins
  • 0.8 mm Pitch SMT pads
  • 13.2 mm tip to tip SMT package
  • Spare SMT base is part number 44QFS31B-SD
  • Vertical clearance 400 mils
$180.00

Part Number   52 Pin Receptacle Top    Price Shopping Cart
52PG-44QFS31-SD-80C530-80C520   52 Pin PGA to 44 QFP pads. Commonly used by Nohau (ICE Technology) in-circuit emulators to connect the in-circuit emulation pod for 80C530 to circiut under test 80C520 QFP pads. 52 Pin PGA to 44 QFP pads. Commonly used by Nohau (ICE Technology) in-circuit emulators to connect the in-circuit emulation pod for 80C530 to circiut under test 80C520 QFP pads.
  • 52 Pin receptacle PGA to 44 Pad QFP TQFP
  • 0.8 mm Pitch SMT pads
  • Spare SMT base is part number 44QFS31-SD
  • Vertical clearance 400 mils
$230.00
52PG-64QF20-SD-AT89C5131 52 Pin PGA to 64 TQFP pads. Commonly used by Nohau (ICE Technology) in-circuit emulators to connect the in-circuit emulation pod for 80C530 to circiut under test 80C520 QFP pads. 52 Pin PGA to 64 TQFP pads. Commonly used by Nohau (ICE Technology) in-circuit emulators to connect the in-circuit pod to an Atmel AT89C5131 microcontroller 64 lead TQFP pads.
  • 52 Pin receptacle PGA to 64 Pad QFP TQFP
  • 0.5 mm Pitch SMT pads
  • 12.0 mm tip to tip SMT package
  • Spare SMT base is part number 64QFS20-SD
  • Vertical clearance 400 mils
$296.00
52PG-64QFS31-SD-68HC11   52 Pin PGA to 64 TQFP pads. Commonly used by Nohau (ICE Technology) in-circuit emulators to connect the in-circuit emulation pod for 80C530 to circiut under test 80C520 QFP pads. 52 Pin PGA to 64 TQFP pads. Commonly used by Nohau (ICE Technology) in-circuit emulators to connect the in-circuit pod to Motorola / Freescale 68HC11E9 microcontroller 64 lead TQFP pads. $260.00

Part Number   68 Pin Receptacle Top    Price Shopping Cart

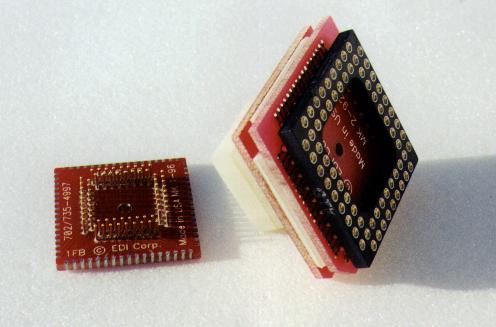

68PG-LC-SD   68 Pin PGA to 68 PLCC pads adapter. 68 Pin PGA to 68 PLCC pads. Commonly used by Nohau (ICE Technology)in-circuit emulators to connect the in-circuit pod to Motorola / Freescale PLCC microcontroller 68 PLCC pads.
  • 68 Pin receptacle PGA to Motorola / Freescale 68PLCC pads
  • PLCC 0.990 square package
  • Pitch 0.050 (1.27mm)
  • Spare SMT base is part number 68LC-SD
  • Vertical clearance 400 mils
https://www.aprilog.com/Qfp_Adapter.html 		$270.00
68PG-64QFS31-SD-68HC11F1   68 Pin PGA to 64 TQFP pads. Commonly used by Nohau (ICE Technology)in-circuit emulators to connect the in-circuit pod to Motorola / Freescale 68HC11F1 microcontroller 64 TQFP pads. $270.00

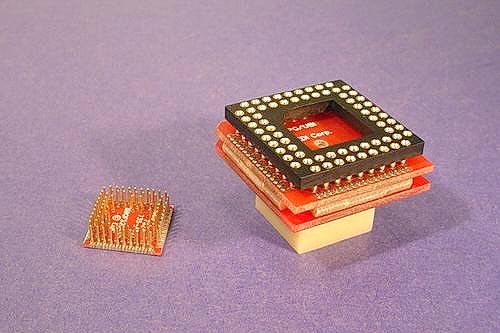

68PG-80QFS26-SD-68HC11F1 68 Pin PGA to 80 TQFP pads. Commonly used by Nohau (ICE Technology) in-circuit emulators to connect the in-circuit emulation pod for 80C530 to circiut under test 80C520 QFP pads. 68 Pin PGA to 80 TQFP pads. Commonly used by Nohau (ICE Technology)in-circuit emulators to connect the in-circuit pod to Motorola / Freescale 68HC11F1 microcontroller 80 lead TQFP pads.
  • 68 Pin receptacle PGA to Motorola / Freescale 80 Pad QFP TQFP
  • 0.65 mm Pitch SMT pads
  • Spare SMT base is part number 80QFS26-SD
  • Vertical clearance 400 mils
$345.00
68PG-80QFS26-SD-68HC11KA 68 Pin PGA to 80 TQFP pads. Commonly used by Nohau (ICE Technology) in-circuit emulators to connect the in-circuit emulation pod for 80C530 to circiut under test 80C520 QFP pads. 68 Pin PGA to 80 TQFP pads. Commonly used by Nohau (ICE Technology)in-circuit emulators to connect the in-circuit pod to Motorola / Freescale 68HC11KA & 68HC11KS microcontrollers 80 lead TQFP pads.
  • 68 Pin receptacle PGA to Motorola / Freescale 80 Pad QFP TQFP
  • 0.65 mm Pitch SMT pads
  • Spare SMT base is part number 80QFS26-SD
  • Vertical clearance 400 mils
$345.00

Part Number   84 Pin Receptacle Top       Price Shopping Cart
84PG-80QFS26-SD-68HC11K4   84 Pin PGA to 80 lead QFP pads. Commonly used by Nohau (ICE Technology) in-circuit emulators to connect the in-circuit emulation pod for 80C530 to circiut under test 80C520 QFP pads. 84 Pin PGA to 80 lead QFP pads. Commonly used by Nohau (ICE Technology)in-circuit emulators to connect the in-circuit pod to Motorola / Freescale 68HC11K4 microcontroller 80 lead TQFP pads.
  • 84 Pin receptacle PGA to Motorola / Freescale 80 Pad QFP TQFP
  • 0.65 mm Pitch SMT pads
  • Spare SMT base is part number 80QFS26-SD
  • Vertical clearance 400 mils
$360.00
84PG-80QFS26-SD-80C517A-515A   84 Pin PGA to 80 lead QFP pads. Commonly used by Nohau (ICE Technology)</a href>in-circuit emulators to connect the in-circuit pod to Infineon 80C515A and 80C535A microcontrollers 82 lead QFP pads. 84 Pin PGA to 80 lead QFP pads. Commonly used by Nohau (ICE Technology)in-circuit emulators to connect the in-circuit pod to Infineon 80C515A and 80C535A microcontrollers 82 lead QFP pads.
  • 84 Pin receptacle PGA to Infineon 80 Pad QFP
  • 0.65 mm Pitch SMT pads
  • Spare SMT base is part number 80QFS26-SD
  • Vertical clearance 400 mils
$360.00
84PG-112QFS26-SD-68HC11PH8   84 Pin PGA to 112 TQFP pads. Commonly used by Nohau (ICE Technology)in-circuit emulators to connect the in-circuit pod to Motorola / Freescale 68HC11PH8 microcontroller 112 lead TQFP pads. $360.00

<
