Female PGA In-Circuit Emulator Adapters

This is a two part adapter kit providing a way to temporarily connect an in-circuit emulator to a component socket or surface mount pads on a circuit card under test.
For SMT parts, the adapter SMT base is soldered to the PCB replacing the component normally soldered on that PCB site. The top of the adapter plugs on to the SMT base and has an emulator PGA female receptacles on top.

Adapters are listed in ascending order by emulator connection pin count.

44 52 68
84 132


Part Number   44    Price Shopping Cart
44PG-40D-HC11D3   44 Pin PGA to DIP socket. Commonly used by Nohau (ICE Technology) in-circuit and other Motorola/Freescale 68HC11D3 series emulators to connect to a standard 40 pin DIP socket. 44 Pin PGA to DIP socket. Commonly used by Nohau (ICE Technology) in-circuit and other Motorola/Freescale 68HC11D3 series emulators to connect to a standard 40 pin DIP socket.
  • 44 PGA emulator pins to 40 pin DIP socket
  • The PGA pin receptacle pattern is compatible with common 44 pin PLCC through hole sockets.
  • PGA (PLCC) pins 1, 12, 23, 34 are not connected to the DIP pins
  • PGA (PLCC) Pins 24, 26, 31 are not connected.
$55.00
44PG-40D-S-8051   44 Pin PGA to DIP socket. Commonly used by Nohau (ICE Technology) in-circuit and other 80C51 series emulators to connect to a standard 44 pin DIP socket. For all 80C51 (inclusive of 80C251 & 80C51XA) microcontrollers in 44 pin DIP package. 44 Pin PGA to DIP socket. Commonly used by Nohau (ICE Technology) in-circuit and other 80C51 series emulators to connect to a standard 40 pin DIP socket. For all 80C51 (inclusive of 80C251 & 80C51XA) microcontrollers in 40 pin DIP package.
  • 44 PGA emulator pins to 40 pin DIP socket
  • The PGA pin receptacle pattern is compatible with common 44 pin PLCC through hole sockets.
  • PGA (PLCC) pins 1, 12, 23, 34 are not connected to the DIP pins
$55.00
44PG-40D-80C550   44 Pin PGA to DIP socket. Commonly used by Nohau (ICE Technology) in-circuit and other 80C550 in-circuit emulators to connect to a standard 40 pin DIP socket. For all 80C550 microcontrollers in 40 pin DIP package. 44 Pin PGA to DIP socket. Commonly used by Nohau (ICE Technology) in-circuit and other 80C550 in-circuit emulators to connect to a standard 40 pin DIP socket. For all 80C550 microcontrollers in 40 pin DIP package.
  • 44 PGA emulator pins to 40 pin DIP socket
  • The PGA pin receptacle pattern is compatible with common 44 pin PLCC through hole sockets.
  • PGA (PLCC) pins 11 and 12 are not connected to the DIP pins
  • PGA (PLCC) Pin 1 is connected to pin 2, and PLCC pin 3 is connected to pin 4.
$55.00
44PG-LC-SD 44 Pin PGA to standard PLCC or LC pads. Commonly used by Nohau (ICE Technology) in-circuit emulators to connect to surface mount PLCC pads. For all 80C51 (inclusive of 80C251 & 80C51XA) microcontrollers in 44-lead PLCC package. This adapter is wired one to one. The PGA pin receptacle pattern is compatible with common 44 pin PLCC through hole sockets. 44 Pin PGA to standard PLCC or LC pads. Commonly used by Nohau (ICE Technology) in-circuit emulators to connect to surface mount PLCC pads. For all 80C51 (inclusive of 80C251 & 80C51XA) microcontrollers in 44-lead PLCC package. This adapter is wired one to one. The PGA pin receptacle pattern is compatible with common 44 pin PLCC through hole sockets.
  • PGA to QFP TQFP pads
  • 44 Pins
  • 0.8 mm Pitch SMT pads
  • 16.38mm (.645 inch) tip to tip PLCC 44 package
  • Spare SMT base is part number 44LC-SD
  • Vertical clearance 11.73mm (0.463 inch)
$180.00
44PG-QFS31-SD 44 Pin PGA to QFP TQFP pads. Commonly used by Nohau (ICE Technology) in-circuit emulators to connect to TQFP pads. For all 80C51 (inclusive of 80C251 & 80C51XA) microcontrollers in 44-lead TQFP package. This adapter is wired one to one. 44 Pin PGA to QFP TQFP pads. Commonly used by Nohau (ICE Technology) in-circuit emulators to connect to TQFP pads. For all 80C51 (inclusive of 80C251 & 80C51XA) microcontrollers in 44-lead TQFP package. This adapter is wired one to one.
  • PGA to QFP TQFP pads
  • 44 Pins
  • 0.8 mm Pitch SMT pads
  • 12.0 - 12.6 mm tip to tip SMT package
  • Spare SMT base is part number 44QFS31-SD
  • Vertical clearance 11.73mm (0.463 inch)
$180.00
44QFS31B-SD   44 Pin PGA to QFP TQFP pads. Commonly used by Nohau (ICE Technology) in-circuit emulators to connect to TQFP pads. For all 80C51 (inclusive of 80C251 & 80C51XA) microcontrollers in 44-lead TQFP package. This adapter is wired one to one. 44 Pin PGA to QFP TQFP pads. Commonly used by Nohau (ICE Technology)in-circuit emulators to connect to TQFP pads. For all 80C51 (inclusive of 80C251 & 80C51XA) microcontrollers in 44-lead TQFP package. This adapter is wired one to one.
  • PGA to QFP TQFP pads
  • 44 Pins
  • 0.8 mm Pitch SMT pads
  • 13.2 mm tip to tip SMT package
  • Spare SMT base is part number 44QFS31B-SD
  • Vertical clearance 11.73mm (0.463 inch)
$180.00
EL-PG44-PG44 Works with all 44 pin PGA adapters. Elevator adapter provides a 50.8mm (2 inch) clearance from board under test. 44 Pin PGA female receptacles to male pins. Works with all 44 pin PGA adapters. Elevator adapter provides a 50.8mm (2 inch) clearance from board under test. 44 Pin PGA female receptacles to male pins.
  • 50.8mm (2 inch) Elevator adapter
  • PGA 44 female receptacles to 44 PGA male pins
$180.00

Part Number   52    Price Shopping Cart
52PG-44QFS31-SD-80C530-80C520 52 Pin PGA to 44 QFP pads. Commonly used by Nohau (ICE Technology) in-circuit emulators to connect the in-circuit emulation pod for 80C530 to circiut under test 80C520 QFP pads. 52 Pin PGA to 44 QFP pads. Commonly used by Nohau (ICE Technology) in-circuit emulators to connect the in-circuit emulation pod for 80C530 to circiut under test 80C520 QFP pads.
  • 52 Pin receptacle PGA to 44 Pad QFP TQFP
  • 0.8 mm Pitch SMT pads
  • Spare SMT base is part number 44QFS31-SD
  • Vertical clearance 11.73mm (0.463 inch)
$230.00
52PG-64QF20-SD-AT89C5131 52 Pin PGA to 64 TQFP pads. Commonly used by Nohau (ICE Technology) in-circuit emulators to connect the in-circuit pod to an Atmel AT89C5131 microcontroller 64 lead TQFP pads. 52 Pin PGA to 64 TQFP pads. Commonly used by Nohau (ICE Technology) in-circuit emulators to connect the in-circuit pod to an Atmel AT89C5131 microcontroller 64 lead TQFP pads.
  • 52 Pin receptacle PGA to 64 Pad QFP TQFP
  • 0.5 mm Pitch SMT pads
  • 12.0 mm tip to tip SMT package
  • Spare SMT base is part number 64QFS20-SD
  • Vertical clearance 11.73mm (0.463 inch)
$296.00
52PG-64QFS31-SD-68HC11 52 Pin PGA to 64 TQFP pads. Commonly used by Nohau (ICE Technology) in-circuit emulators to connect the in-circuit pod to Motorola / Freescale 68HC11E9 microcontroller 64 lead TQFP pads. 52 Pin PGA to 64 TQFP pads. Commonly used by Nohau (ICE Technology) in-circuit emulators to connect the in-circuit pod to Motorola / Freescale 68HC11E9 microcontroller 64 lead TQFP pads.
  • 52 Pin receptacle PGA to Motorola / Freescale 64 Pad QFP TQFP
  • 0.8 mm Pitch SMT pads
  • Spare SMT base is part number64QFS31-SD
  • Vertical clearance 11.73mm (0.463 inch)
$260.00

Part Number   68    Price Shopping Cart

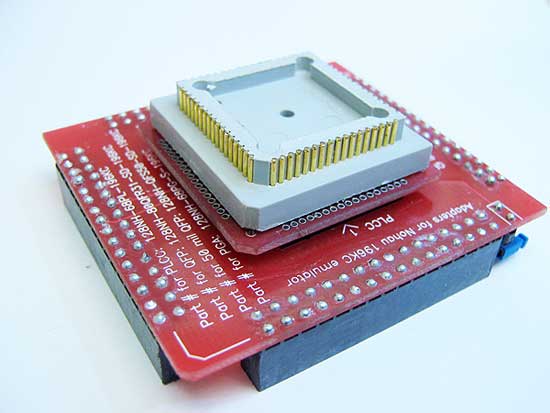

EMUL196-KC-ADP-68PLCC 68 Pin PGA to 64 TQFP pads. Commonly used by Nohau (ICE Technology) in-circuit emulators to connect the in-circuit pod to 80C196KC or KD microcontroller <b> 68 pin PLCC socket 68 Pin PGA to 64 TQFP pads. Commonly used by Nohau (ICE Technology)in-circuit emulators to connect the in-circuit pod to 80C196KC or KD microcontroller 68 pin PLCC socket
  • 68 Pin PLCC for Nohau POD-96KC/KD in-circuit pod
  • Vertical clearance 11.73mm (0.463 inch)
$395.00
68PG-64QFS20-89C51ED 68 Pin PGA to 64 TQFP pads. Commonly used by Nohau (ICE Technology) in-circuit emulators to connect the in-circuit pod to Atmel 8x51ED and 8x51RD & microcontroller <b> 64 TQFP pads. 68 Pin PGA to 64 TQFP pads. Commonly used by Nohau (ICE Technology)in-circuit emulators to connect the in-circuit pod to Atmel 8x51ED and 8x51RD & microcontroller 64 TQFP pads.
  • 68 Pin receptacle PGA to Atmel 64 Pad QFP TQFP
  • 0.5 mm Pitch SMT pads
  • Spare SMT base is part number 64QFS20-SD
  • Vertical clearance 11.73mm (0.463 inch)
$270.00
68PG-64QFS31-SD-68HC11F1   68 Pin PGA to 64 TQFP pads. Commonly used by Nohau (ICE Technology)in-circuit emulators to connect the in-circuit pod to Motorola / Freescale 68HC11F1 microcontroller 64 TQFP pads.
  • 68 Pin receptacle PGA to Motorola / Freescale 64 Pad QFP TQFP
  • 0.8 mm Pitch SMT pads
  • Spare SMT base is part number 68QFS31-SD
  • Vertical clearance 11.73mm (0.463 inch)
$270.00
68PG-80QFS26-SD-68HC11F1 68 Pin PGA to 80 TQFP pads. Commonly used by Nohau (ICE Technology) in-circuit emulators to connect the in-circuit pod to Motorola / Freescale 68HC11F1 microcontroller 80 lead TQFP pads. 68 Pin PGA to 80 TQFP pads. Commonly used by Nohau (ICE Technology)in-circuit emulators to connect the in-circuit pod to Motorola / Freescale 68HC11F1 microcontroller 80 lead TQFP pads.
  • 68 Pin receptacle PGA to Motorola / Freescale 80 Pad QFP TQFP
  • 0.65 mm Pitch SMT pads
  • Spare SMT base is part number 80QFS26-SD
  • Vertical clearance 11.73mm (0.463 inch)
$345.00
68PG-80QFS26-SD-68HC11KA 68 Pin PGA to 80 TQFP pads. Commonly used by Nohau (ICE Technology) in-circuit emulators to connect the in-circuit pod to Motorola / Freescale </a href> 68HC11KA & 68HC11KS microcontrollers 80 lead TQFP pads. 68 Pin PGA to 80 TQFP pads. Commonly used by Nohau (ICE Technology)in-circuit emulators to connect the in-circuit pod to Motorola / Freescale 68HC11KA & 68HC11KS microcontrollers 80 lead TQFP pads.
  • 68 Pin receptacle PGA to Motorola / Freescale 80 Pad QFP TQFP
  • 0.65 mm Pitch SMT pads
  • Spare SMT base is part number 80QFS26-SD
  • Vertical clearance 11.73mm (0.463 inch)
$345.00

Part Number   84       Price Shopping Cart
84PG-80QFS26-SD-68HC11K4   84 Pin PGA to 80 lead QFP pads. Commonly used by Nohau (ICE Technology) in-circuit emulators to connect the in-circuit pod to Motorola / Freescale 68HC11K4 microcontroller 80 lead TQFP pads. 84 Pin PGA to 80 lead QFP pads. Commonly used by Nohau (ICE Technology)in-circuit emulators to connect the in-circuit pod to Motorola / Freescale 68HC11K4 microcontroller 80 lead TQFP pads.
  • 84 Pin receptacle PGA to Motorola / Freescale 80 Pad QFP TQFP
  • 0.65 mm Pitch SMT pads
  • Spare SMT base is part number 80QFS26-SD
  • Vertical clearance 11.73mm (0.463 inch)
$360.00
84PG-80QFS26-SD-80C517A-515A 84 Pin PGA to 80 lead QFP pads. Commonly used by Nohau (ICE Technology) in-circuit emulators to connect the in-circuit pod to Infineon 80C515A and 80C535A microcontrollers 82 lead QFP pads. 84 Pin PGA to 80 lead QFP pads. Commonly used by Nohau (ICE Technology)in-circuit emulators to connect the in-circuit pod to Infineon 80C515A and 80C535A microcontrollers 82 lead QFP pads.
  • 84 Pin receptacle PGA to Infineon 80 Pad QFP
  • 0.65 mm Pitch SMT pads
  • Spare SMT base is part number 80QFS26-SD
  • Vertical clearance 11.73mm (0.463 inch)
$360.00
84PG-112QFS26-SD-68HC11PH8   84 Pin PGA to 112 TQFP pads. Commonly used by Nohau (ICE Technology)in-circuit emulators to connect the in-circuit pod to Motorola / Freescale 68HC11PH8 microcontroller 112 lead TQFP pads.
  • 84 Pin PGA receptacle to Motorola / Freescale 112 Pad QFP TQFP
  • 0.65 mm Pitch SMT pads
  • Spare SMT base is part number 112QFS26-SD
  • Vertical clearance 11.73mm (0.463 inch)
$360.00

Part Number   132    Price Shopping Cart
132NH-QFS132-SD   68332 Square Quad Flat Pack 132 pin surface mount device adapter. Pitch is 0.025 inches, 0.65mm. Tip to tip size is 1.10 inches, 28mm. Standard form works with most emulators. 68332 Square Quad Flat Pack 132 pin surface mount device adapter. Pitch is 0.025 inches, 0.65mm. Tip to tip size is 1.10 inches, 28mm. Standard form works with most emulators.
  • 132 SQFP adaper
  • 0.65mm, 0.025 inches pitch SMT pads
  • Spare SMT base is part number 132NH-QF1S32-SD
  • Vertical clearance 11.73mm (0.463 inch)
$615.00
