We manufacture & stock IC adapters for QFP, TQFP, QFN, MLF, SOIC, SSOP, TSSOP, TSOP, VSOP, SOP, PLCC, PGA & SOT packages and stock test sockets by Enplas, Plastronics, Sensata (Wells-CTI) and Yamaichi.

Aprilog provides emulator adapters for Microchip PICs, 80C51, ST11, Freescale 68HC microcontrollers, programming adapters, logic analyzer adapters, breadboarding & prototyping adapters, debugging pin monitor & signal isolation adapters, correction & IC footprint upgrade adapters, and ZIF socket to SMT pads adapters. We also build custom adapters to your specificaions.

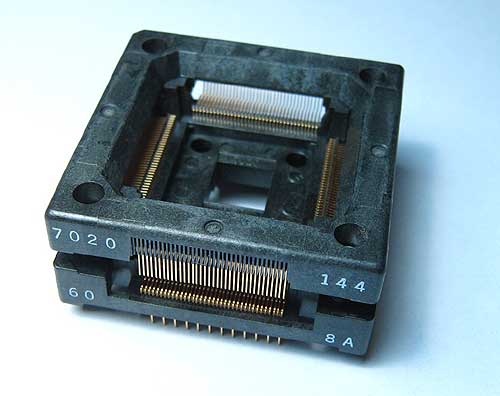

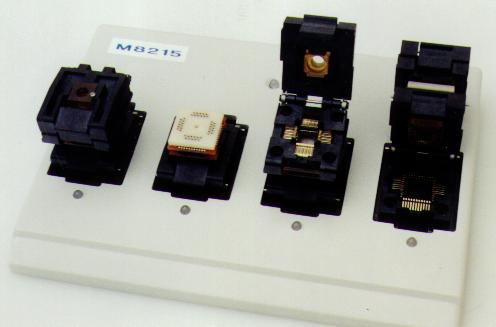

Test Sockets

IC burn in and test sockets, for TQFP, QFN, MLF,
SOIC, SSOP, TSSOP, TSOP, VSOP, SOP, PLCC components.

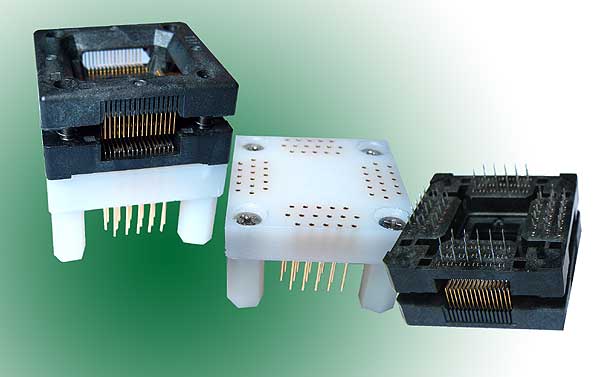

ZIF Test Socket Saver

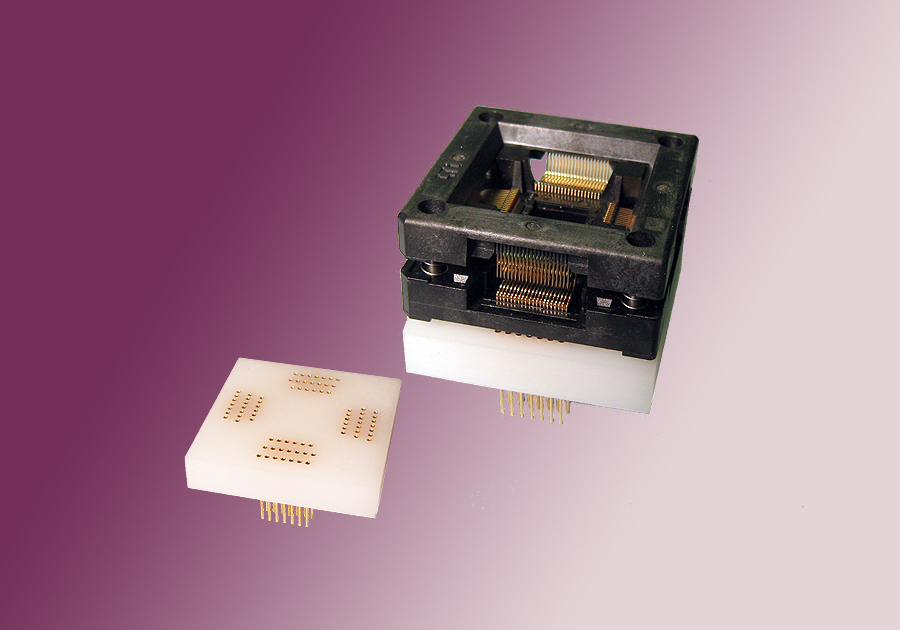

Pin Receptacles

IC burn in and test sockets pin receptacles save money letting you re-use or easily move test sockets from one board to another.

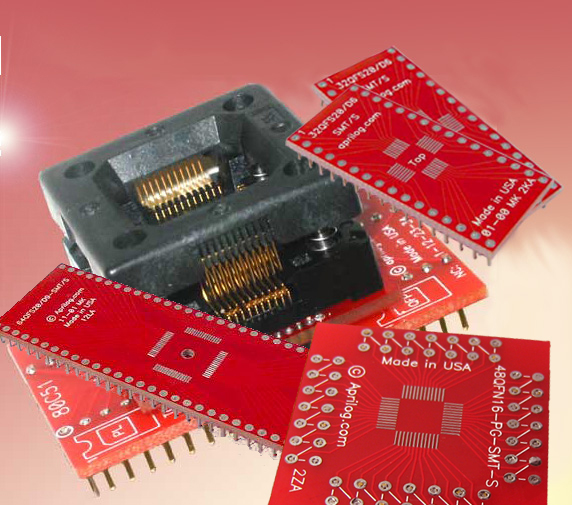

ZIF Sockets to SMT Pads

Test socket to board adapters. Test adapters with ZIF or clamshell test sockets that provide connection to TQFP, QFN, MLF, SOIC, SSOP, TSSOP, TSOP, VSOP, SOP, PLCC printed circuit card sites.
Switched Signal Isolator
Pin Monitor Adapters

Adapters to switch all component connections on or off, and have test point pins on both sides of each switch. Testing adapters with ZIF or clamshell test sockets that provide connection to TQFP, QFN, MLF, SOIC, SSOP, TSSOP, TSOP, VSOP, SOP, PLCC printed circuit card sites.
Test Pin Monitor
Logic Analyzer Adapters

Logic analyser test adapters that have signal connection pins for each IC pin.  These adapters are mounted with ZIF or clamshell test sockets that provide connection to TQFP, QFN, MLF, SOIC, SSOP, TSSOP, TSOP, VSOP, SOP, PLCC, and prototype 0.1 inch spaced printed circuit card sites.
Breadboarding Adapters
SMT Devices & Sockets

Breadboard test adapters with test sockets or a component solder site footprint.  These adapters are for surface mounted parts or mounted with ZIF or clamshell test sockets that provide connection to TQFP, QFN, MLF, SOIC, SSOP, TSSOP, TSOP, VSOP, SOP, PLCC, and prototype 0.1 inch spaced printed circuit card sites. Or, a simple board with pins on 100 mil centers, and a solder mounting site for your component. Quantity prices are available.

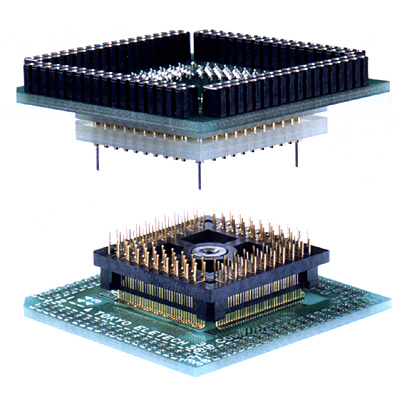

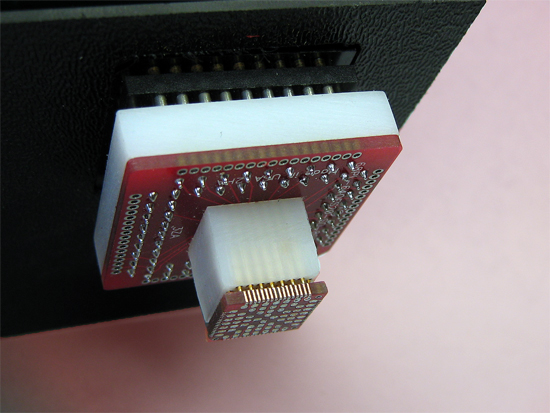

In-Circuit Emulator Adapters

Emulator in-circuit pod to unit under test adapters.

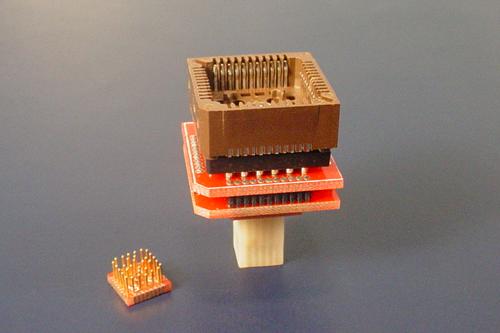

PLCC Sockets to SMT Pads

PLCC socket to surface mount footprint adapters.
PGA Adapters to SMT Pads

Female pin receptacles to surface mount footprint adapters.

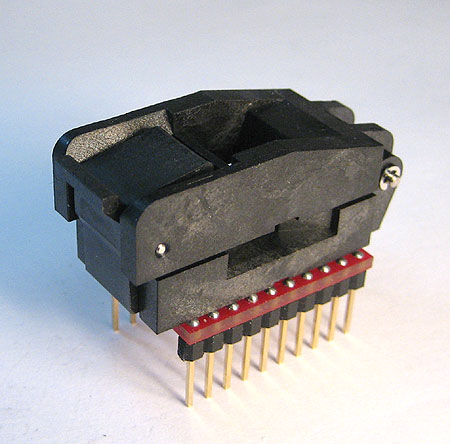

Programming Adapters

Adapters that provide DIP programmer socket to component with signal-to-signal connections for programming.

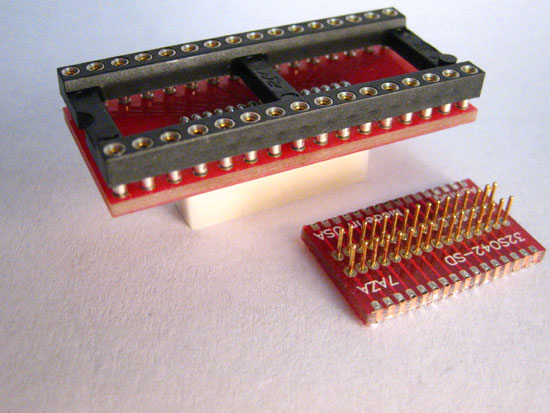

Pitch Converters
IC Footprint Conversion Adapters

Component footprint adapters referred to as chip changers or interposers. Provide a way to mount newer IC packages to older printed circuit cards. Quantity pricing is available.

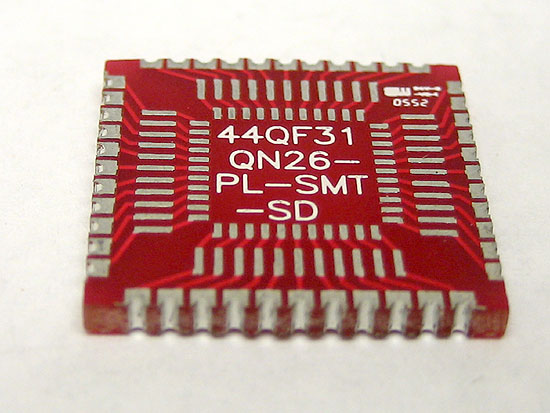

SMT Component Carrier
PCB Plug-On Adapters

SMT Component carriers have surface mount pads on one side and female pin receptacles on the other so that surface mount components can be quickly and easily changed on a circuit board without soldering.

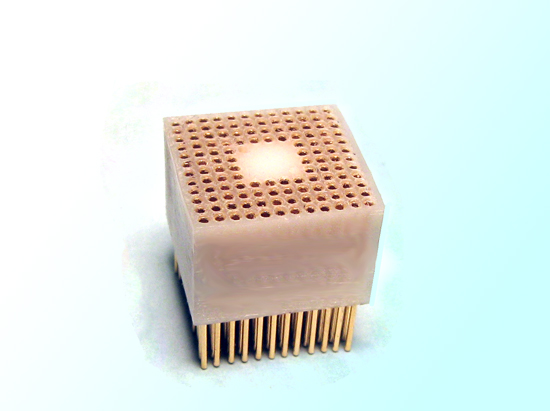

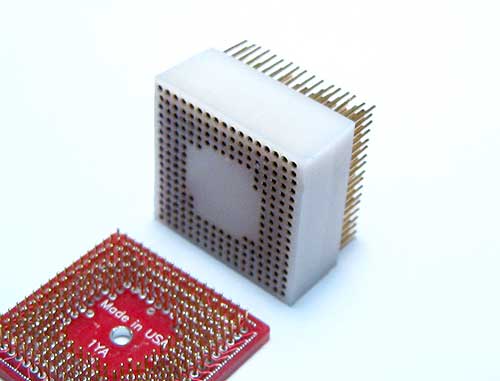

Surface Mount Base Connectors

Base connectors mate with SMT pad adapter bases. Provides a way to mount user circuit boards to IC surface mount footprint.  Use with SMT Pad adapter base.

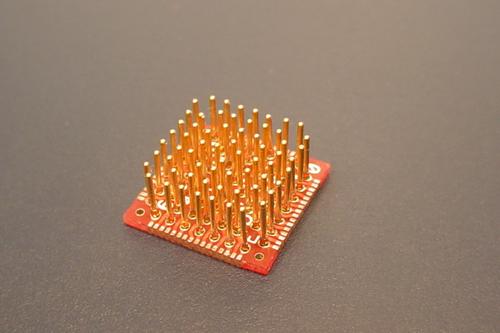

SMT Pad Adapter Bases

SMT pad adapter bases solder to surface mount component footprints, and provide male pin connections for adapters and user circuit boards.

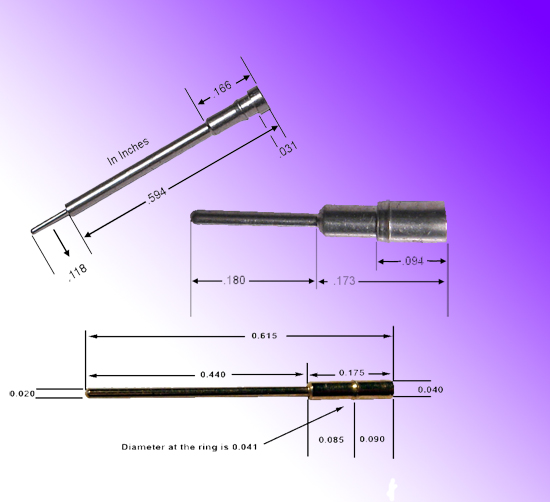

Pin Receptacles and PCB Pins
